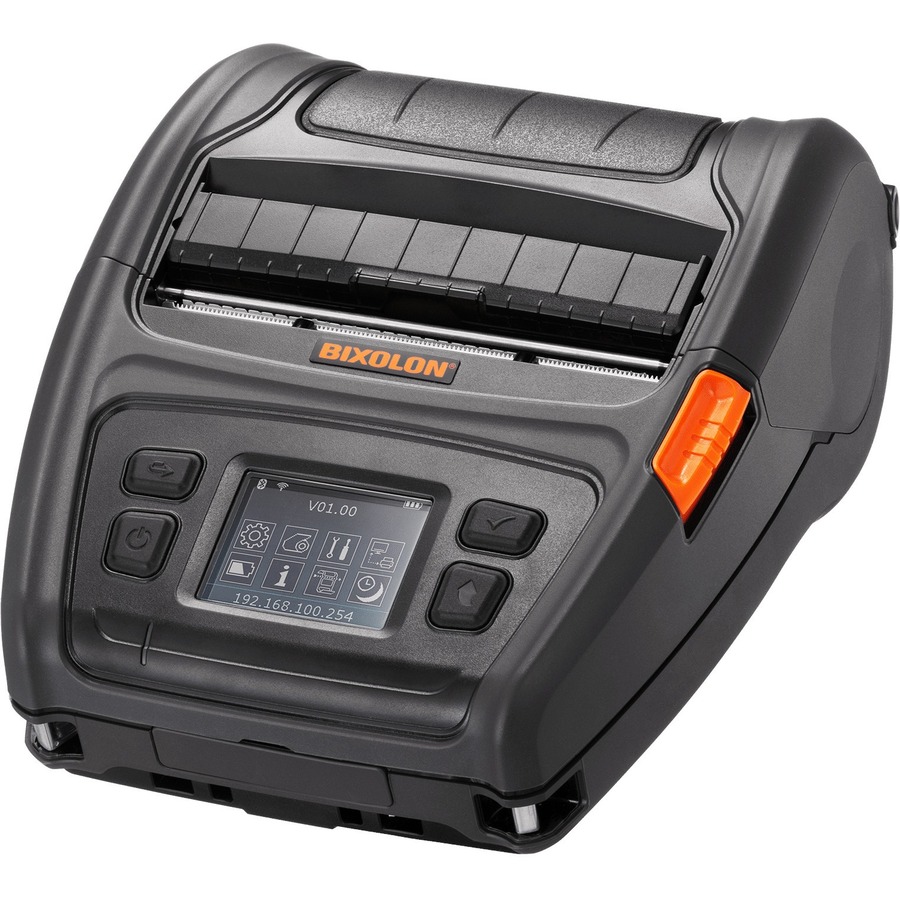

Bixolon XM7-40 – Barcode Label Printer

Part Number: XM7-40WK

Model: XM7-40

$975.71

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Label Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

5 in/s

Maximum Print Resolution (dpi)

203

Product Description:

Barcode Label Printers, Bixolon XM7-40, 4", Black, USB, Wi-Fi, 127mm/Sec Print Speed, Tear Bar, 104mm Paper Width, Up To 66mm DIA, TFT LCD, Transmissive Sensor

Explore all Bixolon XM7-40 Barcode Label Printers

Add to Quote

Overview

Full specifications (PDF)

Bixolon XM7-40 Barcode Label Printer Model Overview

The Bixolon XM7 Series is constructed with industrial-grade durability and features. With its quick printing speed of up to 5 ips for both liner and linerless label media, the XM7-40 equips the field labor. With both a standard and an optional smart battery, it is possible to manage the status and life cycle of the battery effectively while also offering the greatest possible connectivity options by supporting Bluetooth and WLAN at the same time. For the most demanding indoor and outdoor commercial applications in the postal, warehousing, or healthcare sectors, the XM7-40 provides the utmost robustness, potent 4-inch (112mm) label printing capabilities, and exceptional connectivity options.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

1D
Codabar
Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Plessey
POSTNET
GS1 DataBar
Standard 2 of 5
UPC/EAN
UPC-E
IMB
2D
AZTEC
Codablock
Code 49
Data Matrix
Maxi Code
Micro PDF-417
PDF-417
QR Code
TLC 39

Application/Usage:

Mobile

Features:

Tear Bar
LCD Display
Compact
Rugged
Water Proof
Dust Resistant
Drop Resistant

Mobile Device Printing:

Yes

Wireless Print Technology:

Wi-Fi Direct

Ingress Protection (IP) Rating:

IP54

Optional Connectivity:

Bluetooth

Fonts Included:

10 SLCS
One SLCS
16 BPL-Z
One BPL-Z
7 BPL-C
23 Code Page
Unicode supported (UTF-8, UTF-16LE, UTF-16BE)

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Wi-Fi Direct:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Label
Notch
Receipt

Media Sensor:

Transmissive Media Sensor
Paper End Sensor
Gap Sensor
Black Mark Sensor

Media Thickness:

5.91 mil

Maximum Roll Diameter:

2.60"

Maximum Label Width:

4.41"

Fonts & Emulation

Language Emulation:

SLCS
BPL-Z
BXL/POS
BPL-C

Software

Operating System Supported:

Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB Driver, Utility Program, LabelArtist-II™, Bartender UL, OPOS / JPOS Driver, SAP® Device Driver

Power Description

Power Source:

Battery

Battery Information

Battery Included:

Yes

Environmental Conditions

Operating Temperature:

5°F (-15°C) - 122°F (50°C)

Operating Relative Humidity:

10% - 80%

Storage Temperature:

-22°F (-30°C) - 158°F (70°C)

Physical Characteristics

Product Color:

Black

Height:

3.2"

Width:

6.2"

Depth:

7.3"

Weight (Approximate):

12.70 oz

Miscellaneous

Platform Supported:

iOS
Android
PC

Energy Star:

Yes

Item Numbers

GTIN: 8809521199536

EAN: 8809521199536

UNSPSC: 45101512
