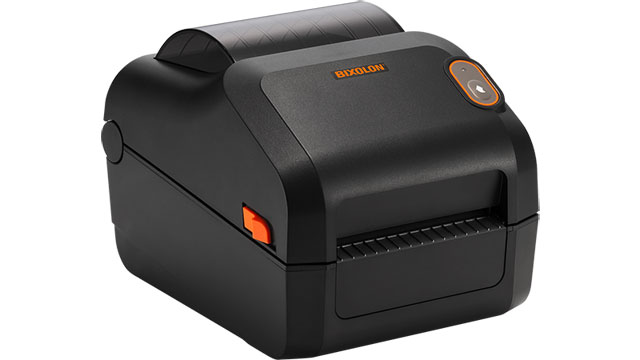

Bixolon XD3-40TDK Barcode Label Printer

Bixolon XD3-40t - Barcode Label Printers, Bixolon XD3-40, Black, Peeler, Built In USB, 5 ips Printing Speed, Thermal Transfer, 203 dpi, Power Supply/US Power Cord, Warranty: Limited 2 Years, TPH 1 Year
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • Monochrome print color capability to meet your printing requirements with maximum efficiency
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.65" maximum label width to easily accommodate your needs with added productivity
  • Supports gap media type for dependable, efficient results with maximum productivity
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides maximum usability with better reliance
  • Compact feature for maximum efficiency and convenience
  • Wired connectivity technology provides a high-powered and dependable connection
Read More
$299.46
Add to Quote
Bixolon XD3-40 Barcode Label Printer Model Overview
The Bixolon XD3-40 Series offers a powerful printing power and reliability in a compact design. The XD3-40 offers a 4" printing solution for either Direct Thermal or Thermal Transfer printing. The XD3-40 gives you the flexibility to connect using locally wired USB, Serial, or Ethernet connectivity options. Customization is made easy with the XD3-40's ability to be programmed using Bixolon's own command language as well as other leading programming languages.
Bixolon XD3-40TDK Barcode Label Printer Overview

Durable and Cost-Effective

The XD3-40t, a 4-inch (118mm) cost-effective Direct Thermal or Thermal Transfer Desktop Barcode and Label printer. Featuring a compact, clamshell design paired with high reliability which is ideal for labelling applications within the Manufacturing, Retail, Transport and Logistics and Healthcare industries.

Supporting data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes paired with memory space of up to 64MB SDRAM, 125MB Flash Memory. Multiple connectivity options including USB 2.0 as standard, plus optional USB + Serial + Ethernet. Flexible core ribbon handling for 1/2-inch and 1-inch options (74m and 300m). While accompanied with an optional field-installable Peeler and an external paper supply, the label printer offers an adjustable paper guide plus holder and space for a media roll diameter of up to 127mm.

The XD3-40t is compatible with market-leading programming languages including SLCS™, BPL-Z™ and BPL-E™ and provides Smart Switch language programming without having to set the mode. Harmonizing with label design software including BIXOLON's Label Artist-II™ and BarTender® UltraLite for BIXOLON. The XD3-40t also allows easy printer management and support with a single button setup with visual LED, comprehensive online 'How to' videos and an onboard QR code with direct links to online support resources. All complimented by a 2-year warranty as standard.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • 1D
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar (RSS-14)
  • Standard 2 of 5
  • UPC-EAN Extensions
  • UPC-A
  • UPC-E
  • IMB
  • 2D
  • AZTEC
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • TLC 39
Peel Facility:
Yes
Application/Usage:
  • Desktop
  • Manufacturing
  • Retail
  • Warehouse
  • Logistic
Features:
Compact
Connectivity Technology:
Wired
Optional Connectivity:
  • Serial (RS-232)
  • Ethernet
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
  • Label
Media Sensor:
  • Black Mark Sensor
  • Gap Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Head Open Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • EPL
  • ZPL II
  • SLCS
  • BPL-Z
  • BPL-E
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Product Color:
Black
Height:
7.3"
Width:
8.3"
Depth:
11.2"
Weight (Approximate):
5.73 lb
Miscellaneous
Package Contents:
  • XD3-40t Direct Thermal/Thermal Transfer Printer
  • Cable USB
Cables Included:
USB
Platform Supported:
  • PC
  • SPARC
  • Mac
Energy Star:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Bixolon XD3-40TDK Barcode Label Printer is also known as XD3-40TDK
