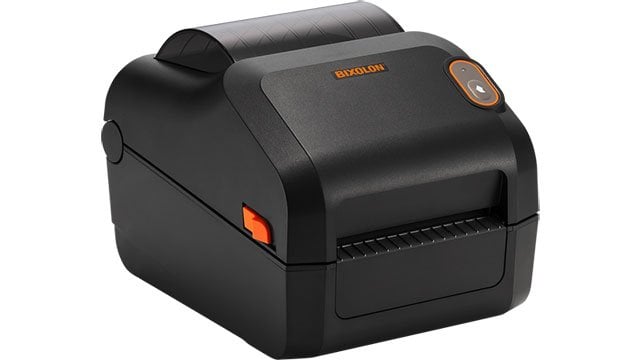

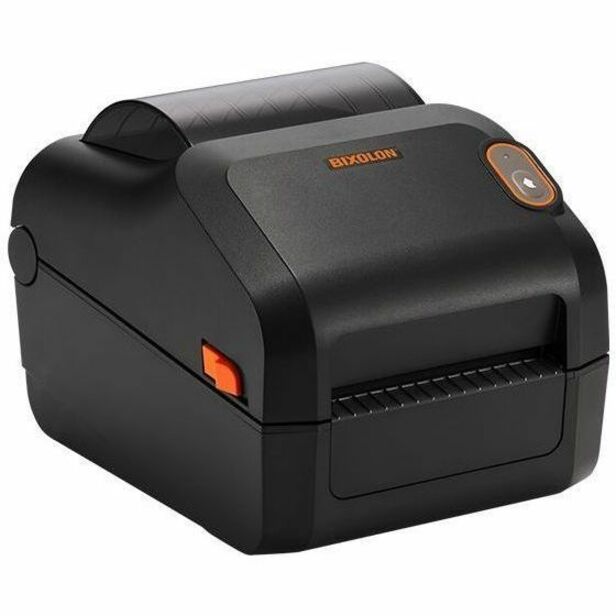

Bixolon XD3-40d – Barcode Label Printer

Part Number: XD3-40DK
Model: XD3-40 Label Printer
Add to My Shopping List Add to Compare
$220.59
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
5 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printer, Bixolon XD3-40dk, Direct Thermal, USB, 5 ips, 127mm/sec Print Speed, 203 dpi, 118mm Label Media Width, Up To 127mm Roll Diameter. Includes: Power Supply, US Power Cord, 2 Year Limited Warranty
Explore all Bixolon XD3-40 Barcode Label Printers
Add to Quote
Bixolon XD3-40DK Barcode Label Printer
Bixolon XD3-40DK Barcode Label Printer
Bixolon XD3-40DK Barcode Label Printer
Bixolon XD3-40DK Barcode Label Printer
Bixolon XD3-40DK Barcode Label Printer Bixolon XD3-40DK Barcode Label Printer Bixolon XD3-40DK Barcode Label Printer Bixolon XD3-40DK Barcode Label Printer
Full specifications (PDF)

Bixolon XD3-40 Barcode Label Printer Model Overview

The Bixolon XD3-40 Series offers a powerful printing power and reliability in a compact design. The XD3-40 offers a 4" printing solution for either Direct Thermal or Thermal Transfer printing. The XD3-40 gives you the flexibility to connect using locally wired USB, Serial, or Ethernet connectivity options. Customization is made easy with the XD3-40's ability to be programmed using Bixolon's own command language as well as other leading programming languages.
Bixolon XD3-40DK Barcode Label Printer Overview

Basic Functions

- Printing speed up to 5 ips (127 mm/sec)

- Fully compatible with market-leading programming languages

- Supporting stand-alone configuration mode by visual LED

- Smart switch programming languages without setting the mode

User-Friendly Design

- Easy paper loading with adjustable paper guide and holder

- Simply set up media sensor

- Optional peeler

- Compatible with label design software; BIXOLON's Label Artist™, Seagull's BarTender® and BarTender® UltraLite for BIXOLON

All in one Plus™ Interface

- Standard: USB

- Optional: USB + Serial + Ethernet

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • TLC 39
  • QR Code
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • Data Matrix
  • Code 49
  • AZTEC
  • Codablock
  • IMB
  • POSTNET
  • Plessey
  • Code 11
  • Code 39
  • Code 93
  • Codabar
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • UPC/EAN
  • GS1 DataBar (RSS-14)
  • UPC-A
  • UPC-E
  • Industrial 2 of 5
  • Standard 2 of 5
  • 1D
  • 2D
Real Time Clock:
No
Application/Usage:
  • Warehouse
  • Logistic
  • Manufacturing
  • Retail
Features:
Compact
Connectivity Technology:
Wired
Fonts Included:
  • 10 SLCS Resident Bitmap Fonts
  • 5 BPL-E Resident Bitmap Fonts
  • One BPL-Z Resident Scalable Font
  • One SLCS Resident Scalable Font
  • 16 BPL-Z Resident Bitmap Fonts
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Print Technology:
Direct Thermal
Memory
Standard Memory:
64 MB
Flash Memory:
128 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Screen Size:
4"
Media Types & Handling
Media Type:
  • Label
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Head Open Sensor
  • Low Ribbon Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • BPL-E
  • BPL-Z
  • SLCS
  • ZPL II
  • EPL
Power Description
Power Source:
AC Supply
Frequency:
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
6.6"
Width:
7.1"
Depth:
8.7"
Weight (Approximate):
3.75 lb
Miscellaneous
Platform Supported:
  • PC
  • Mac
Energy Star:
Yes
Item Numbers
GTIN: 8809521195989
EAN: 8809521195989
UNSPSC: 45101512
