Bixolon XD3-40d – Barcode Label Printer

Part Number: XD3-40DDK
Model: XD3-40 Label Printer
Add to My Shopping List Add to Compare
$217.63

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
5 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printers, Bixolon XD3-40, Black, USB, Peeler, 5 ips, 127mm Sec Print Speed, Direct Thermal, 203 dpi, 15 118mm Label Media Width, Up To 127 mm Roll D. Power Supply US Power Cord, Label Artist Design Prog Warranty Ltd 2 Years, TPH 1 Y
Explore all Bixolon XD3-40 Barcode Label Printers
Add to Quote

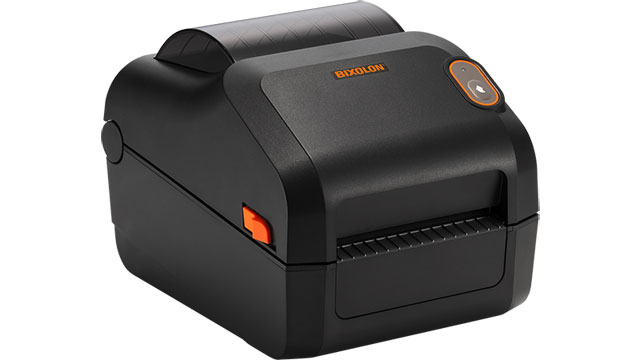

Bixolon XD3-40DDK Barcode Label Printer
Bixolon XD3-40DDK Barcode Label Printer
Bixolon XD3-40DDK Barcode Label Printer
Bixolon XD3-40DDK Barcode Label Printer
Bixolon XD3-40DDK Barcode Label Printer Bixolon XD3-40DDK Barcode Label Printer Bixolon XD3-40DDK Barcode Label Printer Bixolon XD3-40DDK Barcode Label Printer
Full specifications (PDF)

Bixolon XD3-40 Barcode Label Printer Model Overview

The Bixolon XD3-40 Series offers a powerful printing power and reliability in a compact design. The XD3-40 offers a 4" printing solution for either Direct Thermal or Thermal Transfer printing. The XD3-40 gives you the flexibility to connect using locally wired USB, Serial, or Ethernet connectivity options. Customization is made easy with the XD3-40's ability to be programmed using Bixolon's own command language as well as other leading programming languages.
Bixolon XD3-40DDK Barcode Label Printer Overview

Following in the footsteps of the industry recognised SRP-E770 series, the entry-level XD3-40d is a new Direct Thermal 4-inch (118mm) Desktop workhorse offering day-to-day quality 203 dpi output across your logistics, warehousing and manufacturing installations. Simple to setup and use, the XD3-40d also benefits from tool-less printhead and platen replacement to ensure uptime is maximised. Product or asset labelling, Document management, patient and quest identification, Shipping and logistics printing, the XD3-series offers a balance of cost and performance, including print speed, tear and peel media handling, plus networked options.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • QR Code
  • TLC 39
Peel Facility:
Yes
Application/Usage:
Desktop
Optional Connectivity:
  • Ethernet
  • Serial (RS-232)
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Print Technology:
Direct Thermal
Memory
Standard Memory:
64 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Fanfold
  • Continuous Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Head Open Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • BPL-D
  • BPL-E
Software
Operating System Supported:
Driver / Utility Windows Driver (Europlus / Seagull) Linux / Mac CUPS Driver Virtual COM USB / Ethernet Driver, Utility Program, OPOS Driver Bartender Ultralite for BIXOLON Label Artist-II™ SDK / Plugin Windows SDK, Linux SDK
Power Description
Power Source:
  • Power Adapter
  • AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Color Family:
Dual Color
Product Color:
  • Black
  • Orange
Height:
6.6"
Width:
7.1"
Depth:
8.7"
Weight (Approximate):
3.75 lb
Miscellaneous
Power Cable Localization:
US
Platform Supported:
  • PC
  • Mac
Energy Star:
Yes
Item Numbers
GTIN: 8809521196054
EAN: 8809521196054
UNSPSC: 45101512
