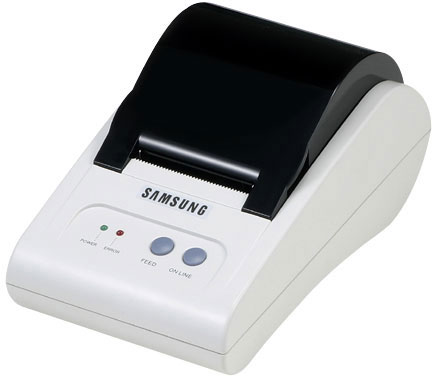

Bixolon STP-103PG Receipt Printer

Bixolon STP-103 - Thermal receipt printing, 11.8 lps, Parallel interface. Includes tear bar and US power supply. Order cables separately, see accessories. Color: Dark gray.
The STP-103 has a small footprint and easy drop-and-load paper insertion!

The Samsung STP-103 is the ultimate value in thermal receipt printing. This high speed, low cost direct thermal printer offers many of the features found in more expensive printers, making the STP-103 the perfect complement match for the point of sale, credit authorization, kitchen printing, data logging and measuring equipment. Optional manual cutter and buyer language support.

Technical Information

  • Maximum Mono Print Speed: 1.97 in/s 13.2 lps
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Number of Columns: 56
  • Recommended Use: Receipt Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • EAN-13
    • EAN-8
    • Code 39
    • Code 93
    • Code 128
    • ITF
    • Codabar
    • UPC-A

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: Samsung
  • Manufacturer: Samsung
  • Product Model: STP-103PG
  • Product Name: Bixolon STP-103PG Receipt Printer

Physical Characteristics

  • Height: 3.5"
  • Width: 3.9"
  • Depth: 7.5"
  • Color: Gray

Interfaces/Ports

  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Additional Information:
    • Drawer Port
    • Easy Paper Loading
    • Paper near end sensor
    • Paper end sensor

Media Types & Handling

  • Media Type: Thermal Paper
  • Media Size: 2.30" x Roll Paper
  • Maximum Roll Diameter: 2.36"

Power Description

  • Input Voltage: 24 V DC

Cutter

  • Cutting Method: Manual

Fonts & Emulation

  • Language Emulation: ESC/POS

Full specifications (PDF)
