Bixolon STP-103P Receipt Printer

The Bixolon STP-103P Receipt Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Bixolon STP-103 - Bixolon STP-103 Direct Thermal Printer - Monochrome - Gray - Desktop - Receipt Print - 1.89" Print Width - 1.97 in/s Mono - 203 x 203 dpi - Thermal Paper, Receipt - 2.28" Label Width
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

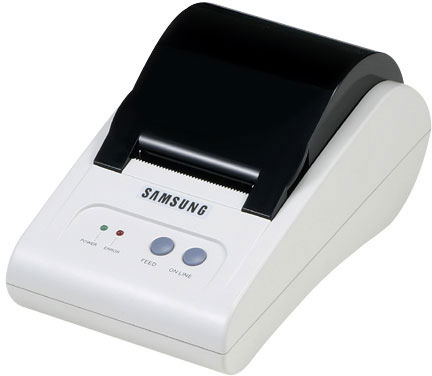

Bixolon STP-103 Receipt Printer Model Overview
The Samsung STP-103 is the ultimate value in thermal receipt printing. This high speed, low cost direct thermal printer offers many of the features found in more expensive printers, making the STP-103 the perfect complement match for the point of sale, credit authorization, kitchen printing, data logging and measuring equipment. Optional manual cutter and buyer language support.
Bixolon STP-103P Receipt Printer Overview

Thermal direct printing supplies small receipt and vouchers wherever they are needed. With this technology the printer does not require a thermal transfer ribbon. Consequently, it creates very cost-effective vouchers for short and medium-term solutions. The printer's space-saving design uses paper rolls of a maximum width of 58mm. It can hold rolls up to 60mm in width and offers high efficiency in a very limited space, which is required in so many of today's POS environments.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
1.97 in/s
Maximum Print Resolution:
203 x 203 dpi
Number of Columns:
42
Maximum Print Width:
1.89"
Barcode Symbology Supported:
  • EAN-13
  • EAN-8
  • Code 39
  • Code 93
  • Code 128
  • ITF
  • Codabar
  • UPC-A
Application/Usage:
Desktop
Memory
Standard Memory:
15 KB
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Thermal Paper
  • Receipt
Media Sensor:
  • Cover Open Sensor
  • Out Of Paper Sensor
Media Thickness:
2.95 mil
Maximum Roll Diameter:
2.36"
Maximum Label Width:
2.28"
Fonts & Emulation
Language Emulation:
ESC/POS
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Color:
Gray
Height:
3.5"
Width:
4.6"
Depth:
7.1"
Miscellaneous
Package Contents:
  • STP-103 Receipt Printer
  • User Guide
  • Roll Paper
  • Power Cord
  • Adapter
  • Software CD
  • Communication Cord
Cables Included:
AC
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
