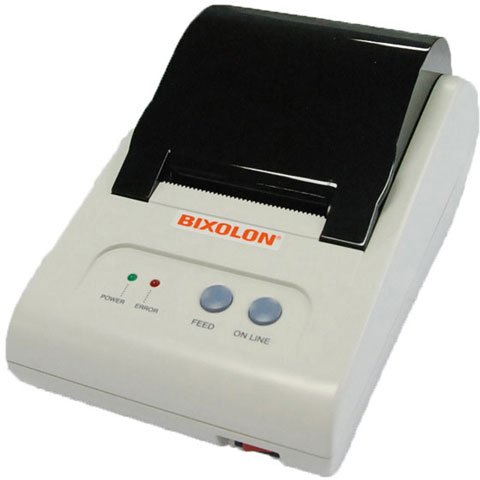

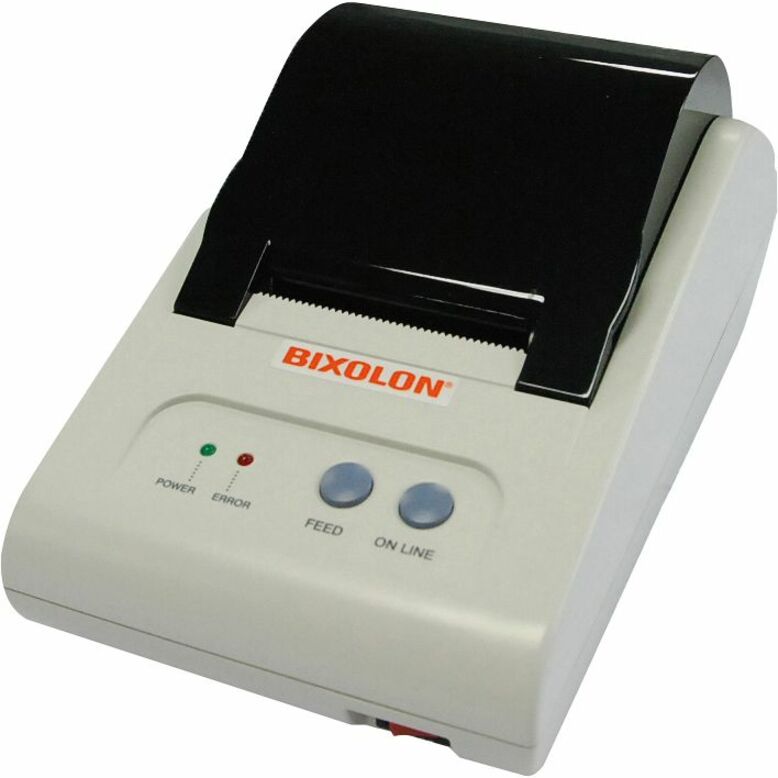

Bixolon STP-103II Receipt Printer

Part Number: STP-103II

Model: STP-103II

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Receipt Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

2.76 in/s

Maximum Print Resolution

203 dpi

Product Description:

Bixolon STP-103II Direct Thermal Printer - Monochrome - White - Desktop - Receipt Print - USB - 2.76 in/s Mono - 203 dpi - Thermal Paper - 2.28" Label Width

Explore all Bixolon STP-103II Receipt Printers

Add to Quote

Overview

Full specifications (PDF)

Bixolon STP-103II Receipt Printer Model Overview

This user-friendly design of the STP-103II ia an upgraded version of the STP-103 which incorporates a small footprint and drop-in and-load paper insertion. The STP-103II is equipped with on-board USB 2.0 that can print at a speed of 70mm per second. The Bixolon STP-103II's ability to produce large clear print on 58mm wide paper is found on no other compact printer and it can hold thermal rolls up to 60mm in width while still offering high efficiency in a very limited space in so many of today's POS environments. The unit may seem small in size, but compared to some larger models its printing quality reaches the same standards. The STP-103II prints crystal clear vouchers and receipts at 203 dpi resolution. It supports a simple software application that downloads your logos directly to the printer.

Bixolon STP-103II Receipt Printer Overview

This user-friendly design STP-103II upgraded version of STP-103 incorporates a small footprint and drop-in and load paper insertion. STP-103II equipped USB 2.0 on board can print at a speed of 70mm/sec. The BIXOLON STP-103II printer's ability to produce large clear print on 58mm wide paper is found on no other compact printer and it can hold thermal rolls up to 60mm in width.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

2.76 in/s

Maximum Print Resolution:

203 dpi

Barcode Symbology Supported:

PDF-417
QR Code
EAN-13
EAN-8
Code 39
Code 93
Code 128
ITF
Codabar
UPC-A
UPC-E

Application/Usage:

Desktop

Features:

Tear Bar

Memory

Flash Memory:

256 KB

Interfaces/Ports

Parallel Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Thermal Paper

Media Sensor:

Out Of Paper Sensor
Media Door Open Sensor

Maximum Roll Diameter:

3.15"

Maximum Label Width:

2.28"

Fonts & Emulation

Language Emulation:

ESC/POS

Power Description

Input Voltage:

24 V DC

Physical Characteristics

Color:

White

Height:

3.5"

Width:

4.6"

Depth:

7.1"

Miscellaneous

Package Contents:

STP-103II Receipt Printer
Serial Cable

Cables Included:

RS-232

Platform Supported:

Item Numbers

UNSPSC: 45101512
