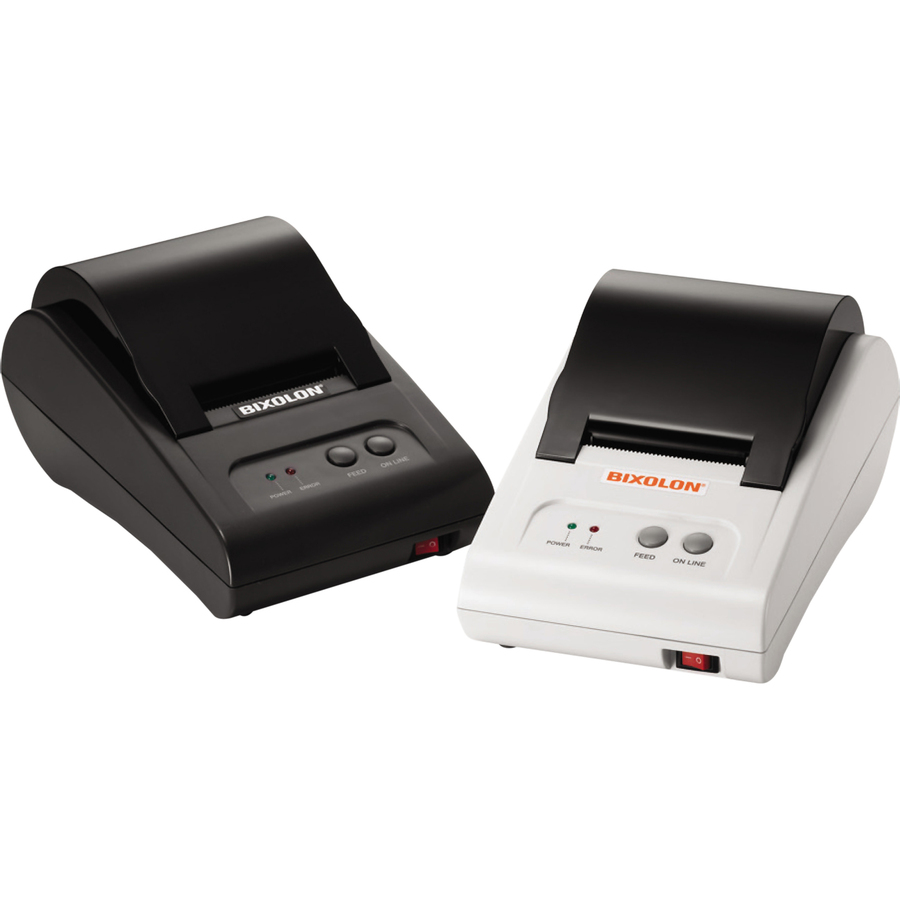

Bixolon STP-103G Receipt Printer
Bixolon STP-103G Receipt Printer
Bixolon STP-103 -
Thermal receipt printing, 11.8 lps, Serial interface. Includes tear bar and US power supply. Order cables separately, see accessories. Color: Dark gray.
The STP-103 has a small footprint and easy drop-and-load paper insertion!

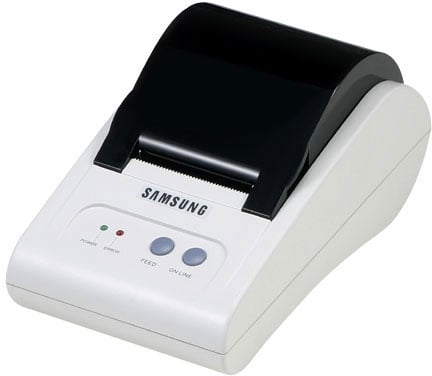

The Samsung STP-103 is the ultimate value in thermal receipt printing. This high speed, low cost direct thermal printer offers many of the features found in more expensive printers, making the STP-103 the perfect complement match for the point of sale, credit authorization, kitchen printing, data logging and measuring equipment. Optional manual cutter and buyer language support.
Technical Information
- Maximum Mono Print Speed: 1.97 in/s
- Maximum Print Resolution: 203 x 203 dpi
- Print Color: Monochrome
- Number of Columns: 42
- Maximum Print Width: 1.89"
- Recommended Use: Receipt Print
- Features: Cutter
- Barcode Symbology Supported:
- EAN-13
- EAN-8
- Code 39
- Code 93
- Code 128
- ITF
- Codabar
- UPC-A
General Information
- Product Type: Direct Thermal Printer
- Brand Name: Bixolon
- Manufacturer: Bixolon America, Inc
- Product Model: STP-103
- Product Name: STP-103 Receipt Printer
Physical Characteristics
- Height: 3.5"
- Width: 4.6"
- Depth: 7.1"
- Form Factor: Desktop
- Color: Gray
Interfaces/Ports
- Serial Port: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: WEEE
- Platform Supported: PC
- Package Contents:
- STP-103 Receipt Printer
- User Guide
- Roll Paper
- Power Cord
- Adapter
- Software CD
- Communication Cord
- STP-103 Receipt Printer
- User Guide
- Roll Paper
- Power Cord
- Adapter
- Software CD
- Communication Cord
Media Types & Handling
- Maximum Label Width: 2.28"
- Media Type:
- Thermal Paper
- Receipt
- Media Thickness: 2.95 mil
- Media Sensor:
- Cover Open Sensor
- Out Of Paper Sensor
- Maximum Roll Diameter: 2.36"
Power Description
- Input Voltage: 24 V DC
- Power Source: Power Adapter
Memory
- Standard Memory: 15 KB
- Flash Memory: 1 MB
Cutter
- Cutting Method: Manual
Full specifications (PDF)| Brand | Bixolon |
| Model | STP-103 |
