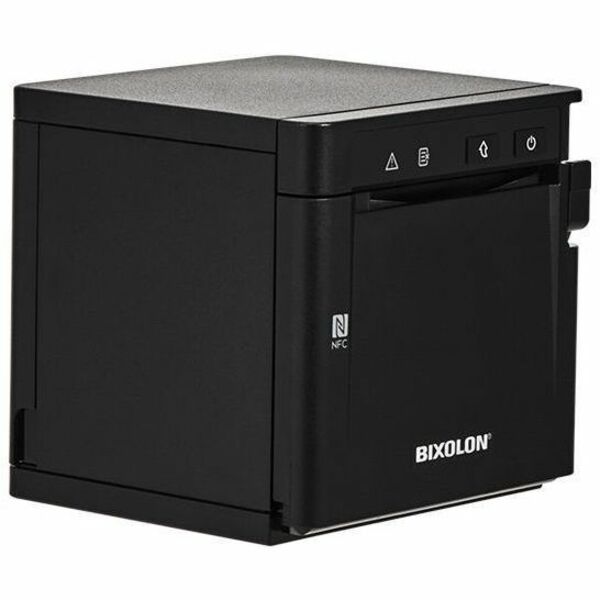

Bixolon SRP-Q302BK Receipt Printer

Name: Bixolon SRP-Q302BK Receipt Printer
Brand: Bixolon
SKU: 763730
Price: 405.22 USD
Availability: OutOfStock

Part Number: SRP-Q302BK

Model: SRP-S300

$405.22

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Receipt Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

8.66 in/s

Maximum Print Resolution (dpi)

203

Product Description:

Barcode Label Printer, Bixolon SRP-S300, Bixolon, Q302, Printer, USB, Ethernet, AC, 24V Battery Lion, 3 Year Warranty, Black

Explore all Bixolon SRP-Q300 Receipt Printers

Add to Quote

Overview

Full specifications (PDF)

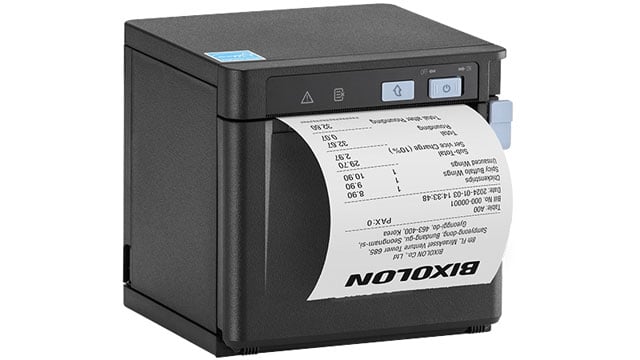

Bixolon SRP-Q300 Receipt Printer Model Overview

The SRP-Q300 Series 3-inch mPOS Printer is an innovative solution designed for businesses in retail, restaurants, and coffee shops. Compact and efficient, this printer boasts fast printing speeds of up to 220 mm/sec and compatibility with major operating systems like Android, iOS, and Windows. Its dual-band WLAN and Bluetooth connectivity provide seamless communication while the Liquid-Barrier™ technology ensures reliability in any environment. With its built-in battery and various USB peripheral support, this printer is perfect for creating a smooth, mobile point-of-sale experience.

Key Features

Compact Design: 53% smaller than previous models.
Fast Printing: Speed of up to 220 mm/sec.
Multiple Connectivity Options: Compatible with Bluetooth, WLAN, USB, and NFC.
Robust Build: IP21 certification for dust and water resistance.
Easy Paper Loading: Simplified media handling.

Specifications

Print Method: Direct Thermal
Print Speed: Up to 220 mm/sec
Print Resolution: 180dpi
Print Width: Up to 72mm
Media Type: Receipt
Media Width: 80 mm / 58 mm (optional)
Dimensions: 128 x 125 x 125 mm (SRP-Q300)
Weight: 1.23 kg (2.71 lbs.)
Battery: 24 V Li-ion, 2,750 mAh (rechargeable)
Operating Temperature: 0~40°C (32 ~ 104°F)
Operating Humidity: 10~80% RH

Bixolon SRP-Q302BK Receipt Printer Overview

mPOS Ready

- Compatible with all major operating systems including Android™, iOS™ and Windows®

- Dual-band WLAN (5GHz and 2.4 GHz)

- Dual-mode Bluetooth V4.2 Classic (MFi AP2 certified) and LE

- VMSM, NV image tool are supported via Q300 Utility through various connectivity (Bluetooth, WLAN, USB and NFC)

- Easy Bluetooth pairing, Wi-Fi configuration and printer configuration via NFC

Build Your Own mPOS

- SRP-Q300H supports various USB peripherals, Web & Cloud based printing

- Built-in battery supports the perfect standalone mPOS solutions

- Mini LCD Customer Display enabled by SRP-Q300 series (BCD-3000)

- Robust steel tablet stand safely secures a 10 inch tablet using locking mechanisms and 170° forward-tiling (RTS-Q300)

Reliable and Convenient

- Cube design optimizes space utilization

- 53% smaller than SRP-350plusIII

- Liquid-Barrier™ creates a complete waterproof and dustproof solution (IP21 certified)

- Well-organized cable management

- Fast printing speed up to 220 mm/sec

- All in one Plus™ Interface (Built in USB V2.0FS + Ethernet) + WLAN/ Bluetooth V4.2

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

8.66 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.83"

Barcode Symbology Supported:

QR Code
PDF417
ITF
Codabar
Code 39
Code 93
UPC-E
UPC-A
Data Matrix
EAN-8
EAN-13
Code 128
Codabar (NW-7)
1D
2D
GS1-128
GS1 DataBar Stacked
GS1 DataBar Truncated
GS1 DataBar Limited
GS1 DataBar Omnidirectional
GS1 DataBar Expanded

Application/Usage:

Retail
Restaurant
Coffee Shop
Supply Chain Store
Mobile POS

Character Sets:

95 Alphanumeric
128 x 35 Graphic
32 International

Print Head Life:

150km

Connectivity Technology:

Wired & Wireless

Fonts Included:

JPN: 24 x 24
Font C: 9 x 24
Font B: 9 x 17
Font A: 12 x 24
CHN
KOR

Print Technology:

Direct Thermal

Interfaces/Ports

USB Host:

Yes

USB:

Yes

USB Standard:

USB 2.0

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Bluetooth:

Yes

Bluetooth Version:

4.2

Near Field Communication (NFC):

Yes

Display & Graphics

Display Screen:

Yes

Screen Size:

Display Screen Type:

LCD

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Cutter Life:

1500000 Cuts

Media Types & Handling

Media Type:

Receipt

Media Sensor:

Paper End Sensor
Cover Open Sensor

Media Thickness:

3.15 mil

Maximum Roll Diameter:

3.15"

Maximum Label Width:

3.15"

Fonts & Emulation

Language Emulation:

BXL/POS

Software

Operating System Supported:

Android
iOS
Windows

Power Description

Power Source:

Power Adapter
AC Supply

Frequency:

50 Hz
60 Hz

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

2750 mAh

Environmental Conditions

Operating Temperature:

32°F (0°C) - 104°F (40°C)

Operating Relative Humidity:

10% - 80%

Storage Temperature:

-4°F (-20°C) - 140°F (60°C)

Storage Relative Humidity:

10% - 90%

Miscellaneous

Energy Star:

Yes

Item Numbers

UNSPSC: 45101512
