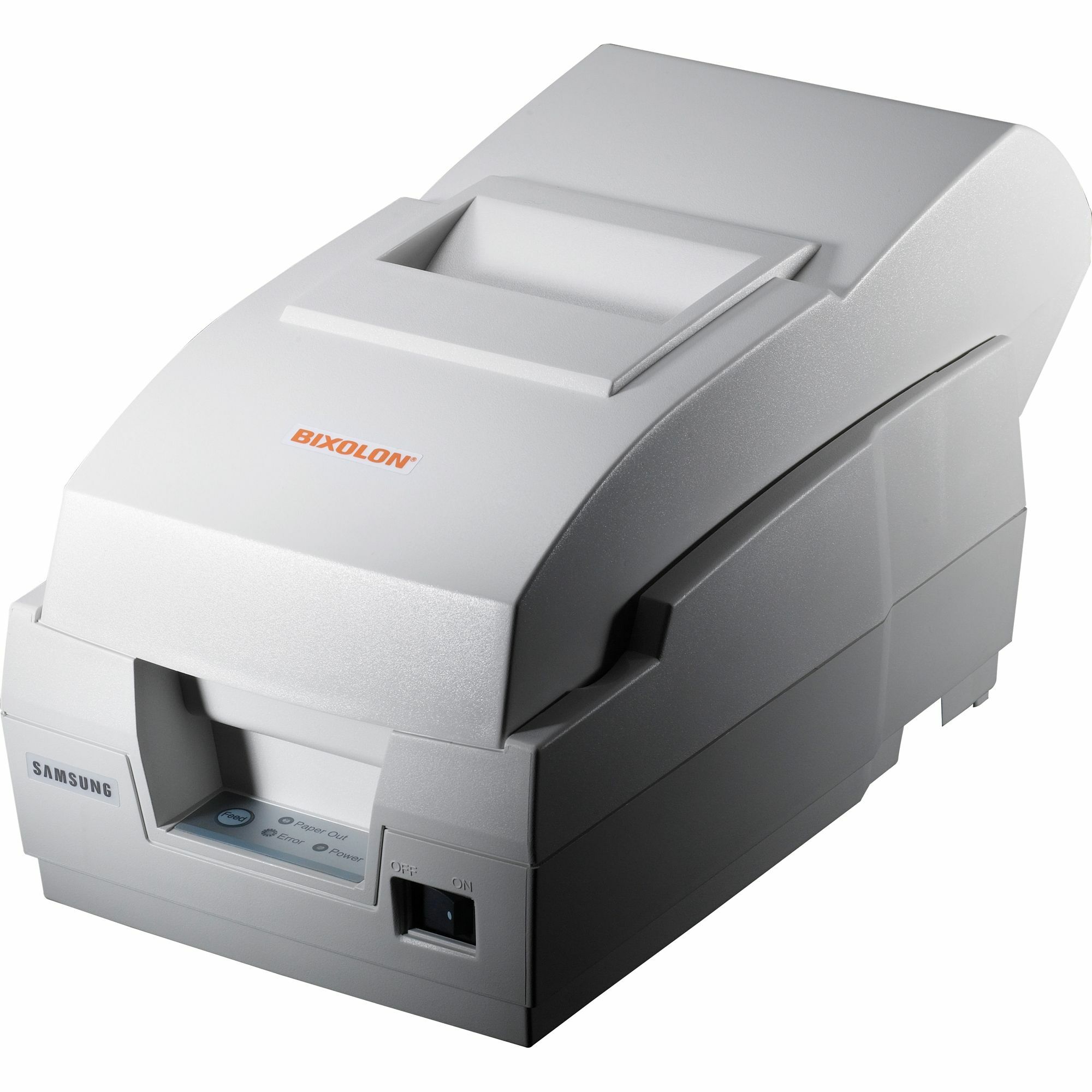

Bixolon SRP-270DG Receipt Printer

Part Number: SRP-270DG
Model: SRP-270

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
Serial (RS-232)

Product Description:

  Bixolon SRP-270D Dot Matrix Printer - Monochrome - Gray - Desktop - Receipt Print - Serial - 2.49" Print Width - 4.6 lps Mono - 80 x 144 dpi - Plain Paper, Receipt - 3.39" Label Width

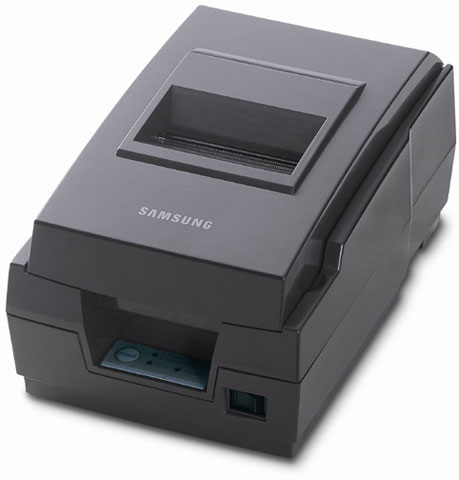

Bixolon SRP-270 Receipt Printer Model Overview

The SAMSUNG SRP-270 Dot Impact Printer combines exceptional build quality with affordability, making it an excellent choice for various impact printing needs, including receipts, orders, and audits. Designed for reliability and speed, this printer is compatible with major operating systems, ensuring a seamless plug-and-play experience. Its durable design and multiple configuration options allow store managers to significantly reduce operational costs while maintaining high-quality performance.


Key Features:

  • Fast Printing Speed: Delivers 4.6 lines per second for efficient processing.
  • Multiple Models: Available in three variants: A (tear-off), C (auto cutter), and D (cutter & take-up spool).
  • Various Connectivity Options: Modular interface boards for USB, Ethernet, Serial, and more.
  • High Reliability: Automatic paper end detection and an auto cutter for enhanced usability.
  • Easy Integration: Compatible with Windows 95/98/ME/NT4.0/XP and OPOS driver support.

Specifications:

  • Print Method: 9 pin serial impact dot matrix
  • Print Speed: 4.6 lines per second at 40 columns
  • Printing Width: 63.34 mm (2.49")
  • Character Sets: Alphanumeric: 95, Extended Graphics: 128 x 7 Page
  • Paper Type: Plain Paper with a roll width of 76±0.5 mm
  • Ribbon Type: Ribbon Cassette (ERC-30/38 Compatible)
  • Connectivity: Serial, Parallel, USB, Bluetooth
  • Operating Temperature: 0 ~ 45°C
  • Dimensions: 160mm x 247mm x 130mm (model A), 149mm (model C), 159mm (model D)
  • Color: Available in Dark Gray
Bixolon SRP-270DG Receipt Printer Overview

The BIXOLON SRP-270 is a high quality, reliable dot matrix receipt printer. The BIXOLON SRP-270 receipt printer is an ideal printer for point of sale and hospitality applications. The modular userfriendly design, graphics capability, and 4.6 lines per second print speed offer reliable high performance in a compact, lightweight design.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4.6 lps
Maximum Print Resolution (dpi):
80 x 144
Number of Pins:
9-pin
Number of Columns:
40
Maximum Print Width:
2.49"
Application/Usage:
Desktop
Interfaces/Ports
Serial Port:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Plain Paper
  • Receipt
Media Sensor:
  • Out Of Paper Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
3.27"
Maximum Label Width:
3.39"
Fonts & Emulation
Language Emulation:
ESC/POS
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Product Color:
Gray
Height:
5.9"
Width:
6.3"
Depth:
9.8"
Weight (Approximate):
5.30 lb
Miscellaneous
Platform Supported:
PC
Country of Origin:
South Korea
Item Numbers
GTIN: 0001647799777, 0799916314690, 8809166670209, 8809166670247
UPC: 001647799777, 799916314690
EAN: 0001647799777, 0799916314690, 8809166670209, 8809166670247
UNSPSC: 43212102
