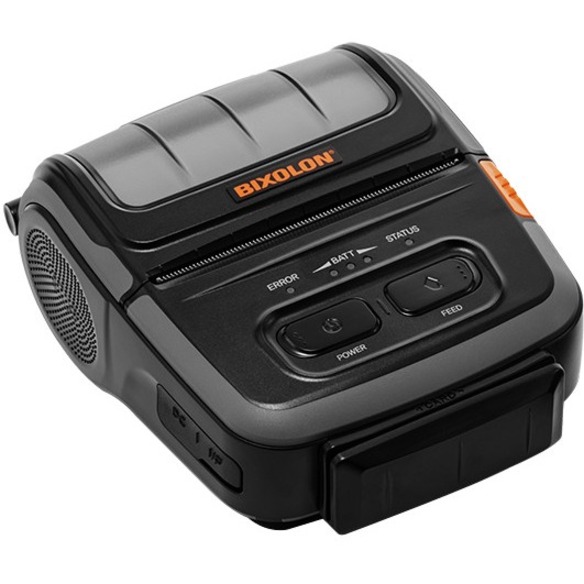

Bixolon SPP-R310 – Barcode Label Printer

Part Number: SPP-R310PLUSIK5
Model: SPP-R310
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label/Receipt Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
3.94 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printers, Bixolon R310, Mobile Printer, Transmissive Sensor Package, Bluetooth, Black, RS-232 Serial, USB, Battery, Power Supply, Battery Charger, 1 Year Warranty
Explore all Bixolon SPP-R310 Portable Barcode Printers
Add to Quote
Bixolon SPP-R310PLUSIK5 Barcode Label Printer
Bixolon SPP-R310PLUSIK5 Barcode Label Printer
Bixolon SPP-R310PLUSIK5 Barcode Label Printer
Bixolon SPP-R310PLUSIK5 Barcode Label Printer Bixolon SPP-R310PLUSIK5 Barcode Label Printer Bixolon SPP-R310PLUSIK5 Barcode Label Printer
Full specifications (PDF)

Bixolon SPP-R310 Portable Barcode Printer Model Overview

The SPP-R310 3-inch Mobile Printer from BIXOLON is your ideal partner for on-the-go printing needs, beautifully designed for retail, customer service, and delivery applications. This compact and lightweight printer features an ergonomic design, making it 30% lighter and 26% slimmer than its predecessor. The SPP-R310 supports both iOS and standard Bluetooth connections with easy pairing via embedded NFC, ensuring seamless operation. With an impressive battery life allowing for 24 hours of standby time, you can rely on it for continuous operation throughout your workday.


Key Features:
  • Compact and Ergonomic: Lighter design for easy handling.
  • Multiple Connectivity Options: Bluetooth, WiFi, USB, and Serial.
  • High Printing Speed: Up to 100 mm/sec for efficient receipts and labels.
  • Durable Build: IP54 rating with protective case and 1.8 m drop resistance.
  • Easy Paper Loading: One-touch cover for convenient media replacement.

Specifications:
  • Print Method: Direct Thermal
  • Print Speed: Up to 100 mm/sec (Receipt), Up to 80 mm/sec (Linerless)
  • Print Resolution: 203 dpi
  • Print Width: Up to 72 mm
  • Battery: 7.4V Li-ion, 2,600 mAh, Rechargeable
  • Weight: 385 g including battery
  • Dimensions: 105.0 x 126.0 x 58.0 mm
  • Operating Temperature: -15~50°C (5~122°F)
  • Drop Rate: 1.8 m (6 ft.)
  • Media Type: Receipt, Label, and Linerless (Optional)
Bixolon SPP-R310PLUSIK5 Barcode Label Printer Overview

Compact and Ergonomic

The SPP-R310 3" receipt, label and ticket mobile printer is super compact, rugged and ergonomic printer accompanied with Bluetooth, WiFi, USB and Serial connectivity options.

Supporting Easy Bluetooth Pairing via an embedded NFC tag enabling easy auto pairing with Apple iOS™, Android™ Symbian™ & Windows® smart devices, alongside Apple MFi iAP2 certification. The SPP-R310 also features a Auto-Switch function which provides simple automatic switching between iOS mode and standard Bluetooth modes.

Printing at speeds of 100mm/sec (receipt) at 203dpi printing resolution. The SPP-R310 provides a 24 hour battery life supporting continuous printing of 253 metres. Alongside a 1.8 metres drop certification and IP54 dust and water resistance rating within its protective case. Operating in an extreme temperature range of +50°C to -15°C due to its integrated temperature sensor, the 3" mobile printer with a 2 year warranty (including the print head) is fully functional in the harshest of environments.

Full specifications (PDF)
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3.94 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.83"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • EAN-8
  • Code 128
  • ITF
  • UPC-A/E
  • AZTEC
  • Data Matrix
  • GS1 DataBar
  • Maxi Code
  • PDF417
  • QR Code
Application/Usage:
Mobile
Features:
  • Magnetic Stripe Reader
  • Dust Resistant
  • Water Resistant
  • Ergonomic
  • Compact
  • Rugged
Mobile Device Printing:
Yes
Ingress Protection (IP) Rating:
IP54
Character Sets:
  • 95 Alphanumeric
  • 128 x 33 Graphic
  • 32 International
  • Unicode
Optional Connectivity:
Wireless LAN
Fonts Included:
  • Font A: 12 x 24
  • Font B: 9 x 17
  • Font C: 9 x 24
  • CHN: 24 x 24
Print Technology:
Direct Thermal
Memory
Standard Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Bluetooth:
Yes
Near Field Communication (NFC):
Yes
Media Types & Handling
Media Type:
  • Receipt
  • Label
  • Linerless
Media Thickness:
0.20 mil
Maximum Roll Diameter:
1.97"
Maximum Label Width:
3.15"
Fonts & Emulation
Language Emulation:
BXL/POS
Software
Software Included:
Emulation BXL / POS Driver / Utility Windows Driver OPOS / JPOS Driver Linux / Mac CUPS Driver Utility Program SDK / Plugin Android / iOS / Windows SDK Linux SDK Chrome SDK Xamarin SDK Cordova Plugin Browser / App Windows mPrint Browser (All) mPrint App (Android, iOS)
Power Description
Power Source:
Battery
Battery Information
Battery Included:
Yes
Environmental Conditions
Operating Temperature:
14°F (-10°C) - 122°F (50°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-22°F (-30°C) - 158°F (70°C)
Physical Characteristics
Form Factor:
Portable
Color Family:
Black
Product Color:
Black
Height:
2.3"
Width:
4.1"
Depth:
5"
Weight (Approximate):
14.29 oz
Miscellaneous
Power Adapter Included:
Yes
Platform Supported:
  • PC
  • iOS
  • Android
Energy Star:
Yes
Item Numbers
GTIN: 8809521198324
EAN: 8809521198324
UNSPSC: 45101512
The Bixolon SPP-R310PLUSIK5 Barcode Label Printer is also known as SPP-R310PLUSIK5
