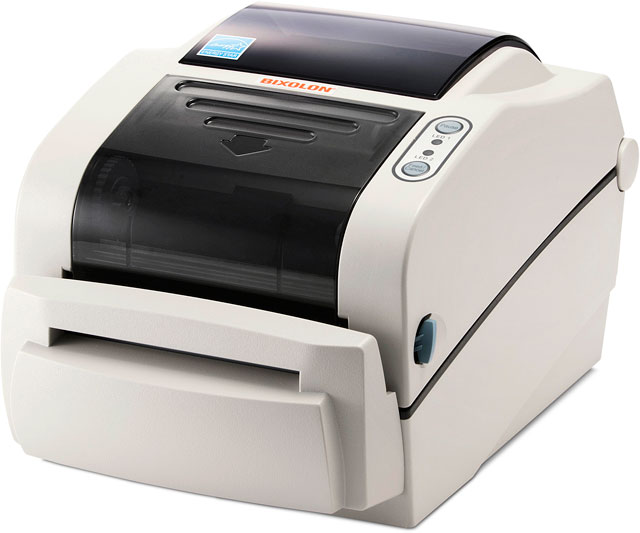

Bixolon SLP-TX403E Barcode Label Printer

The Bixolon SLP-TX403E Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Bixolon SLP-TX420 - Bixolon SLP-TX403 Thermal Transfer Printer - Monochrome - Ivory - Desktop - Label Print - Ethernet - USB - Serial - 4" Print Width - 5 in/s Mono - 300 x 300 dpi - Label - 4.57" Label Width

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Serial (RS-232), USB

Print Resolution

300 dpi

A better-quality solution to print permanent-use documents
Enjoy the optimal performance in today's on-demand labeling applications
Produce high-quality documents with this monochrome printer to increase your productivity
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity

Need a different version? See all Bixolon SLP-TX420 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Bixolon SLP-TX403E Barcode Label Printer

Overview

Full specifications (PDF)

Bixolon SLP-TX420 Barcode Label Printer Model Overview

The compact and robust and easy to use 4" thermal transfer or direct thermal desktop printer with optional WiFi enabling simple, consistent printing from Android tablets and smartphones and other smart devices. Offering high speed label printing up to 178mm/second, and superior print quality of 203dpi enabling high quality barcode printing for a range of requirements such as 2D, Maxicode, PDF 417, QR Code and Data Matrix applications. The SLP-TX420 also offers Autocutter or Peeler options. Offering the All-in-one interface, with Serial, Parallel & USB as standard and optional Serial, USB, Ethernet & WLAN. The SLP-TX420 is fully compatible with market-leading programming languages such as SLCS, BPL-Z and BPL-E.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5 in/s

Maximum Print Resolution:

300 x 300 dpi

Maximum Print Width:

Barcode Symbology Supported:

PDF-417
Codabar
NW-7
Code 128-A
Code 128-B
Code 128-C
Code 39
Code 49
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
Maxi Code
QR Code
UPC-A
UPC-E

Application/Usage:

Desktop

Memory

Standard Memory:

64 MB

Flash Memory:

128 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Media Types & Handling

Media Type:

Label

Media Thickness:

7.87 mil

Maximum Roll Diameter:

5.12"

Maximum Label Width:

4.57"

Label Core Size:

1.15"

Fonts & Emulation

Language Emulation:

BPL

Power Description

Power Source:

Power Adapter

Input Voltage:

24 V DC

Physical Characteristics

Color:

Ivory

Height:

7.7"

Width:

8.4"

Depth:

12.2"

Weight (Approximate):

6.17 lb

Miscellaneous

Platform Supported:

Item Numbers

UNSPSC: 43212108
