Bixolon SLP-TX420 – Barcode Label Printer – 300 dpi – Thermal Transfer – Peeler

Part Number: SLP-TX403DG
Model: SLP-TX420

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi

Product Description:

  Bixolon SLP-TX403 Thermal Transfer Printer - Monochrome - Gray - Desktop - Label Print - USB - Serial - Peel Facility - 4" Print Width - 5 in/s Mono - 300 dpi - Label - 4.57" Label Width

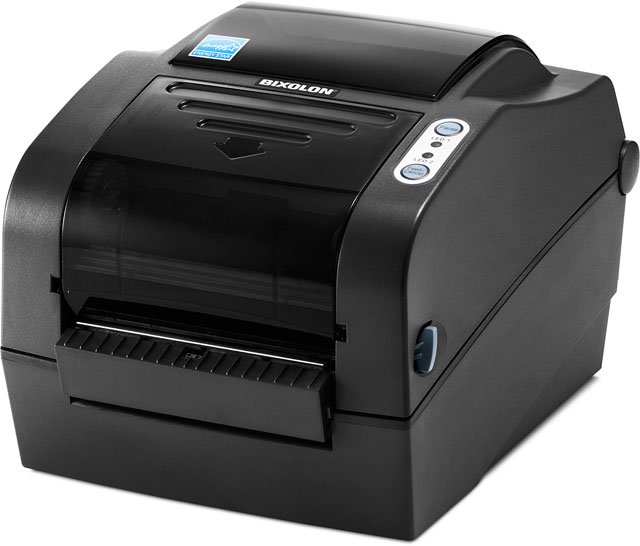

Bixolon SLP-TX420 Barcode Label Printer Model Overview

The SLP-TX420 4 inch Thermal Transfer Desktop Label Printer is designed to meet diverse labeling needs in retail, healthcare, warehouse, and parcel storage environments. This compact and durable printer offers an impressive printing speed of up to 7 inches per second while delivering high-quality labels at a resolution of 203 dpi. It's equipped with built-in Bluetooth for mobile device compatibility and supports optional Ethernet and WLAN connectivity. With intelligent functions like Smart Media Detection™ and Intelligent Leap-over™, product labels are efficiently printed, making it an ideal solution for any business that requires precise and reliable labeling solutions.

Key Features
  • Fast Printing Speed: Up to 7 ips (178 mm/sec).
  • Compact Design: Suitable for 74 m ribbon.
  • Mobile Compatibility: Built-in Bluetooth with MFI iAP2 certification.
  • Smart Features: Auto paper detection and empty label leap-over.
  • Multiple Media Types: Supports gap, black mark, and continuous labels.
  • Energy Efficient: Energy Star certified.


Specifications
  • Printer Method: Thermal Transfer, Direct Thermal
  • Print Speed: Up to 7 ips (178 mm/sec)
  • Print Resolution: 203 dpi
  • Print Width: Up to 108 mm
  • Media Type: Gap, Black Mark, Notch, Continuous, Fan-Fold
  • Media Roll Diameter: Up to 130 mm
  • Weight: 2.35 kg (5.18 lbs.)
  • Power: External Power Adaptor 100-240V AC, 50/60Hz
  • Memory: 64MB SDRAM, 128MB Flash ROM
  • Interface Options: USB + Serial + Parallel; USB + Ethernet + WLAN (optional)
  • Operating Temperature: 5 to 40°C (41 to 104°F)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution:
300 dpi
Maximum Print Width:
4"
Barcode Symbology Supported:
  • PDF-417
  • Codabar
  • NW-7
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 49
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Maxi Code
  • QR Code
  • UPC-A
  • UPC-E
Peel Facility:
Yes
Application/Usage:
Desktop
Memory
Standard Memory:
64 MB
Flash Memory:
128 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
Label
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5.12"
Maximum Label Width:
4.57"
Label Core Size:
1.15"
Fonts & Emulation
Language Emulation:
BPL
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Color:
Gray
Height:
7.7"
Width:
8.4"
Depth:
12.2"
Weight (Approximate):
6.17 lb
Miscellaneous
Platform Supported:
PC
Item Numbers
UNSPSC: 43212108
