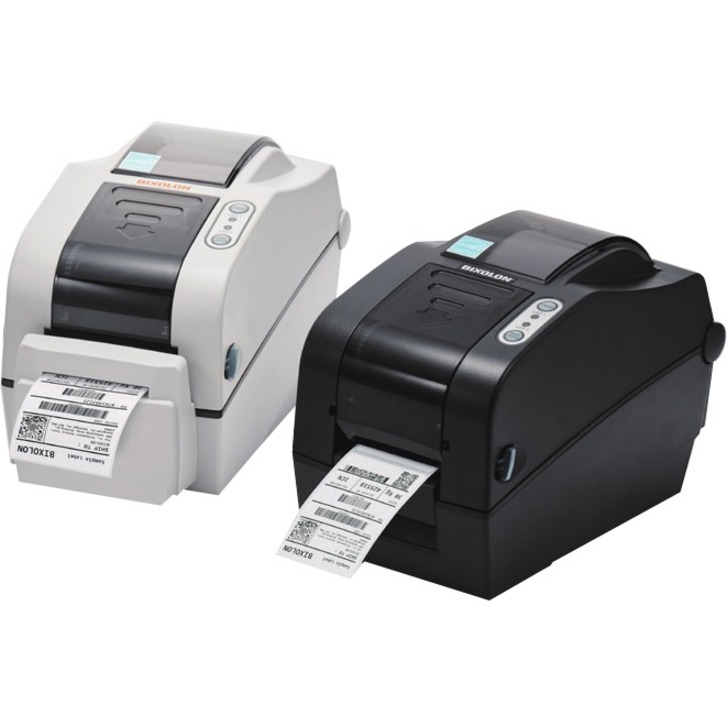

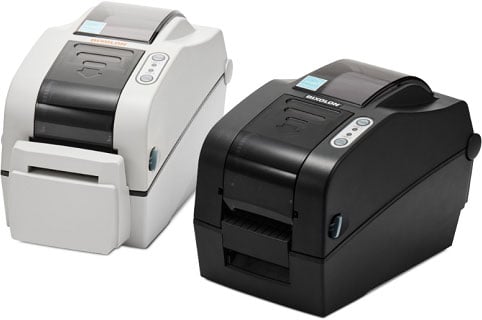

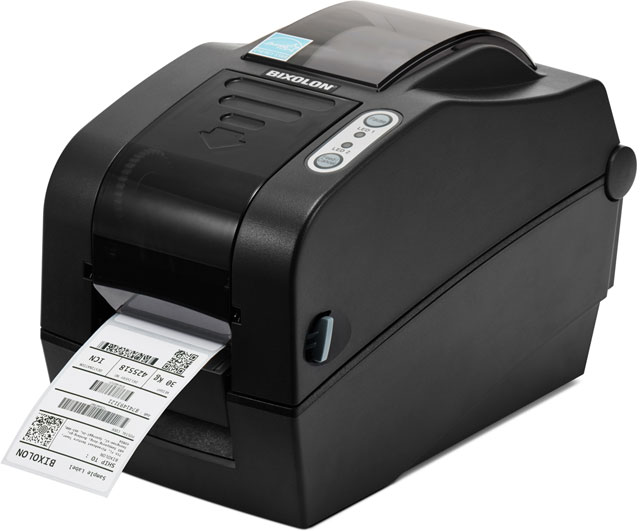

Bixolon SLP-TX220 Barcode Label Printer Model Overview
The SLP-TX220 2-inch Thermal Transfer Desktop Label Printer is a premium and compact solution designed for high performance across various industries, including retail, healthcare, pharmacy, and logistics. With a fast print speed of up to 6 inches per second and smart media detection technology, it guarantees efficient operation. This printer is also the world’s first to feature built-in Bluetooth, allowing for seamless connection to mobile devices. Its user-friendly design includes an easy paper loading mechanism and options for peeling and auto-cutting, making it ideal for busy work environments. Key Features:
Premium performance: Fast processing and printing speed up to 6 ips (152 mm/sec).
Mobile device compatibility: Built-in Bluetooth with MFI IAP2 certification.
Space-saving design: Uses a compact 74 m ribbon for less maintenance.
User-friendly features: Easy paper loading, intuitive control keys, and optional peeler and auto-cutter.
Specifications:
Print Method: Thermal Transfer, Direct Thermal
Print Speed: Up to 6 ips (152 mm/sec)
Print Resolution: 203 dpi
Print Width: Up to 54 mm
Media Types: Gap, Black Mark, Continuous, Fan-Fold
Media Width: 15 ~ 60 mm
Dimensions: 144 x 250 x 173 mm (5.67 x 9.84 x 6.81 inches)
Weight: 1.71 kg (3.77 lbs.)
Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
Memory: 64MB SDRAM, 128MB FlashROM
Interface Options: USB + Serial; Optional: USB + Ethernet + WLAN; USB + WLAN + Bluetooth
What connectivity options does the Bixolon SLP-TX223G offer?
The SLP-TX223G provides multiple connectivity options including RS-232 Serial, USB, and optional Bluetooth or Wi-Fi capabilities. The Bluetooth version features MFi iAP2 certification and includes a smart Bluetooth Auto Switch that allows easy switching from iOS settings to standard Bluetooth mode, making it ideal for mobile and desktop workflows.
What print speed and resolution can I expect from this thermal transfer printer?
The Bixolon SLP-TX223G prints at speeds up to 6 inches per second (152mm/second) with a high resolution of 203 dpi print quality, ensuring fast data processing and clear, professional barcode and label output for various applications.
Is the SLP-TX223G suitable for wrist band and order labeling applications?
Yes, the SLP-TX223G is specifically designed for a range of applications including wrist banding, order labeling, and barcode printing. Its 2-inch thermal transfer format and space-saving 74mm ribbon make it well-suited for these use cases in healthcare, logistics, and retail environments.
What paper handling features does the SLP-TX223G include?
The SLP-TX223G features easy paper loading with an adjustable paper guide for flexible label sizes. Optional Autocutter and Peeler accessories are available to automate label finishing and improve workflow efficiency in high-volume printing operations.
Why is the Bixolon SLP-TX223G considered innovative for a 2-inch desktop printer?
The SLP-TX223G is the world's first 2-inch thermal transfer desktop printer with built-in Bluetooth and MFi iAP2 certification, combining mobile connectivity with traditional desktop printing capabilities. This innovation allows users to print directly from iOS devices while maintaining the speed and quality of a full-featured label printer.
What makes the SLP-TX223G space-efficient for warehouse and office environments?
The SLP-TX223G is designed with a compact footprint and uses a space-saving 74mm ribbon format, making it ideal for environments where desk or shelf space is limited. Despite its compact design, it delivers professional-grade thermal transfer printing performance for barcode labels and other applications.
The Bixolon SLP-TX223G Barcode Label Printer is also known as
SLP-TX223G
Full specifications (PDF)
