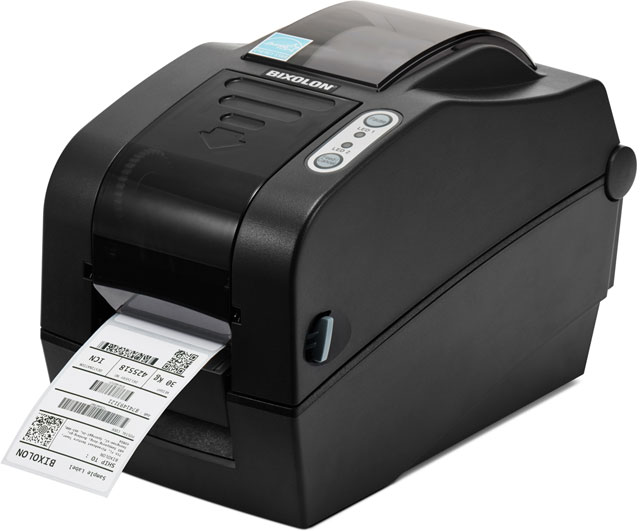

Bixolon SLP-TX220 Barcode Label Printer Model Overview
The SLP-TX220 2-inch Thermal Transfer Desktop Label Printer is a premium and compact solution designed for high performance across various industries, including retail, healthcare, pharmacy, and logistics. With a fast print speed of up to 6 inches per second and smart media detection technology, it guarantees efficient operation. This printer is also the world’s first to feature built-in Bluetooth, allowing for seamless connection to mobile devices. Its user-friendly design includes an easy paper loading mechanism and options for peeling and auto-cutting, making it ideal for busy work environments. Key Features:
Premium performance: Fast processing and printing speed up to 6 ips (152 mm/sec).
Mobile device compatibility: Built-in Bluetooth with MFI IAP2 certification.
Space-saving design: Uses a compact 74 m ribbon for less maintenance.
User-friendly features: Easy paper loading, intuitive control keys, and optional peeler and auto-cutter.
Specifications:
Print Method: Thermal Transfer, Direct Thermal
Print Speed: Up to 6 ips (152 mm/sec)
Print Resolution: 203 dpi
Print Width: Up to 54 mm
Media Types: Gap, Black Mark, Continuous, Fan-Fold
Media Width: 15 ~ 60 mm
Dimensions: 144 x 250 x 173 mm (5.67 x 9.84 x 6.81 inches)
Weight: 1.71 kg (3.77 lbs.)
Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
Memory: 64MB SDRAM, 128MB FlashROM
Interface Options: USB + Serial; Optional: USB + Ethernet + WLAN; USB + WLAN + Bluetooth
What are the print speed and resolution capabilities of the Bixolon SLP-TX223EG?
The Bixolon SLP-TX223EG prints at speeds up to 6 inches per second (152mm/second) with a high resolution of 203 DPI print quality. This combination delivers fast data processing for various label types while maintaining sharp barcode and text clarity for reliable scanning and readability.
What connectivity options does the SLP-TX223EG offer?
The SLP-TX223EG is available with optional Bluetooth or Wi-Fi connectivity in addition to standard RS-232 Serial and Ethernet connections. The Bluetooth version features MFi iAP2 certification and includes a smart Bluetooth Auto Switch for easy switching between iOS settings and standard Bluetooth mode.
Is the Bixolon SLP-TX223EG suitable for mobile and wearable label printing?
Yes, the SLP-TX223EG is specifically designed for wrist banding applications along with order labeling and barcode printing. Its 2-inch thermal transfer format and optional Bluetooth connectivity make it ideal for mobile and on-demand labeling in warehouse and logistics environments.
What paper handling features does the SLP-TX223EG include?
The SLP-TX223EG features an autocutter and peeler options for automated label finishing. It also includes a space-saving 74mm ribbon, easy paper loading, and an adjustable paper guide to accommodate various label sizes and materials.
What is the difference between the SLP-TX223EG and the SLP-TX220?
The SLP-TX223EG is part of the SLP-TX220 series, which was the world's first 2-inch thermal transfer desktop printer with built-in Bluetooth and MFi iAP2 certification. Both models deliver the same core performance and connectivity innovations for modern label printing applications.
What types of applications is the SLP-TX223EG designed for?
The SLP-TX223EG is versatile across a range of applications including wrist banding, order labeling, and barcode printing. Its thermal transfer technology, adjustable paper guide, and optional autocutter and peeler make it suitable for warehouse, logistics, and healthcare labeling needs.
The Bixolon SLP-TX223EG Barcode Label Printer is also known as
SLP-TX223EG
Full specifications (PDF)
