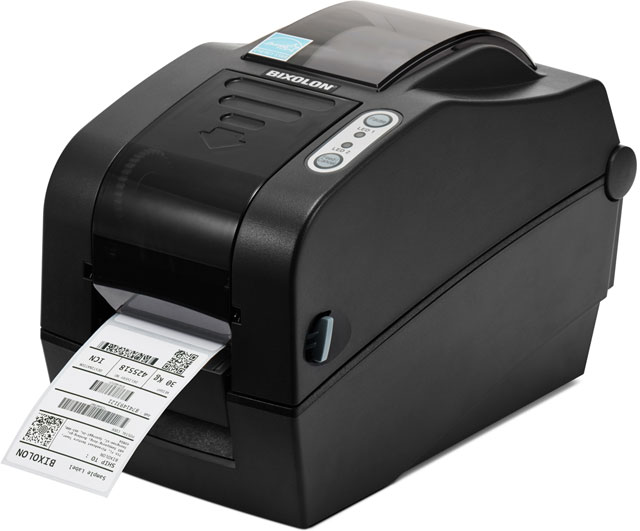

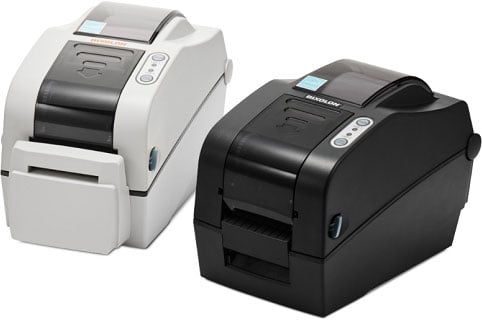

Bixolon SLP-TX220 Barcode Label Printer Model Overview
The SLP-TX220 2-inch Thermal Transfer Desktop Label Printer is a premium and compact solution designed for high performance across various industries, including retail, healthcare, pharmacy, and logistics. With a fast print speed of up to 6 inches per second and smart media detection technology, it guarantees efficient operation. This printer is also the world’s first to feature built-in Bluetooth, allowing for seamless connection to mobile devices. Its user-friendly design includes an easy paper loading mechanism and options for peeling and auto-cutting, making it ideal for busy work environments. Key Features:
Premium performance: Fast processing and printing speed up to 6 ips (152 mm/sec).
Mobile device compatibility: Built-in Bluetooth with MFI IAP2 certification.
Space-saving design: Uses a compact 74 m ribbon for less maintenance.
User-friendly features: Easy paper loading, intuitive control keys, and optional peeler and auto-cutter.
Specifications:
Print Method: Thermal Transfer, Direct Thermal
Print Speed: Up to 6 ips (152 mm/sec)
Print Resolution: 203 dpi
Print Width: Up to 54 mm
Media Types: Gap, Black Mark, Continuous, Fan-Fold
Media Width: 15 ~ 60 mm
Dimensions: 144 x 250 x 173 mm (5.67 x 9.84 x 6.81 inches)
Weight: 1.71 kg (3.77 lbs.)
Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
Memory: 64MB SDRAM, 128MB FlashROM
Interface Options: USB + Serial; Optional: USB + Ethernet + WLAN; USB + WLAN + Bluetooth
What print speed and resolution does the Bixolon SLP-TX223CG offer?
The SLP-TX223CG delivers printing speeds up to 6 inches per second (152mm/second) with a high resolution of 203 dpi print quality. This combination ensures fast data processing while maintaining sharp, scannable barcode output for warehouse and logistics applications.
What connectivity options are available on the SLP-TX223CG?
The SLP-TX223CG connects via RS-232 Serial and USB interfaces for reliable data transmission. The printer also features optional Bluetooth and Wi-Fi connectivity, with MFi iAP2 certification for iOS compatibility and a smart Bluetooth Auto Switch for seamless mode switching.
Is the Bixolon SLP-TX223CG suitable for mobile and portable labeling applications?
Yes, the SLP-TX223CG is designed as a 2-inch thermal transfer desktop label printer that works well for mobile applications including wrist banding, order labeling, and barcode printing. Its optional Bluetooth connectivity makes it ideal for integration with mobile devices in warehouse and logistics environments.
What optional features does the SLP-TX223CG include?
The SLP-TX223CG is available with optional Autocutter and Peeler accessories to automate label finishing. These options enhance workflow efficiency for high-volume labeling operations in warehouses and distribution centers.
How easy is it to load media into the SLP-TX223CG?
The SLP-TX223CG features easy paper loading with an adjustable paper guide for quick media setup and changeover. The printer uses a space-saving 74mm ribbon design, reducing material costs and simplifying supply management.
What types of labels can I print with the SLP-TX223CG?
The SLP-TX223CG is a thermal transfer printer perfect for a range of applications including wrist bands, order labels, and barcode labels. Its 2-inch print width and 203 dpi resolution make it suitable for various label formats commonly used in warehouse, logistics, and retail operations.
The Bixolon SLP-TX223CG Barcode Label Printer is also known as
SLP-TX223CG
Full specifications (PDF)
