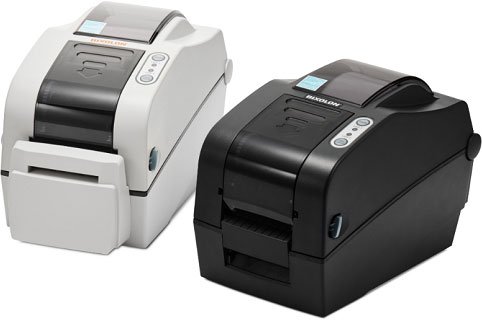

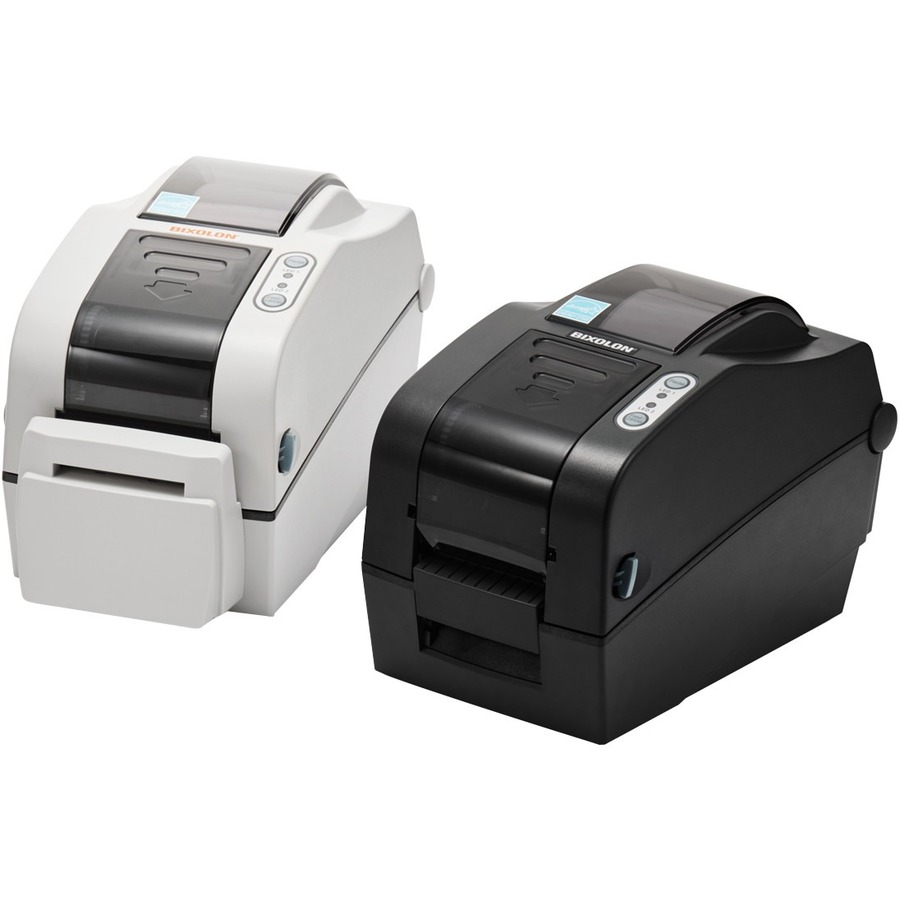

Bixolon SLP-TX220 Barcode Label Printer Model Overview
The SLP-TX220 2-inch Thermal Transfer Desktop Label Printer is a premium and compact solution designed for high performance across various industries, including retail, healthcare, pharmacy, and logistics. With a fast print speed of up to 6 inches per second and smart media detection technology, it guarantees efficient operation. This printer is also the world’s first to feature built-in Bluetooth, allowing for seamless connection to mobile devices. Its user-friendly design includes an easy paper loading mechanism and options for peeling and auto-cutting, making it ideal for busy work environments. Key Features:
Premium performance: Fast processing and printing speed up to 6 ips (152 mm/sec).
Mobile device compatibility: Built-in Bluetooth with MFI IAP2 certification.
Space-saving design: Uses a compact 74 m ribbon for less maintenance.
User-friendly features: Easy paper loading, intuitive control keys, and optional peeler and auto-cutter.
Specifications:
Print Method: Thermal Transfer, Direct Thermal
Print Speed: Up to 6 ips (152 mm/sec)
Print Resolution: 203 dpi
Print Width: Up to 54 mm
Media Types: Gap, Black Mark, Continuous, Fan-Fold
Media Width: 15 ~ 60 mm
Dimensions: 144 x 250 x 173 mm (5.67 x 9.84 x 6.81 inches)
Weight: 1.71 kg (3.77 lbs.)
Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
Memory: 64MB SDRAM, 128MB FlashROM
Interface Options: USB + Serial; Optional: USB + Ethernet + WLAN; USB + WLAN + Bluetooth
What are the printing speed and resolution specifications of the Bixolon SLP-TX220DG?
The SLP-TX220DG prints at speeds up to 6 inches per second (152mm/second) with a high resolution of 203 dpi, delivering fast data processing for various label types. This combination of speed and clarity makes it ideal for applications requiring both efficiency and print quality.
What connectivity options does the SLP-TX220DG offer?
The SLP-TX220DG features USB and Serial connectivity as standard, with optional Bluetooth or Wi-Fi capabilities available. The Bluetooth option includes MFi iAP2 certification and features a smart Bluetooth Auto Switch that allows easy switching from iOS settings to standard Bluetooth mode.
Is the Bixolon SLP-TX220DG suitable for mobile and on-demand label printing?
Yes, the SLP-TX220DG is a 2-inch desktop thermal transfer label printer designed for a range of applications including wrist banding, order labelling, and barcode printing. The optional Bluetooth connectivity makes it well-suited for mobile printing scenarios when paired with compatible devices.
What label width and print length does the SLP-TX220DG support?
The SLP-TX220DG supports a maximum print width of 2.13 inches and a maximum print length of 78.74 inches. It features an adjustable paper guide and can handle label, gap, black mark, notch, continuous label, and fanfold formats up to 2.36 inches in label width.
Does the SLP-TX220DG have paper loading and space-saving features?
Yes, the SLP-TX220DG is designed with easy paper loading and features a space-saving 74mm ribbon to minimize footprint. It also offers optional Autocutter and Peeler options to enhance productivity and reduce manual label finishing.
What thermal printing modes does the SLP-TX220DG support?
The SLP-TX220DG supports both direct thermal and thermal transfer printing modes, providing flexibility for different label stock requirements and application needs. This dual-mode capability allows you to choose the most cost-effective printing method for your specific use case.
The Bixolon SLP-TX220DG Barcode Label Printer is also known as
SLP-TX220DG
Full specifications (PDF)
