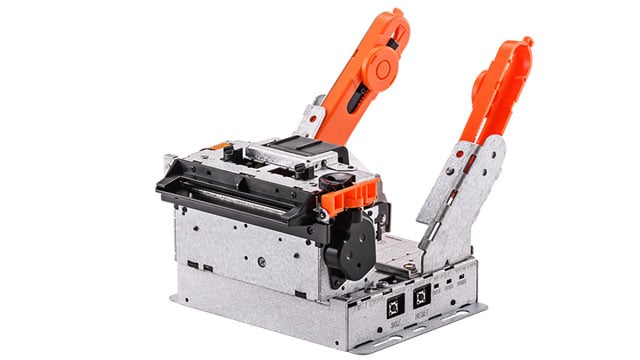

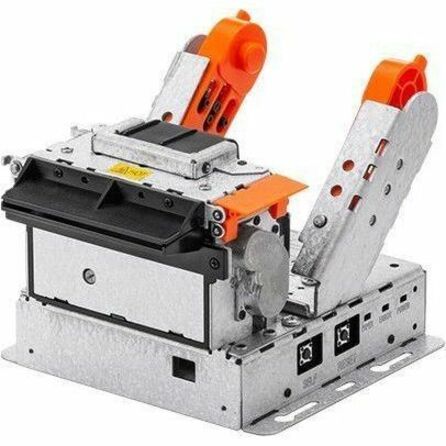

Bixolon BK3-31 – Receipt Printer – 203 dpi

Part Number: BK3P-32Z
Model: BK3-31
Add to My Shopping List Add to Compare
$377.63

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Kiosk
Interface Options
Ethernet, USB, Serial
Print Resolution
203 dpi
Max Print Width
3 inch

Product Description:

  Receipt Printer, Bixolon BK3-31, Bixolon, 3-Inch Thermal Kiosk Printer, Presenter, 250Mm/Sec, 203Dpi, 80Mm Diameter, USB, Serial Interface Connector (Male), Ethernet, Power Connector (Dc Jack), Right Lever, Media Diameter Roll Up To 250Mm, Receipts Only
Explore all Bixolon BK3-21 Receipt Printers
Add to Quote
Bixolon BK3P-32Z Receipt Printer
Bixolon BK3P-32Z Receipt Printer
Bixolon BK3P-32Z Receipt Printer
Bixolon BK3P-32Z Receipt Printer
Bixolon BK3P-32Z Receipt Printer
Bixolon BK3P-32Z Receipt Printer Bixolon BK3P-32Z Receipt Printer Bixolon BK3P-32Z Receipt Printer Bixolon BK3P-32Z Receipt Printer Bixolon BK3P-32Z Receipt Printer
Full specifications (PDF)

Bixolon BK3-21 Receipt Printer Model Overview

The BK3-21 2-inch Kiosk Printer is a compact and reliable solution designed for various applications in healthcare, retail, hospitality, and ticketing. With impressive printing speeds of up to 250 mm per second at 203 dpi, it ensures swift and efficient operation. Its user-centered design allows for easy customization and seamless integration into limited spaces, featuring an adjustable media width frame for diverse media options. Additionally, the printer supports a paper-saving mode that reduces paper usage by up to 25%, making it a cost-effective and environmentally friendly choice.


Key Features
  • Fast printing speed up to 250 mm/sec at 203 dpi
  • Compact design suitable for constrained kiosk spaces
  • Supports media widths: 20/58/60 mm
  • Multi-position near-end sensor for efficient paper monitoring
  • Easy paper loading with large roll capacity of 80/102/120 mm

Specifications
  • Print Method: Direct Thermal
  • Print Speed: Up to 250 mm/sec
  • Print Resolution: 203 dpi
  • Media Characteristics:
    • Media Type: Receipt
    • Media Roll Diameter: 80/102/120 mm
    • Media Thickness: 0.05 - 0.12 mm
  • Dimensions:
    • Media Roll Diameter 80: 109 x 130 x 91 mm
    • Media Roll Diameter 102: 109 x 137 x 99 mm
    • Media Roll Diameter 120: 109 x 144 x 105 mm
  • Weight: 600 g
  • Operating Temperature: -20~60 °C
  • Driver/Utility: Windows, Linux, Mac
Bixolon BK3P-32Z Receipt Printer Overview

Powerful Printing Performance

- Fast speed up to 250 mm per second at 203 dpi

- Long term dependable operation in a wide range of tempereture

- Supporting selectable media widths : 20 / 58 / 60 mm

- Diverse drivers and SDKs for major operating systems including Android, Windows, and Linux

- Supporting Paper Saving Mode reducing paper usage up to 25 %

User-Centered Design

- Various configuration options; upper or lower bezels can be tailored for a large variety of applications

- The compact and lightweight design for constricted kiosk spaces

- Easily adjustable media width frame

- Smooth and seamless paper feeding with additional roller-tension

- Power switch and reset button available on both sides of the printer making it easy to reboot

High Flexibility

- USB(V2.0 Full Speed) + Serial(9P-Male, Connector type) connectivity supported for fast and stable communication

- Large paper roll capacity reducing the number of roll changes: Media roll diameter of 80 / 102 / 120 mm

- Multi-Position Near-End-Sensor for efficiently monitoring status of paper

Full specifications (PDF)
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
9.84 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.13"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • ITF
  • UPC-A
  • UPC-E
  • QR Code
  • PDF417
  • Data Matrix
  • EAN-8
  • EAN-13
  • GS1 DataBar Limited
  • GS1 DataBar Stacked
  • GS1 DataBar Truncated
  • GS1 DataBar Expanded
  • GS1 DataBar Omnidirectional
  • GS1-128
  • 1D
  • 2D
Application/Usage:
  • Healthcare
  • Hospitality
  • Retail
  • Ticketing
  • Kiosk
Features:
  • Compact
  • Lightweight
Character Sets:
  • 95 Alphanumeric
  • 32 International
  • 128 x 35 Graphic
Print Head Life:
100 km
Installation:
Horizontal/Vertical
Connectivity Technology:
Wired
Fonts Included:
  • Font A: 12 x 24
  • Font B: 9 x 17
  • Font C: 9 x 24
  • JPN: 24 x 24
  • CHN
  • KOR
Print Technology:
Direct Thermal
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
USB Standard:
USB 2.0
Network & Communication
Ethernet:
Yes
Media Types & Handling
Media Type:
  • Receipt
  • Ticket
  • Wristband
  • Label
Media Sensor:
  • Paper End Sensor
  • Black Mark Sensor
  • Cover Open Sensor
  • Paper Near End Sensor
Media Thickness:
4.72 mil
Maximum Roll Diameter:
4.72"
Maximum Label Width:
2.36"
Fonts & Emulation
Language Emulation:
BXL/POS
Power Description
Power Source:
AC Supply
Frequency:
  • 60 Hz
  • 50 Hz
Environmental Conditions
Operating Temperature:
-4°F (-20°C) - 140°F (60°C)
Operating Relative Humidity:
10% - 95%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 95%
Physical Characteristics
Weight (Approximate):
1.32 lb
Item Numbers
UNSPSC: 45101512
The Bixolon BK3P-32Z Receipt Printer is also known as BK3P32Z
