The BK3-21 2-inch Kiosk Printer is a compact and reliable solution designed for various applications in healthcare, retail, hospitality, and ticketing. With impressive printing speeds of up to 250 mm per second at 203 dpi, it ensures swift and efficient operation. Its user-centered design allows for easy customization and seamless integration into limited spaces, featuring an adjustable media width frame for diverse media options. Additionally, the printer supports a paper-saving mode that reduces paper usage by up to 25%, making it a cost-effective and environmentally friendly choice.
Key Features
Fast printing speed up to 250 mm/sec at 203 dpi
Compact design suitable for constrained kiosk spaces
Supports media widths: 20/58/60 mm
Multi-position near-end sensor for efficient paper monitoring
Easy paper loading with large roll capacity of 80/102/120 mm
Specifications
Print Method: Direct Thermal
Print Speed: Up to 250 mm/sec
Print Resolution: 203 dpi
Media Characteristics:
Media Type: Receipt
Media Roll Diameter: 80/102/120 mm
Media Thickness: 0.05 - 0.12 mm
Dimensions:
Media Roll Diameter 80: 109 x 130 x 91 mm
Media Roll Diameter 102: 109 x 137 x 99 mm
Media Roll Diameter 120: 109 x 144 x 105 mm
Weight: 600 g
Operating Temperature: -20~60 °C
Driver/Utility: Windows, Linux, Mac

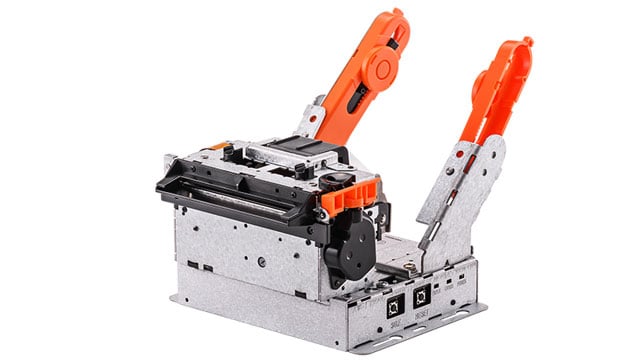

Bixolon BK3P-31ZC Receipt Printer Overview
Powerful Printing Performance
- Fast speed up to 250 mm per second at 203 dpi
- Long term reliable operation in a wide range of temperatures
- Supporting selectable media widths of 20 / 58 / 60 / 80 / 83 mm
- Ideal ticket solution handling media thickness of up to 0.15 mm - A variety of drivers and SDKs for major operating systems
- Reducing paper usage up to 25% resulting in less waste and lower CO2 emission
User-Centered Design
- Adapatable to hold media diameter of 80 / 102 / 120 / 150 mm (BK3-32: up to 250 mm)
- The compact and lightweight design to fits perfectly into constricted spaces
- Power switch and reset button are available on both sides of the printer for easy reboot
- Multi-position near end sensor for efficiently monitoring status of paper
- Presenter option supported to reduce paper jamming and vandalism
High Flexibility
- Standard Interface: USB (V2.0 Full Speed) + Serial
- Optional Interface: USB (V2.0 Full Speed) + Serial + Ethernet
- Power: DC-Jack or 2P Connector
- Serial: 9P Male or 5P Connector
- Range of bezel options: None Bezel / 4 Types of Standard Bezel / LED Bezel
The Bixolon BK3P-31ZC Receipt Printer is also known as
BK3P31ZC
