The BCD-2000 Customer Display by BIXOLON enhances your retail or banking experience with its easy-to-read STN LCD monitor, showcasing clear blue and white visuals. With a maximum capacity of 120 characters and adjustable alignment options, this unit allows for optimal information display that is easily viewed from various angles. Designed for versatility, it features a flexible height adjustment and a range of connection options. Built with reliability in mind, the BCD-2000 is engineered to endure prolonged usage while maintaining functionality across multiple platforms.
Key features:
Flexible character alignment: Adjust display horizontally, vertically, or by font and line spacing.
Enhanced reliability: Achieves 250% improved performance compared to previous models.
Easy image downloads: Utilizes a simple utility for image management.
Rich compatibility: Works seamlessly with major operating systems including Android™, iOS™, and Windows®.
Adjustable design: Features a 360° rotation and a 13° angle adjustor for optimal viewing angles.
Specifications:
Display:
Display Method: STN LCD (mono)
Display Color: Blue/White
Active Area: 118.5 x 45.5 mm
Visual Area: 127.2 x 33.9 mm
Brightness: 100 cd/m2
Character Number: 30 Letters x 4 Lines
Character Font: 8x16, 9x17
Power & Interface:
Power - Voltage: USB: 5VDC±5%, RS232: 5VDC ~ 24VDC
Power - Current: 500mA
Interface: RS232/USB
Exterior:
Body Color: Ivory/Dark-Gray
Overall Dimension: Varies by model
Weight: 850 g
Environment & Reliability:
Operating Temperature: 0-40°C / 32-104°F
Operating Humidity: 10-80%
Reliability (Display): 50,000 hours (Backlight)

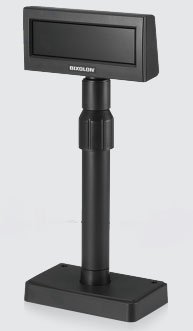

Bixolon BCD-2000AUG Customer Display Overview
Improved Performance
Flexible character alignment on display (Horizontal, vertical, font space and line space)
Adjust alignment (Center, left and right)
Maximum 120 characters display
Two character font available (8 x 16, 9 x 17)
250% enhanced reliability as compared BCD-1000/1100
Simple download and display image by utility
Highly Flexible Design
Adjustable display height
Optional wall mount
13° five option angle adjustor and 360° screen rotation
Easy connection to the host via USB cable pass-through design
Hardware Compatibility
Easy plug and play USB set up
Compatible with all major operating systems including Android™, iOS™ and Windows®
Full specifications (PDF)
