Device Function:
IP Camera Testing
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 5506-231 Data Networking Overview
- Multiple camera discovery, including ONVIF
- Wireless connection to handheld devices
- Native app for installation of Axis cameras
- Powerful battery
- Support for PoE+
Easy and intuitive to use

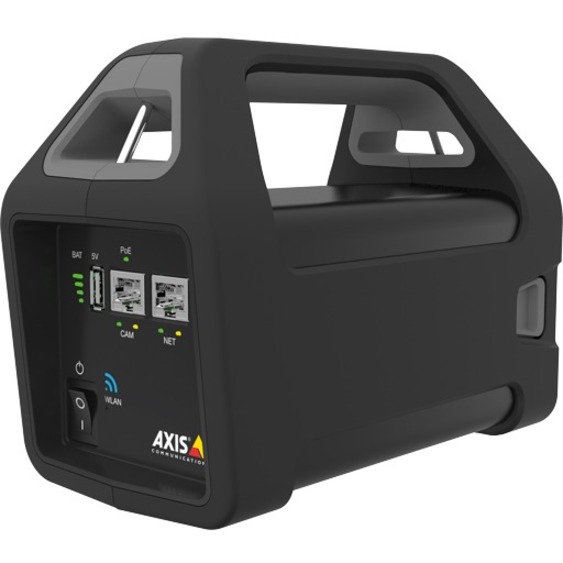

AXIS T8415 Wireless Installation Tool is an easy-to-use tool that help installers during the installation of IP cameras. The tool includes a free-of-charge application which is compatible with Android and iOS devices. The app is called AXIS Wireless Installation Tool, downloadable from App Store or Google Play.
The live video feed is displayed on the smartphone via a direct Wi-Fi connection. From the live video it is easy to access basic key features to set the camera's optimal viewing angle, focus and IP settings.
AXIS T8415 powers up the network camera directly from its powerful battery and offers an integrated Wi-Fi access to connect with the smartphone for easy and quick view of camera Live view.
Wireless connection
AXIS T8415 powers up the network camera via Power over Ethernet, thanks to its powerful battery and offers an integrated Wi-Fi access point to connect with the handheld device for easy and quick view of the camera Live view and basic setings.
Through a USB port on AXIS T8415, the handheld device is always charged and ready to be used.
Install more cameras
Be more productive when installing cameras thanks to its quick and easy features together with a powerful battery that last the whole day.
Technical Information
Interfaces/Ports
HDMI:
No
DVI:
No
VGA:
No
USB:
Yes
Serial Port:
No
Serial V.35 Interface:
No
Audio Line Out:
No
PoE (RJ-45) Port:
Yes
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
Wireless Specifications
Wireless LAN:
Yes
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Network Standard:
10/100Base-TX
Ethernet Technology:
Fast Ethernet
Battery Information
Number of Batteries Supported:
1
Battery Size Supported:
12V
Battery Chemistry:
Lead Acid
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
5.9"
Width:
3.9"
Depth:
8.1"
Weight (Approximate):
4.85 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
- REACH
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0000005506231, 0037136666350, 7331021046702
UPC:
000005506231, 037136666350
EAN:
0000005506231, 0037136666350, 7331021046702
UNSPSC:
41113600
Get help from a Barcoding Expert!
The Axis 5506-231 Data Networking is also known as
AXC-5506231
