Axis 5500-001 Cables, Connectors, and Adapters

Part Number: 5500-001
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$173.86
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Minimum Output Voltage
12 V DC
Maximum Output Voltage
24 V DC
Minimum Output Current
2.25 A
Maximum Output Current
4.50 A

Product Description:

  Cables, Connectors, and Adapters, Axis, T8127 Power over Ethernet Splitter, 24 V DC, 4.50 A Output, Ethernet Input Port(s), Ethernet Output Port(s), 60 W
Explore all Axis Accessories
Add to Quote
Axis 5500-001 Cables, Connectors, and Adapters
Axis 5500-001 Cables, Connectors, and Adapters

Axis Accessory Model Overview

Products and parts from Axis.
Axis 5500-001 Cables, Connectors, and Adapters Overview

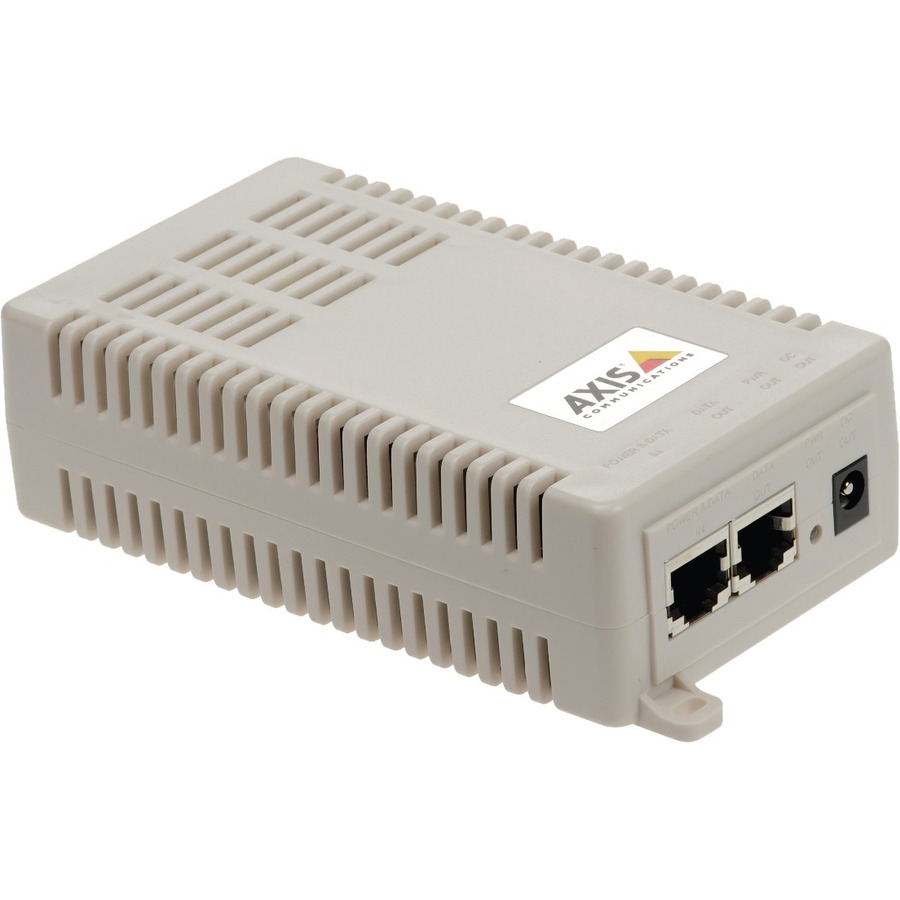

A splitter is used to split the power and data in an Ethernet cable into two separate cables, which then can be connected to a network device that has no built - in support for P ower over Ethernet (PoE). AXIS T8127 60 W Splitter 12/24 V DC
enables Axis' network products and accessories, such as Axis' illuminators, media converters etc.. to receive 12 or 24 VDC with up to 4.5A. The splitter can be powered from any Axis midspan or P oE switch. AXIS T8127 offers an easy , fast
and cost - effective solution compared with adding a power supply to your system.
Power Description
Minimum Output Voltage:
12 V DC
Maximum Output Voltage:
24 V DC
Minimum Output Current:
2.25 A
Maximum Output Current:
4.50 A
Maximum Output Power:
60 W
Interfaces/Ports
Input Ports:
Ethernet
Output Ports:
Ethernet
Physical Characteristics
Height:
1.5"
Width:
2.9"
Depth:
5.1"
Weight (Approximate):
10.05 oz
Miscellaneous
Compatibility:
Axis Products:
  • T90D20 IR-LED
  • T90D25 W-LED
  • T90D30 IR-LED
  • T90D35 W-LED
  • T8508 PoE+ Network Switch
  • T8516 PoE+ Network Switch
  • T8524 PoE+ Network Switch
  • T8604 Media Converter Switch
  • T8606 Media Converter Switch 24 V DC
NDAA Compliant:
Yes
Item Numbers
GTIN: 7331021052536
EAN: 7331021052536
UNSPSC: 39121006
