Axis 0736-001 Accessory

Axis - F1035-E Sensor Unit (12 m)
$372.85
Add to Quote
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 0736-001 Accessory Overview
  • Flexible, rugged design for indoor, outdoor and mobile use
  • Fisheye lens with HDTV 1080p resolution
  • Ultra-wide 194° horizontal field of view

Discreet, wide area surveillance

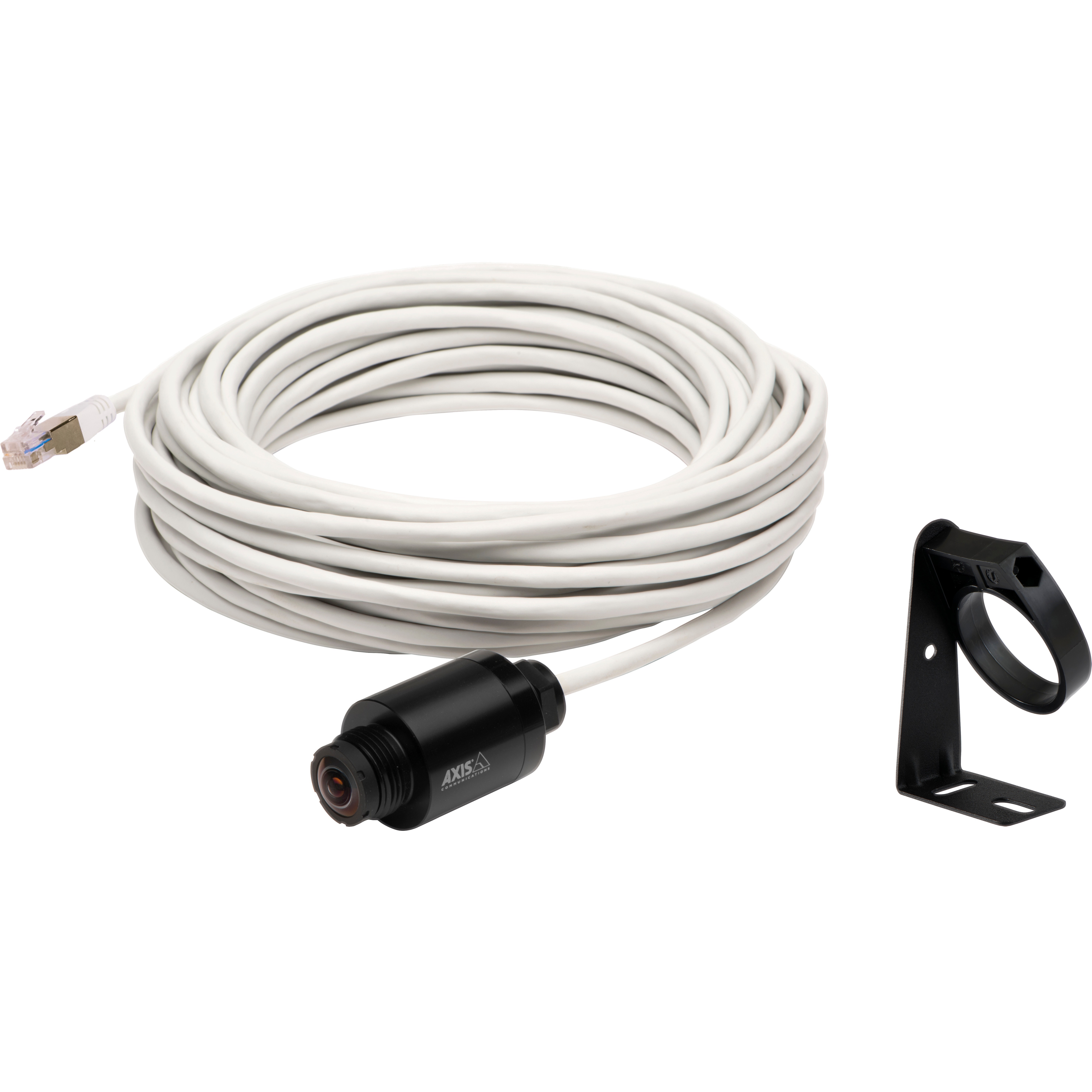

AXIS F1035-E Sensor Unit, together with an AXIS F Main Unit, provides wide area coverage with a fisheye view. It is ideal for highly discreet overview surveillance in indoor, outdoor and mobile surveillance applications; for example, at entrances, long corridors, around an ATM (automated teller machine), in emergency vehicles, buses and trams.

The small sensor unit can be installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated AXIS F1035-E withstands dust, rain, snow, vibrations, shock and temperature fluctuations.

AXIS F1035-E comprises an image sensor and a fisheye lens that provides a 194° horizontal field of view in 1080p resolution. It comes with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. The main unit can be placed further away in an indoor location, inside a vehicle or in an outdoor enclosure. AXIS F1035-E comes with an AXIS F8201 Vari-angle Mounting Bracket that enables the sensor unit to be secured and tilted in any position.

Physical Characteristics
Product Material:
Aluminum
Material Details:
  • Aluminum - Casing
Form Factor:
  • Flush Mount
  • Wall Mountable
  • Ceiling Mountable
Height:
2.4"
Width:
1.2"
Depth:
1.2"
Weight (Approximate):
12.16 oz
Miscellaneous
Package Contents:
  • F1035-E Sensor Unit
  • F8201 Mounting Bracket
  • Installation Guide
Additional Information:
  • Cable Length: 39 ft
  • Image sensor: 1/2.8" (effective) progressive scan RGB CMOS
  • Minimum illumination: Color: 0.3 lux
  • Lens: 1.3 mm, F2.8: 194° view with AXIS F41/F44; 112° view with AXIS F44 in HDTV 720p
  • Operating conditions: Humidity 10-100% RH (condensing)
Application/Usage:
  • Indoor
  • Outdoor
  • Automotive
  • Surveillance
Certifications & Standards:
  • ECE R10 rev.04
  • EN 50121-4
  • IEC/EN/UL 60950-1
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-14
  • IEC 60068-2-30
  • IEC 60068-2-78
  • IEC 60529 IP4X
  • IEC 62236-4
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-1
  • EN 61000-6-2
  • FCC Part 15 Subpart B Class B
  • ICES-003 Class B
  • VCCI Class B
  • C-tick AS/NZS CISPR 22 Class B
  • KCC KN22 Class B KN24
  • EN 50581
  • EN 50155 (vibration, shock, bump)
  • IEC 60068-2-60
  • IEC 60529 IP66
  • IEC 60721-3-5 5M3 (vibration, shock)
  • IEC/EN/UL 60950-22
  • NEMA 250 Type 4X
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7331021045750
EAN: 7331021045750
UNSPSC: 39121900
