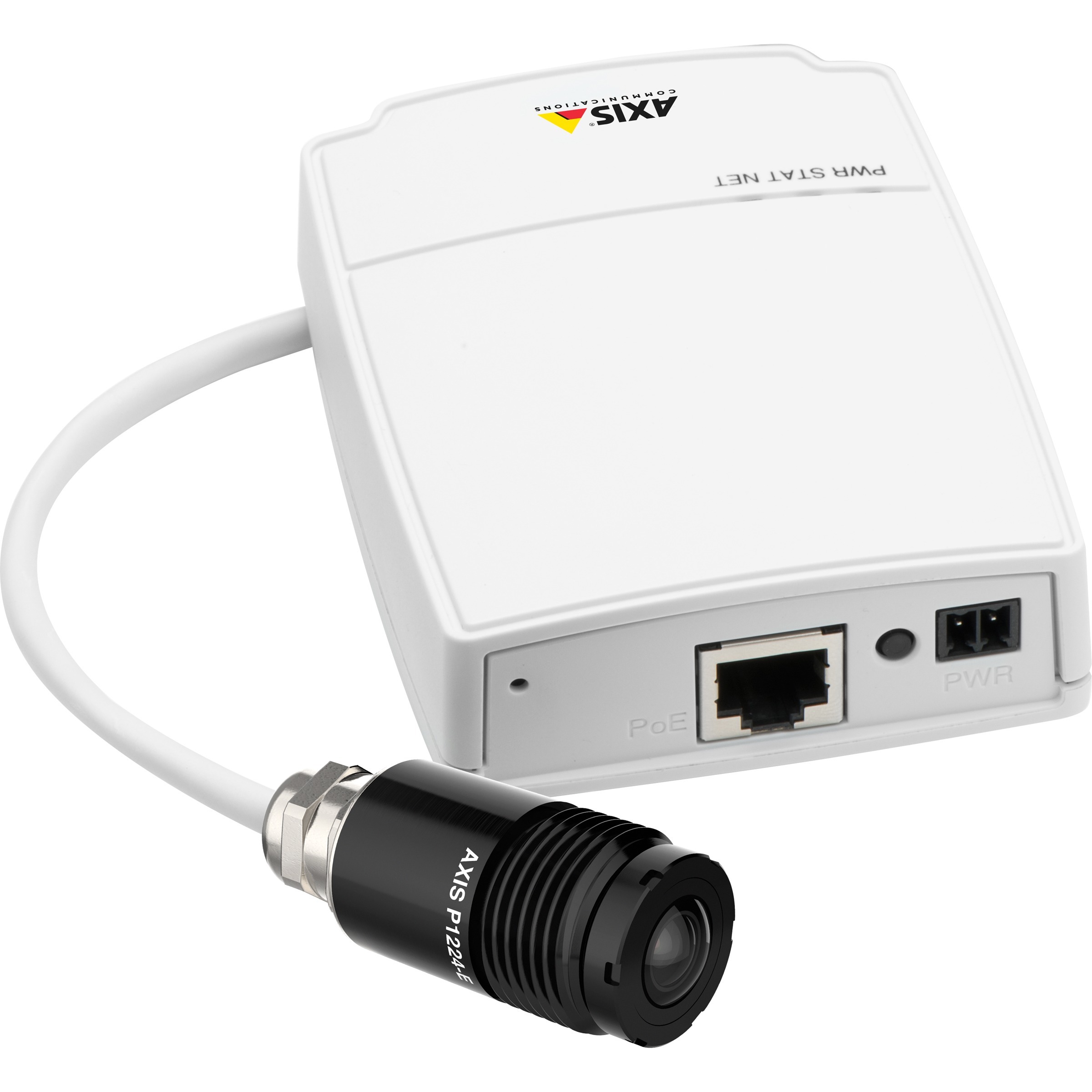

Axis 0654-001 Security Camera

Axis - AXIS P1224-E Network Camera - MPEG-4, MJPEG, H.264 - 1280 x 720 - CMOS - Fast Ethernet - Surface Mount, Flush Mount, Ceiling Mount
  • For remote surveillance needs, this network camera is best suited
  • Up to 1280 x 720 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 1.56 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/2.8 maximum aperture for productive capturing according to focal length and lighting conditions
  • Fixed Focus focus mode for clarity and precision to ensure maximum productivity
  • HD recording format for exceptional video quality with maximum productivity
  • Fixed lens type to ensure maximum surveillance productivity with added feasibility
  • Surface Mount mount type ensures optimal results and maximum convenience
  • Privacy Masking feature for maximum efficiency and convenience
Read More
$539.00
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 0654-001 Security Camera Overview

AXIS P12 Network Camera Series offers tiny HDTV 720p cameras for exceptionally discreet indoor and outdoor surveillance-ideal for ATMs (automated teller machines), banks, stores, hotels, architectural buildings and offices. The cameras can be installed on or flush-mounted in walls or ceilings, in elevators or in limited spaces such as in ATMs or doorways.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/4"
Maximum Illumination:
10000 lux
Color Supported:
Color
Field of View:
145°
Video
Video Formats:
  • MPEG-4
  • MJPEG
  • H.264
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.56 mm
Lens Included:
Yes
Wide Angle:
Yes
Maximum Aperture:
f/2.8
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/24500 Second
Longest Shutter Speed:
1/6 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv4
  • IPv6
  • HTTP
  • HTTPS
  • SSL/TLS
  • FTP
  • DiffServ (QoS)
  • SMB/CIFS
  • SMTP
  • Bonjour
  • UPnP
  • SNMP (v1/v2c/v3)
  • SNMP (MIB-2)
  • DNS
  • DynDNS
  • NTP
  • RTSP
  • RTP
  • TCP
  • UDP
  • IGMP
  • RTCP
  • ICMP
  • DHCP
  • ARP
  • SOCKS
Remote Management:
Yes
Storage
Flash Memory Capacity:
128 MB
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Maximum Power Consumption:
6.49 W
Physical Characteristics
Mount Type:
  • Surface Mount
  • Flush Mount
  • Ceiling Mount
Product Color:
Black
Height:
2"
Width:
0.8"
Diameter:
0.8"
Weight (Approximate):
8.80 oz
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
  • Privacy Masking
  • Tampering Alarm
  • Motion Detection
  • SD Card Local Storage
  • Back Light Compensation (BLC)
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • P1224-E Network Camera
  • Mounting Kit
  • Installation Guide
  • Installation and Management Software CD
  • Windows Decoder 1-User License
  • AVHS Authentication key
Certifications & Standards:
  • IP66
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-1
  • FCC Part 15 Subpart B Class B
  • ICES-003 Class B
  • VCCI Class B
  • C-tick AS/NZS CISPR 22 Class B
  • KCC KN22 Class B
  • KN24
  • IEC/EN/UL 60950-1
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-6 (Vibration) Class 4M4
  • IEC 60068-2-27 (shock) Class 4M3
  • 60068-2-78 Class 3K3
  • IEC/EN/UL 60950-22
  • IEC/EN 60529 IP66
  • NEMA 250 Type 4X
  • IEC 60068-2-14
  • IEC 60068-2-30
  • IEC 60068-2-78 Class 4K3
Ingress Protection Rating:
IP66
Security Features:
  • Password Protection
  • IP Address Filtering
  • HTTPS Encryption
  • IEEE 802.1X Network Access Control
  • Digest Authentication
  • User Access Log
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7331021043206
EAN: 7331021043206
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 0654-001 Security Camera is also known as AXC-0654001
