Axis 0584-021 Security Camera

High-performance, flexible 6-channel video encoder

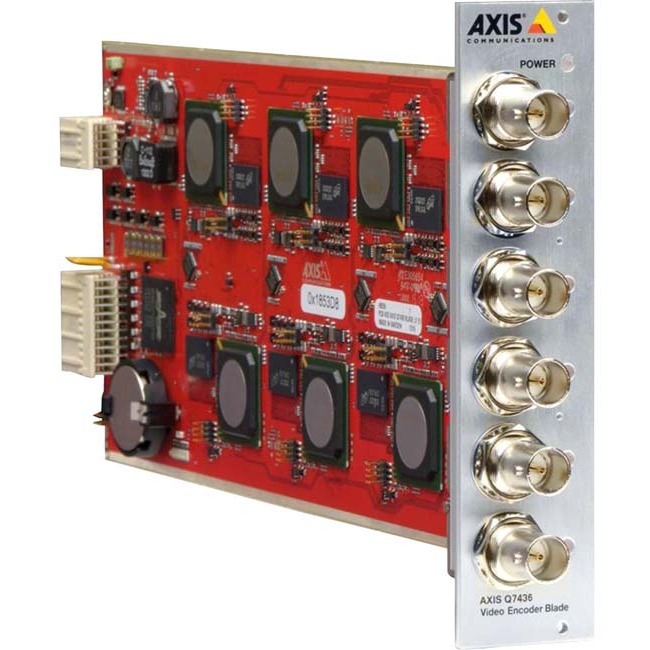

AXIS Q7436 Video Encoder Blade is a high performance 6-channel solution offering outstanding performance and great flexibility. The video encoder blade enables a large number of analog cameras to be integrated into an IP-based, high-density video surveillance system, ideal for demanding locations such as airports, railway stations and city surveillance.

AXIS Q7436 fits perfectly into AXIS Q7920 Video Encoder Chassis, which is a rack mount encoder chassis with support for up to 84 analog cameras. The video encoder blade enables 6 analog video channels to be converted into high quality H.264 and Motion JPEG streams. AXIS Q7436 can deliver multiple, individually configurable video streams from each channel, at full frame rate in all resolutions.

It supports 60/50 frames per second, providing smooth video in high motion streams. AXIS Q7436 offers great image features such as reduced noise, enhanced sharp- ness and optimized contrast, allowing for even better image quality output.

AXIS Q7436 provides outstanding performance and in- telligent video capabilities, such as tampering alarm and motion detection, in addition to Axis Camera Applica- tion Platform applications.

The video encoder blade offers significant installation savings, by allowing PTZ control over the coaxial cable* in addition to the standard support for PTZ cameras using the serial ports.
