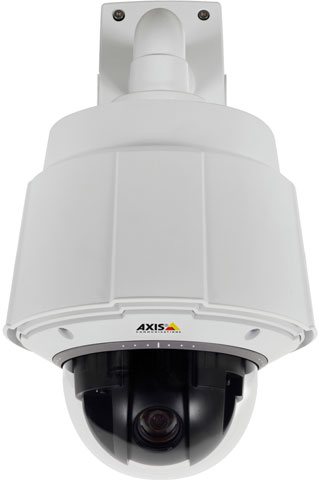

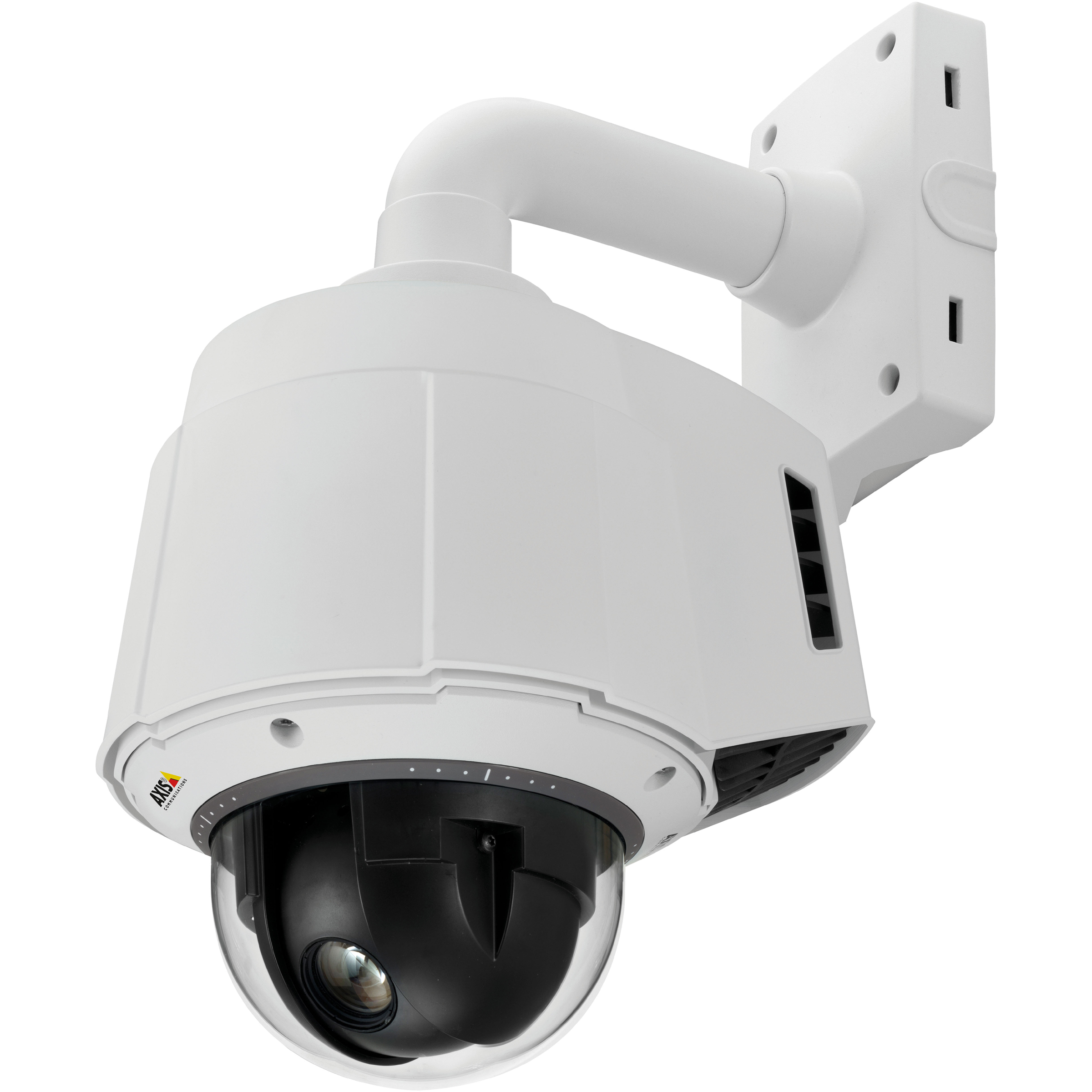

Axis 0568-001 Security Camera

The Axis 0568-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Axis - AXIS Q6045-C Network Camera - Dome - H.264, MPEG-4, MJPEG - 1920 x 1080 - 20x Optical - CMOS - Fast Ethernet

For remote surveillance needs, this network camera is best suited
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Up to 1920 x 1080 resolution for surveillance in real-time

Need a different version? See all Axis Parts Accessories

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Axis Parts Accessory Model Overview

Products and parts from Axis.

Axis 0568-001 Security Camera Overview

The top-of-the-line AXIS Q60-C PTZ Dome Network Cameras provide exceptional and reliable surveillance in environments such as deserts, where high ambient temperatures and solar radiation require cameras to operate in extreme heat. The outdoor-ready AXIS Q60-C cameras are ideal for use at construction and open-pit mining sites, along pipelines, and for city surveillance.

Detailed Specs

Display & Graphics

Image Sensor Size:

1/3"

Image Sensor Type:

CMOS

Color Supported:

Color
Monochrome

Tilt:

220°

Field of View:

3.49? to 62.98?

Swivel:

360°

Viewing Angle:

3.49° to 62.98°

Video

Video Formats:

H.264
MPEG-4
MJPEG

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Zoom

Minimum Focal Length:

4.45 mm

Maximum Focal Length:

89 mm

Lens Included:

Yes

Minimum Aperture:

f/1.6

Maximum Aperture:

f/2.9

Optical Zoom:

20x

Digital Zoom:

12x

Focus Modes:

Automatic

Exposure

Shortest Shutter Speed:

1/33000 Second

Longest Shutter Speed:

1/4 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

IPv4
IPv6
HTTP
HTTPS
SSL/TLS
DiffServ (QoS)
FTP
SMB/CIFS
SMTP
Bonjour
UPnP
SNMP (v1/v2c/v3)
SNMP (MIB-2)
DNS
DynDNS
NTP
RTSP
RTP
TCP
UDP
IGMP
RTCP
ICMP
DHCP
ARP
SOCKS

Storage

Flash Memory Capacity:

128 MB

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Form Factor:

Dome

Height:

12"

Diameter:

9.9"

Weight (Approximate):

12.35 lb

Miscellaneous

Features:

SD Card Local Storage
Motion Detection
Day/Night

Indoor/Outdoor:

Outdoor

Package Contents:

Q6045-C PTZ Dome Network Camera
T8605 Media Converter Switch
Bracket Mount DIN Clip
5 m (16 ft) IP66-Rated Multi-Connector Cable
Installation Guide
Installation and Management Software CD
Windows Decoder 1-User License

Certifications & Standards:

EMC:

EN 55022 Class A
EN 61000-3-2
EN 61000-3-3
EN 61000-6-1
EN 61000-6-2
EN 55024
EN 50121-4
IEC 62236-4
FCC Part 15 Subpart B Class A
ICES-003 Class A
VCCI Class A
C-Tick AS/NZS CISPR 22 Class A
KCC KN22 Class A
KN24

Safety:

IEC/EN/UL 60950-1
IEC/EN/UL 60950-22

Environmental:

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-6
IEC 60068-2-14
IEC 60068-2-27
Camera Compartment: IEC/EN 60529 IP66, NEMA 250 Type 4X

MIL-STD-810G:

500.5 - Low Pressure
501.5 - High Temperature
502.5 - Low Temperature
503.5 - Temperature Shock
505.5 - Solar Radiation
506.5 - Rain
507.5 - Humidity
509.5 - Salt Fog
510.5 - Sand and Dustb

Ingress Protection Rating:

IP66

Security Features:

Password protection
IP address filtering
HTTPSa encryption
IEEE 802.1Xa network access control
Digest authentication
User access log

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7331021040243

EAN: 7331021040243

UNSPSC: 46171610

Reviews

Q&A

Get help from a Barcoding Expert!

The Axis 0568-001 Security Camera is also known as AXC-0568001
