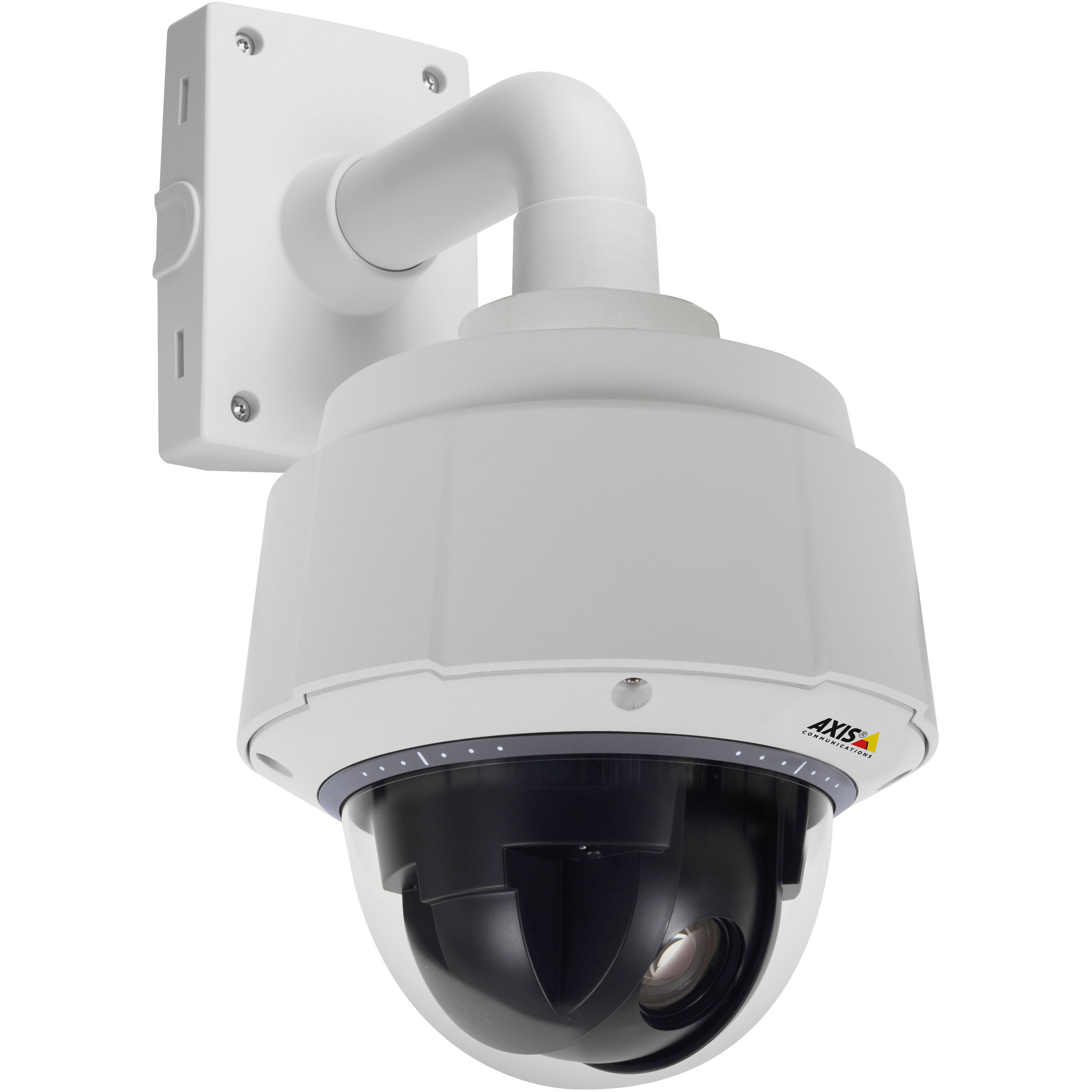

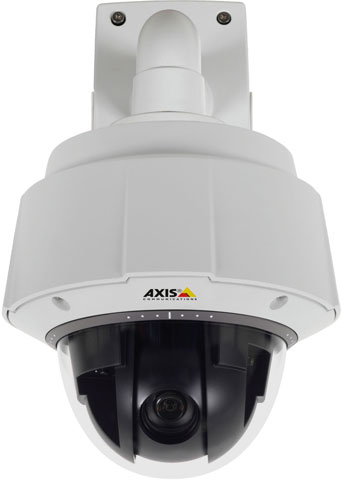

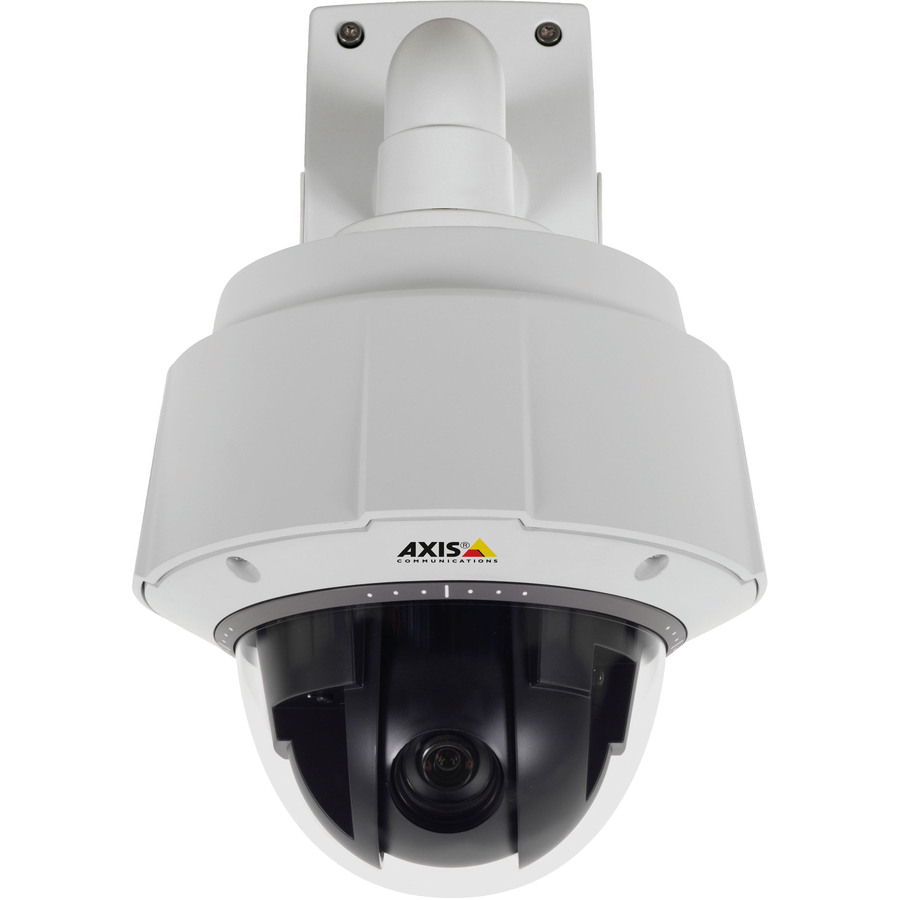

Axis 0560-004 Security Camera

The Axis 0560-004 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Axis - AXIS Q6042-E Network Camera - Dome - H.264, MPEG-4, MJPEG - 36x Optical - EXview HAD CCD - Fast Ethernet
  • For remote surveillance needs, this network camera is best suited
  • EXview HAD CCD offers increased sensitivity to capture better and focus the light
Read More

Need a different version? See all Axis Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Axis 0560-004 Security Camera
Axis 0560-004 Security Camera
Axis 0560-004 Security Camera
Axis 0560-004 Security Camera
Axis 0560-004 Security Camera Axis 0560-004 Security Camera Axis 0560-004 Security Camera Axis 0560-004 Security Camera
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 0560-004 Security Camera Overview
AXIS Q60 - E cameras are top - of - the - line, outdoor - ready pan/tilt/zoom (PTZ) domes that provide exceptional coverage of wide areas and great detail when zooming in. Designed for easy in- stallation and reliable operation outdoors, they are ideal for city surveillance and airports, train stations, harbors and stadiums.
Display & Graphics
Image Sensor Type:
EXview HAD CCD
Image Sensor Size:
1/4"
Minimum Illumination:
0 lux
Color Supported:
  • Monochrome
  • Color
Tilt:
220°
Swivel:
360°
Field of View:
1.7° to 57.2°
Video
Video Formats:
  • H.264
  • MPEG-4
  • MJPEG
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.30 mm
Maximum Focal Length:
119 mm
Lens Included:
Yes
Minimum Aperture:
f/1.4
Maximum Aperture:
f/4.2
Optical Zoom:
36x
Digital Zoom:
12x
Focus Modes:
Automatic
Exposure
Shortest Shutter Speed:
1/30000 Second
Longest Shutter Speed:
1/2 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv6
  • IPv4
  • HTTPS
  • HTTP
  • DiffServ (QoS)
  • SSL/TLS
  • FTP
  • SMB/CIFS
  • SMTP
  • UPnP
  • Bonjour
  • SNMP (MIB-2)
  • SNMP (v1/v2c/v3)
  • DynDNS
  • DNS
  • NTP
  • RTSP
  • RTCP
  • TCP
  • IGMP
  • UDP
  • ICMP
  • SOCKS
  • ARP
  • RTP
  • DHCP
Storage
Flash Memory Capacity:
128 MB
Power Description
Maximum Power Consumption:
74 W
Physical Characteristics
Form Factor:
Dome
Durability:
Vandal Resistant
Height:
11"
Diameter:
9.1"
Weight (Approximate):
8.16 lb
Miscellaneous
Features:
  • Motion Detection
  • SD Card Local Storage
  • Smoke Detector
  • Shock Detection
  • Heater
  • Built-in Fan
  • Fence Detector
Indoor/Outdoor:
Outdoor
Package Contents:
  • Q6042-E PTZ Dome Network Camera
  • AXIS T8124 High PoE 60 W Midspan 1 - port
  • RJ45 Push - pull Connector (IP66)
  • Sunshield
  • Installation Guide
  • Installation and Management Software CD
  • Windows Decoder 1 - User License
Certifications & Standards:
  • EN 55022 Class A
  • EN 61000 - 3 - 2
  • EN 61000 - 3 - 3
  • EN 61000 - 6 - 1
  • EN 61000 - 6 - 2
  • EN 55024
  • EN 50121 - 4
  • IEC 62236 - 4
  • FCC Part 15 Subpart B Class A
  • ICES - 003 Class A
  • VCCI Class A
  • C - tick AS/NZS CISPR 22 Class A
  • KCC KN22 Class A
  • KN24
  • IEC/EN/UL 60950 - 1
  • IEC/EN/UL 60950 - 22
  • IEC/EN 60529 IP66
  • NEMA 250 Type 4X
  • IEC 62262 IK10
  • IEC 60068 - 2 - 1
  • IEC 60068 - 2 - 2
  • IEC 60068 - 2 - 78
  • IEC 60068 - 2 - 14
  • IEC 60068 - 2 - 30
  • IEC 60068 - 2 - 6
  • IEC 60068 - 2 - 27
  • IEC 60068 - 2 - 60
  • ISO 4892 - 2
  • EN 60950 - 1
  • GS
  • cUL
  • CE
  • FCC
  • CB
  • KCC
  • UL - AR
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Security Features:
  • Password protection
  • IP address fltering
  • HTTPS a encryption
  • IEEE 802.1X
  • Digest authentication
  • User access log
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7331021007901
EAN: 7331021007901
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 0560-004 Security Camera is also known as AXC-0560004
