Recording Formats:
HD
HD Recording:
Yes
Axis 0533-001 Security Camera
Part Number:
0533-001
Model:
Parts
Axis Accessory Model Overview
Products and parts from Axis.

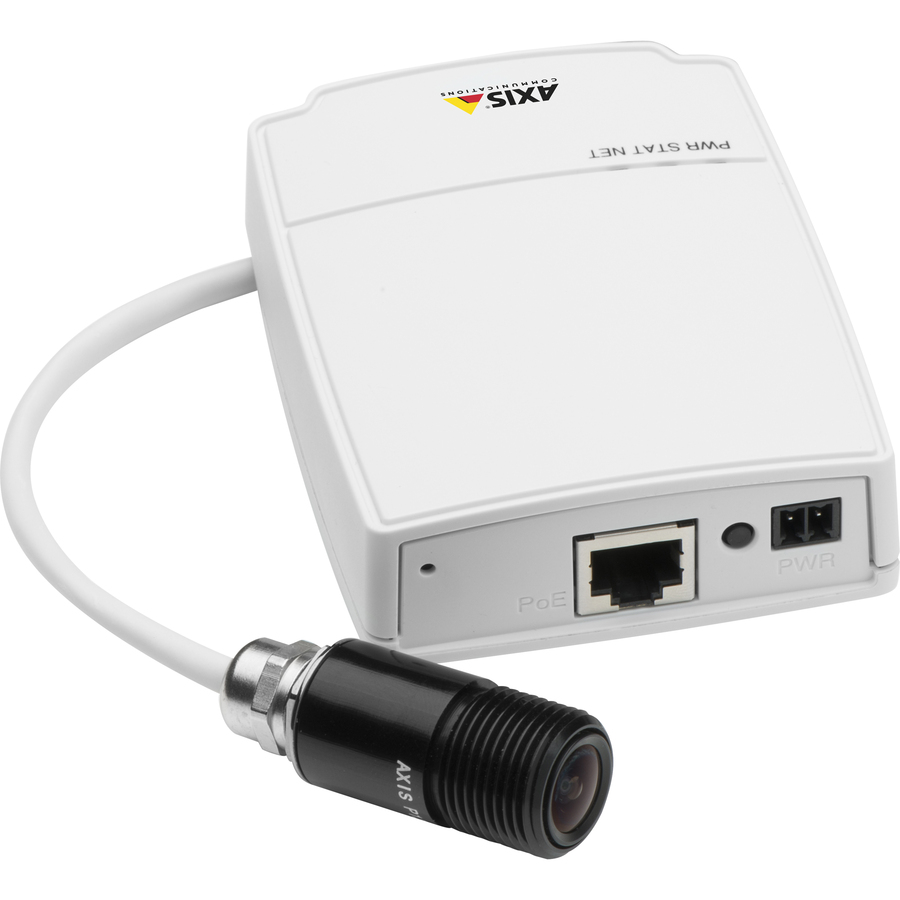

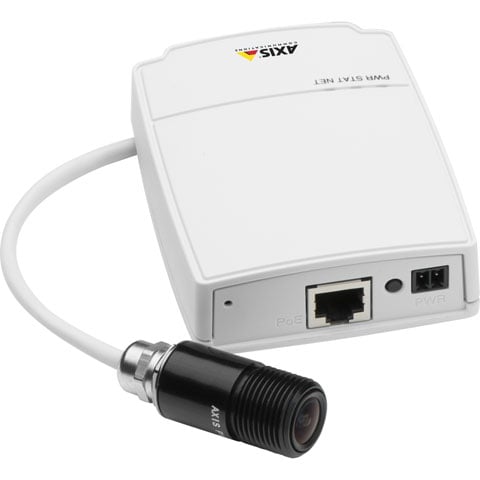

Axis 0533-001 Security Camera Overview
AXIS P12 Network Camera Series offers small-sized, high-performance cameras for exceptionally discreet indoor and outdoor surveillance. These cameras are perfect for covert installations or where a discreet and compact surveillance solution is required.
AXIS P12 Network Cameras is a series of uniquely designed cameras for exceptionally discreet surveillance. The series comprises three models; two pinhole models, AXIS P1204 and AXIS P1214, which are ideal for indoor installations, and AXIS P1214-E, which is an IP66-rated model that can be installed both indoors and outdoors.
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Image Sensor Size:
1/4"
Maximum Illumination:
10000 lux
Color Supported:
Color
Field of View:
81°
Effective Camera Resolution:
1.3 Megapixel
Video
Video Formats:
- H.264
- MJPEG
- MPEG-4
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/24500 Second
Longest Shutter Speed:
1/6 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SSL/TLS
- QoS
- FTP
- SMB/CIFS
- SMTP
- Bonjour
- UPnP
- SNMP (MIB-2)
- SNMP
- DNS
- DynDNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SOCKS
Storage
Flash Memory Capacity:
128 MB
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Maximum Power Consumption:
6.49 W
Physical Characteristics
Product Color:
White
Height:
2"
Width:
0.8"
Miscellaneous
Features:
Motion Detection
Indoor/Outdoor:
Outdoor
Package Contents:
- P1214-E Network Camera
- Mounting Kit
- Installation Guide
- Axis Warranty Document
- AVHS Authentication Key
- Installation and Management Software CD
- Windows Decoder 1-user License
Certifications & Standards:
- EN 55022 Class B
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-6-1
- EN 55024
- FCC Part 15 Subpart B Class B
- ICES-003 Class B
- VCCI Class B
- C-tick AS/NZS CISPR 22
- KCC Class B
- EN/IEC 60950-1
- IEC 60068-2-6 (Vibration) Class 4M4
- IEC 60068-2-27 (shock) Class 4M3
- IEC 60068-2-1
- IEC 60068-2-2
- IEC 60068-2-78 Class 3K3
- EN/IEC 60950-22
- IEC 60529 IP66
- NEMA 250 Type 4X
- IEC 60068-2-78 Class 4K3
- IEC 60068-2-14
- IEC 60068-2-30
Security Features:
- Password Protection
- IP Address Filtering
- HTTPS Encryption
- IEEE 802.1X Network Access Control
- Digest Authentication
- User Access Log
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0041113956075, 0088022239004, 7331021004030
UPC:
041113956075, 088022239004
EAN:
0041113956075, 0088022239004, 7331021004030
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 0533-001 Security Camera is also known as
AXC-0533-001
