Fixed Focal Length:
3.70 mm
Axis 0531-001 Security Camera
Part Number:
0531-001
Model:
Parts
Axis Accessory Model Overview
Products and parts from Axis.

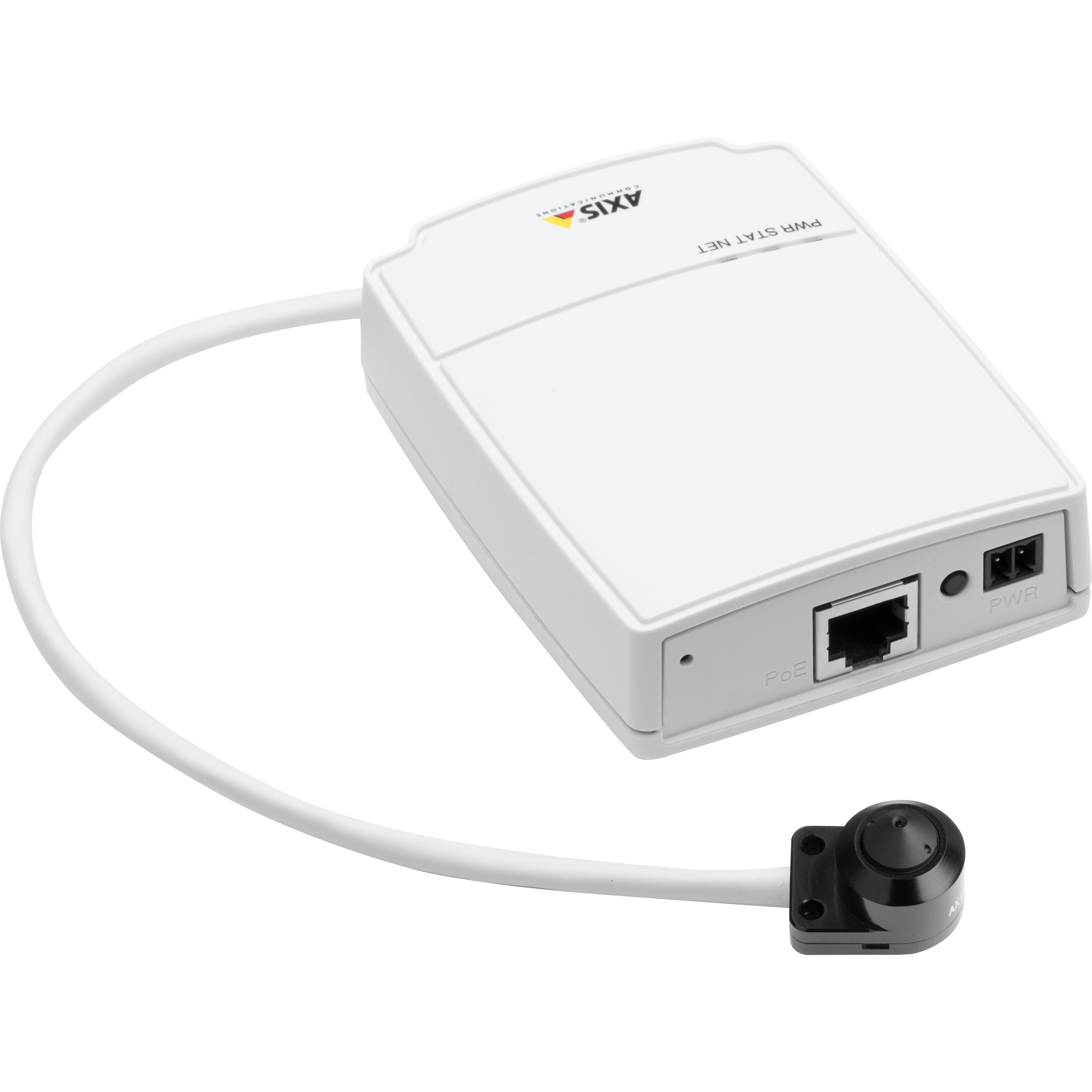

Axis 0531-001 Security Camera Overview
- Functional and extremely discreet design
- Easy and flexible installation
- HDTV 720p
- Edge storage
- Multiple H.264 streams
- Power over Ethernet
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/4"
Minimum Illumination:
1.2 lux
Maximum Illumination:
100000 lux
Color Supported:
- Monochrome
- Color
Field of View:
68°
Video
Video Formats:
- MPEG-4
- MJPEG
- H.264
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.70 mm
Lens Included:
Yes
Maximum Aperture:
f/2.5
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/24500 Second
Longest Shutter Speed:
1/6 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SSL/TLS
- QoS
- FTP
- CIFS
- SMB
- SMTP
- Bonjour
- UPnP
- SNMP
- SNMP (MIB-2)
- DNS
- DynDNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SOCKS
Storage
Flash Memory Capacity:
128 MB
Controls/Indicators
Status Indicators:
LEDs:
- Network
- Status
- Power
Power Description
Maximum Power Consumption:
6.40 W
Miscellaneous
Package Contents:
- P1204 Network Camera
- Mounting Kit
- Installation Guide
- Axis Warranty Document
- AVHS Authentication Key
- Installation and Management Software CD
- Windows Decoder 1-User License
System Requirements:
- Operating Systems: Windows 7, Windows Vista, Windows XP, Windows Server 2008, Windows Server 2003, Macintosh
- Browser Supported: Windows Internet Explorer, Safari, Firefox
Certifications & Standards:
- EN 55022 Class B
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-6-1
- EN 55024
- FCC Part 15 Subpart B Class B
- ICES-003 Class B
- VCCI Class B
- C-tick AS/NZS CISPR 22, KCC Class B
- EN/IEC 60950-1
- IEC 60068-2-6 (Vibration) class 4M4
- IEC 60068-2-27 (shock) Class 4M3
- IEC 60068-2-1
- IEC 60068-2-2
- 60068-2-78 Class 3K3
- IEC 60529: IP20
Security Features:
- Password Protection
- IP Address Filtering
- HTTPS Encryption
- IEEE 802.1X Network Access Control
- Digest Authentication
- User Access Log
Platform Supported:
- PC
- Mac
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0132018208588, 0168141567445, 0229247092184, 7331021003996
UPC:
132018208588, 168141567445, 229247092184
EAN:
0132018208588, 0168141567445, 0229247092184, 7331021003996
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 0531-001 Security Camera is also known as
AXC-0531-001
