Axis 0413-001 Security Camera

The Axis 0413-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Axis M3114-VE - AXIS M3114-VE Network Camera - MPEG-4, MJPEG - 800 x 600 - CMOS - Fast Ethernet
  • Network camera - Helps achieve high-quality video results
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Up to 800 x 600 resolution for surveillance in real-time
Read More
Discontinued Need Assistance?
Add to Quote

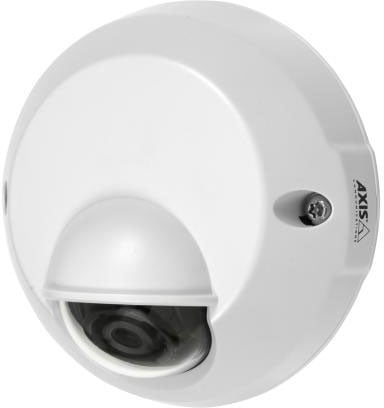

Axis M3114-VE Security Camera Model Overview
Designed for placement near building entrances to strengthen security, the palm-sized Axis M3114-VE Network Camera is a cost-effective, ultra-discreet fixed dome for monitoring outdoor entrance areas of stores, restaurants, hotels, banks and offices. The camera is vandal-resistant and can detect tampering attempts such as blocking or spray-painting. The camera can operate in temperatures from 50°C (122°F) down to -20°C (-4°F). The UV-resistant casing comes with a weather shield for protection from sunlight, rain and snow. Models without the weather shield, which provide a greater tilt range, are suitable for semi-outdoor, ceiling-mount installations where the shield is not required, such as in a cold storage room or under a porch. Naturally they can be used indoors as well.
Axis 0413-001 Security Camera Overview

Designed for placement near building entrances to strengthen security, the palm-sized AXIS M3114-VE Network Camera is a cost-effective, ultra-discreet fixed dome for monitoring outdoor entrance areas of stores, restaurants, hotels, banks and offices. The camera is vandal-resistant and can detect tampering attempts such as blocking or spray-painting.

Technical Information
Fixed Focal Length:
2.90 mm
Display & Graphics
Image Sensor Type:
CMOS
Minimum Illumination:
1 lux
Maximum Illumination:
100000 lux
Color Supported:
Color
Swivel:
-30° to 30°
Video
Video Formats:
  • MPEG-4
  • MJPEG
Maximum Video Resolution:
800 x 600
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.90 mm
Lens Mount Type:
S-mount
Maximum Aperture:
f/2
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/24500 Second
Longest Shutter Speed:
1/6 Second
Exposure Control:
Auto
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • HTTP
  • HTTPS
  • SSL/TLS
  • QoS
  • FTP
  • SMTP
  • Bonjour
  • UPnP
  • SNMP
  • TCP
  • UDP
  • IGMP
  • RTCP
  • ICMP
  • DHCP
  • ARP
  • SOCKS
  • IP
  • RTSP
  • RTP
  • DNS
  • DDNS
Storage
Flash Memory Capacity:
128 MB
Controls/Indicators
Status Indicators:

LED Indicators:

  • Network
  • Status
  • Power
Power Description
Maximum Power Consumption:
3.20 W
Physical Characteristics
Weight (Approximate):
8.82 oz
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
  • M3114-VE Network Camera
  • Lens Tool
  • Top Cover Tool
  • Drill Hole Template
  • Mounting Adapter
  • Installation Guide
  • CD With Installation Tools, Recording Software and User's Manual
  • Windows Decoder 1-user License
Certifications & Standards:
  • EN 55022 Class B
  • EN 60950-22
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-1
  • EN 61000-6-2
  • EN 55024
  • ICES-003 Class B
  • FCC Part 15 Subpart B Class B
  • VCCI Class B
  • C-tick AS/NZS CISPR 22
  • EN 60950-1
  • IEC 60721-3-4 Class 4K3 (temperature range -20°C to +50°C)
  • IEC60529 IP66
  • IP67
  • NEMA 250 Type 4X
  • IEC 62262 Class IK08
Impact Protection Rating:
IK08
Ingress Protection Rating:
  • IP67
  • IP66
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 7331021033238
EAN: 7331021033238
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 0413-001 Security Camera is also known as AXC-0413-001
