Axis 02617-004 Security Camera

Part Number: 02617-004
Model: Parts
to get Free Ground Shipping on your order.
$1,968.92
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
4K
HD Recording
Yes
Image Sensor Type
CMOS
Image Sensor Size
1/2"

Product Description:

  Security Cameras, Axis Q3628-VE

Axis Accessory Model Overview

Products and parts from Axis.

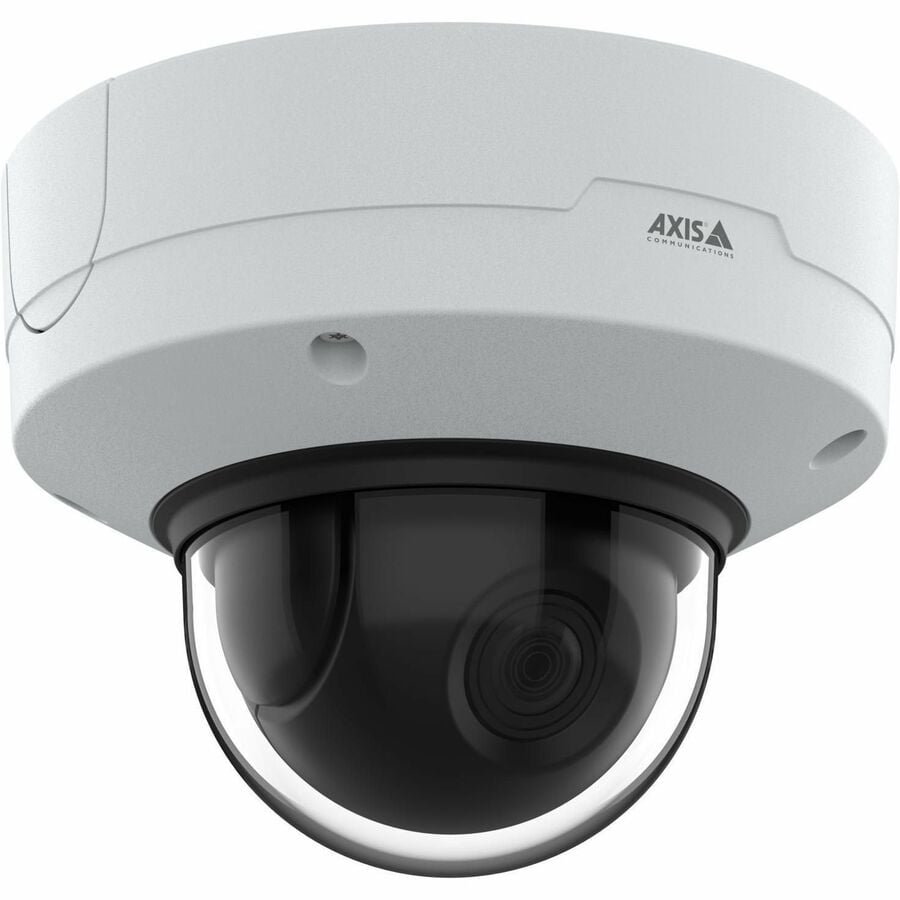

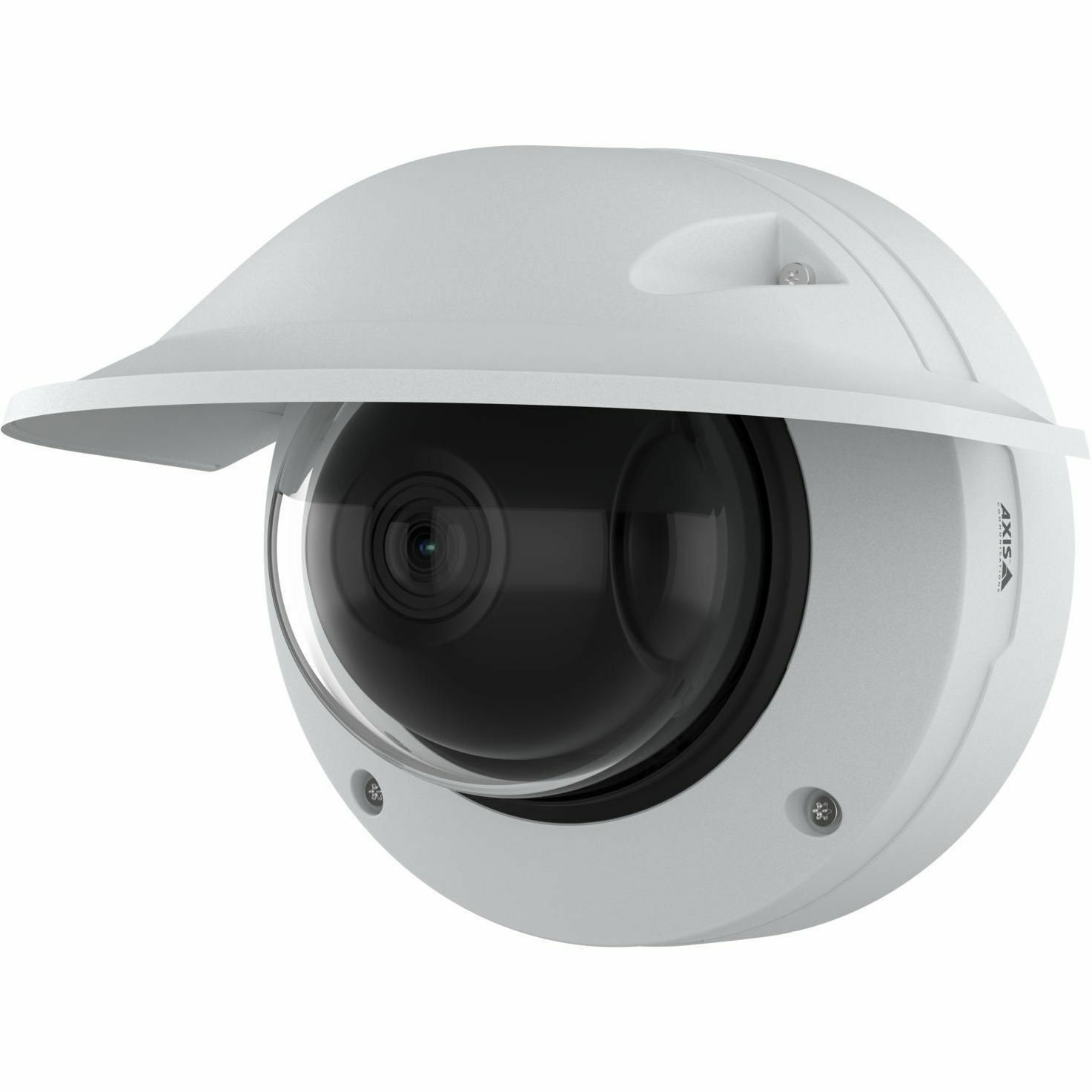

Axis 02617-004 Security Camera Overview

This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it's quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.

Remotely adjust the field of view

This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.

Outstanding image quality

AXIS Q3628-VE offers outstanding image quality and forensic details in 8 MP resolution-even in low light. Plus,Lightfinder2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before-on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.

Robust and ready for tough environments

This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cyber security features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

Technical Information
Recording Formats:
4K
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2"
Color Supported:
Color
Field of View:
Horizontal field of view: 103°-48° Vertical field of view: 56°-27°
Effective Camera Resolution:
8 Megapixel
Video
Video Formats:
  • H.265
  • Zipstream
  • H.264
  • H.264B
  • H.264H
  • H.264M
  • Motion JPEG
Maximum Video Resolution:
3840 x 2160
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
6.20 mm
Maximum Focal Length:
12.90 mm
Lens Included:
Yes
Minimum Aperture:
f/2.9
Maximum Aperture:
f/1.6
Optical Zoom:
2.1x
Exposure
Shortest Shutter Speed:
1/66500 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Gigabit Ethernet
Protocols:
  • IPv4
  • IPv6
  • ICMPv4/ICMPv6
  • HTTP
  • HTTPS
  • TLS
  • QoS
  • DiffServ (QoS)
  • FTP
  • SFTP
  • CIFS/SMB
  • SMTP
  • mDNS (Bonjour)
  • UPnP
  • SNMP (v1/v2c/v3)
  • DNS
  • DNSv6
  • DDNS
  • NTP
  • NTS
  • RTSP
  • RTP
  • SRTP/RTSPS
  • TCP
  • RTCP
  • ICMP
  • DHCPv4/v6
  • ARP
  • SSH
  • LLDP
  • CDP
  • MQTT
  • MQTT v3.1.1
  • UDP
  • ZeroConf
  • 802.1X
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
  • DC
  • PoE
Physical Characteristics
Mount Type:
Junction Box Mount
Form Factor:
Dome
Durability:
  • Vandal Resistant
  • Weather Resistant
  • Shock Resistant
  • Vibration Resistant
Color Family:
White
Product Color:
White
Height:
5.6"
Diameter:
7.2"
Weight (Approximate):
4.63 lb
Environmental Conditions
Minimum Operating Temperature:
-58°F (-50°C)
Maximum Operating Temperature:
131°F (55°C)
Miscellaneous
Features:
  • Back Light Compensation (BLC)
  • Highlight Compensation (HLC)
  • Wide Dynamic Range
  • 3D Digital Noise Reduction
  • Noise Detection
  • Mirror
  • Password Protection
  • Cross Line Detection
  • Vehicle Detection
  • Human Detection
  • Motion Detection
Indoor/Outdoor:
Outdoor
Package Contents:
  • Q3628-VE Dome Camera
  • Installation guide
  • Conduit adapter
  • RESISTORX® TR20 screw bit
  • Terminal block connectors
  • Connector Guard
  • Cable Gasket
  • Owner authentication key
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP66
  • IP6K9K
Country of Origin:
Cambodia
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021081406
EAN: 7331021081406
UNSPSC: 46171610
