Axis 02416-001 Security Camera

Part Number: 02416-001
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,449.72
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
49.21 ft
Night Vision Type
Infrared

Product Description:

  Security Cameras, Axis P4707-PLVE, 5 Megapixel Network Camera, Color, Dome, 49.21 ft Infrared Night Vision, Zipstream, H.264, H.265, Motion JPEG, H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), 2592 x 1944, 3.30 mm- 8.10 mm Varifocal Lens, 2.5x Optical, RGB CMOS, IK10, IP66, IP67
Explore all Axis Accessories
Add to Quote
Axis 02416-001 Security Camera
Axis 02416-001 Security Camera
Axis 02416-001 Security Camera
Axis 02416-001 Security Camera Axis 02416-001 Security Camera Axis 02416-001 Security Camera

Axis Accessory Model Overview

Products and parts from Axis.

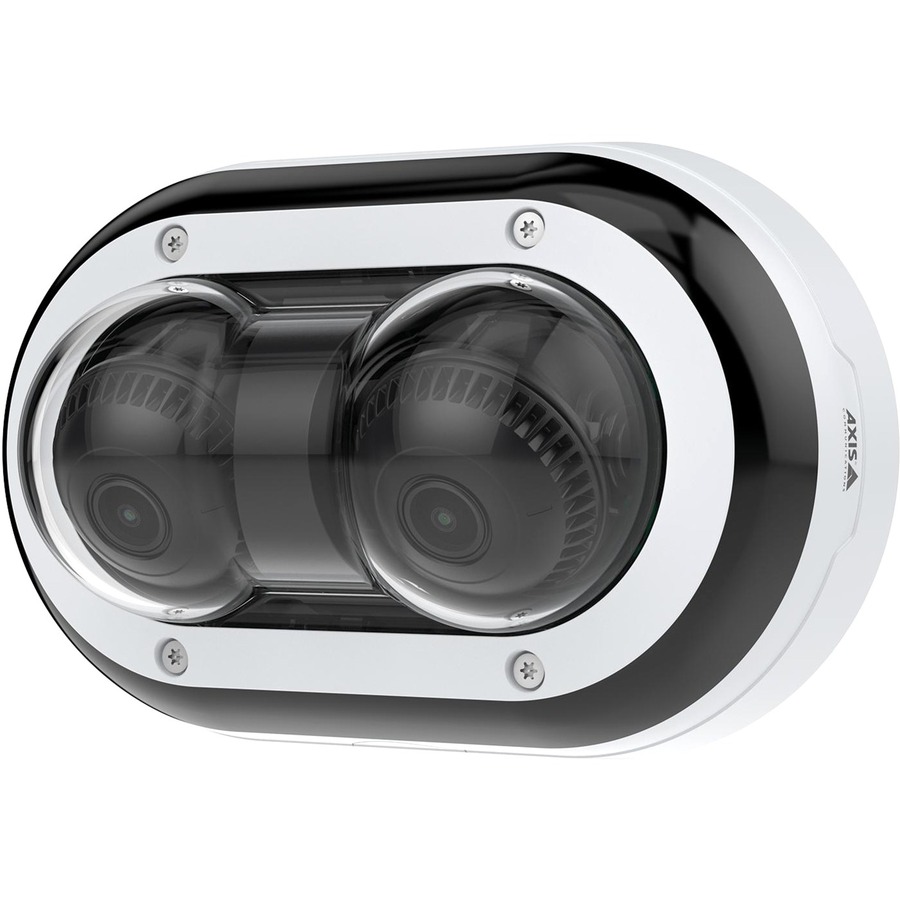

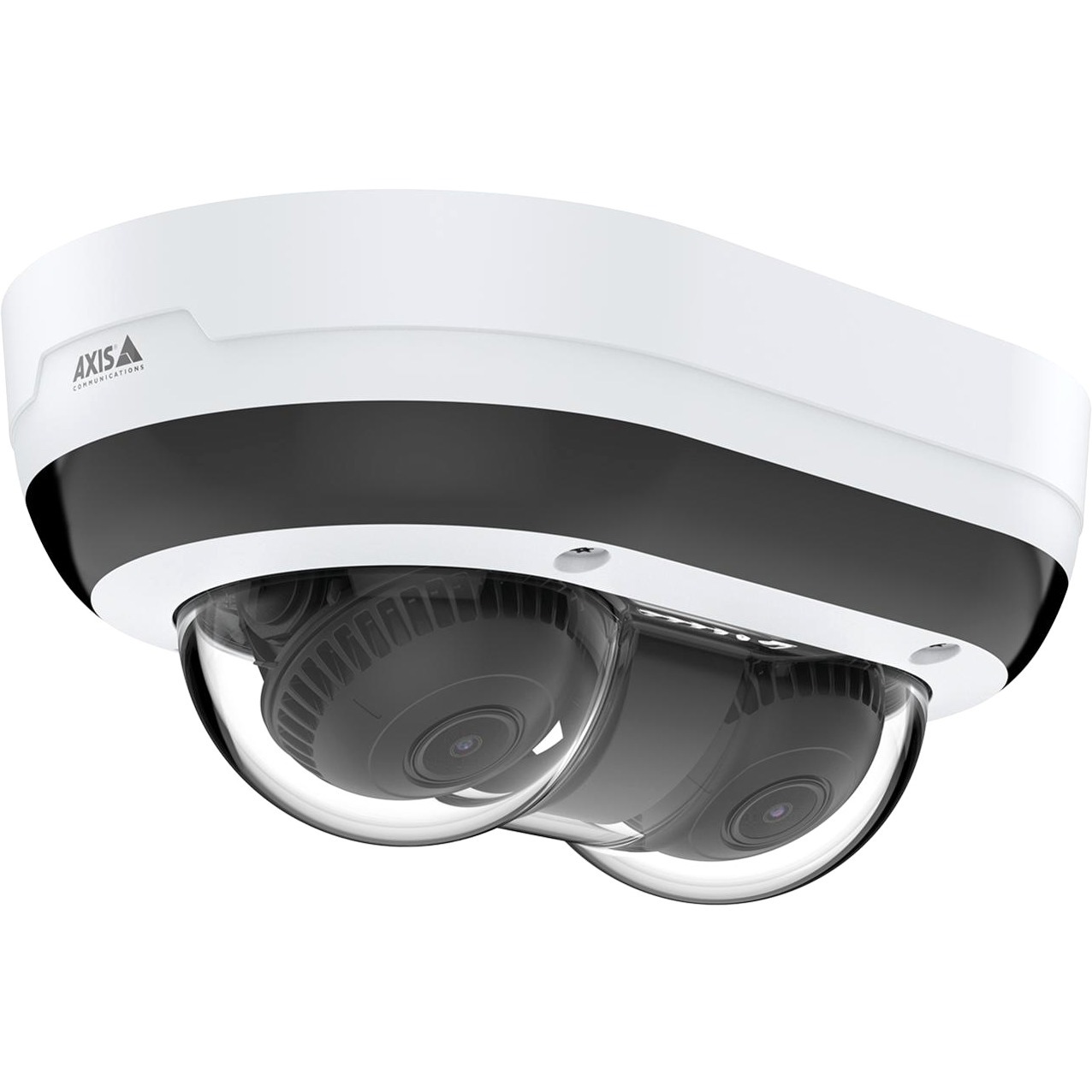

Axis 02416-001 Security Camera Overview
Dual-sensor with 360° IR and deep learning

This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.
  • 2x5 MP, multidirectional camera, with one IP address
  • Support for analytics with deep learning on both sensors
  • 360° IR illumination
  • 2.5x zoom
  • Axis Lightfinder and Forensic WDR
Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
49.21 ft
Night Vision Type:
Infrared
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 98°-36° Vertical field of view: 69°-27° Diagonal field of view: 133°-46°
Effective Camera Resolution:
5 Megapixel
Number of Sensors:
2
Video
Video Formats:
  • Zipstream
  • H.264
  • H.265
  • Motion JPEG
  • H.264B (MPEG-4 Part 10/AVC)
  • H.264M (MPEG-4 Part 10/AVC)
  • H.264H (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3.30 mm
Maximum Focal Length:
8.10 mm
Lens Included:
Yes
Minimum Aperture:
f/3.2
Maximum Aperture:
f/1.9
Optical Zoom:
2.5x
Exposure
Shortest Shutter Speed:
1/33500 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Power Source Type:
PoE
Physical Characteristics
Mount Type:
Bracket Mount
Form Factor:
Dome
Product Color:
  • White
  • Black
Height:
3.5"
Width:
5.2"
Length:
8.2"
Weight (Approximate):
2.15 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Day/Night
  • Human Detection
  • Vehicle Detection
  • Video Management System
  • SD Card Local Storage
  • Motion Detection
  • Privacy Masking
  • Password Protection
  • HTTPS Encryption
Package Contents:
  • P4707-PLVE Panoramic Camera
  • Installation Guide
  • Windows Decoder 1-user License
  • connector Kit
  • Weathershield
  • Connector Guard
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP66
  • IP67
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 02416-001 Security Camera is also known as AXC-02416001
