Axis 02330-001 Security Camera

Part Number: 02330-001
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,137.69
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Type
Infrared
Camera Iris
P-iris

Product Description:

  Security Cameras, Axis, P3267-LVE
Explore all Axis Accessories
Add to Quote
Axis 02330-001 Security Camera
Axis 02330-001 Security Camera
Axis 02330-001 Security Camera Axis 02330-001 Security Camera

Axis Accessory Model Overview

Products and parts from Axis.

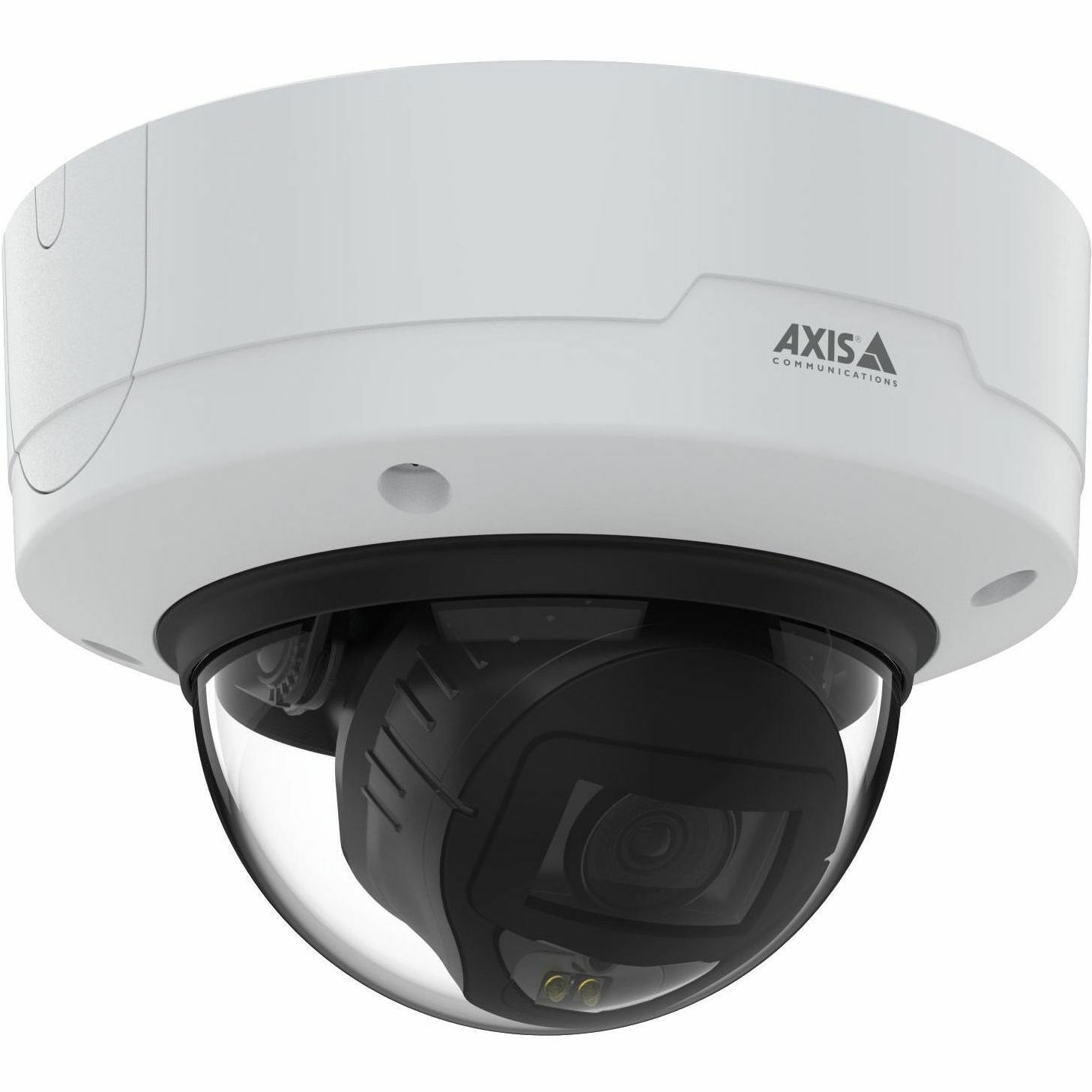

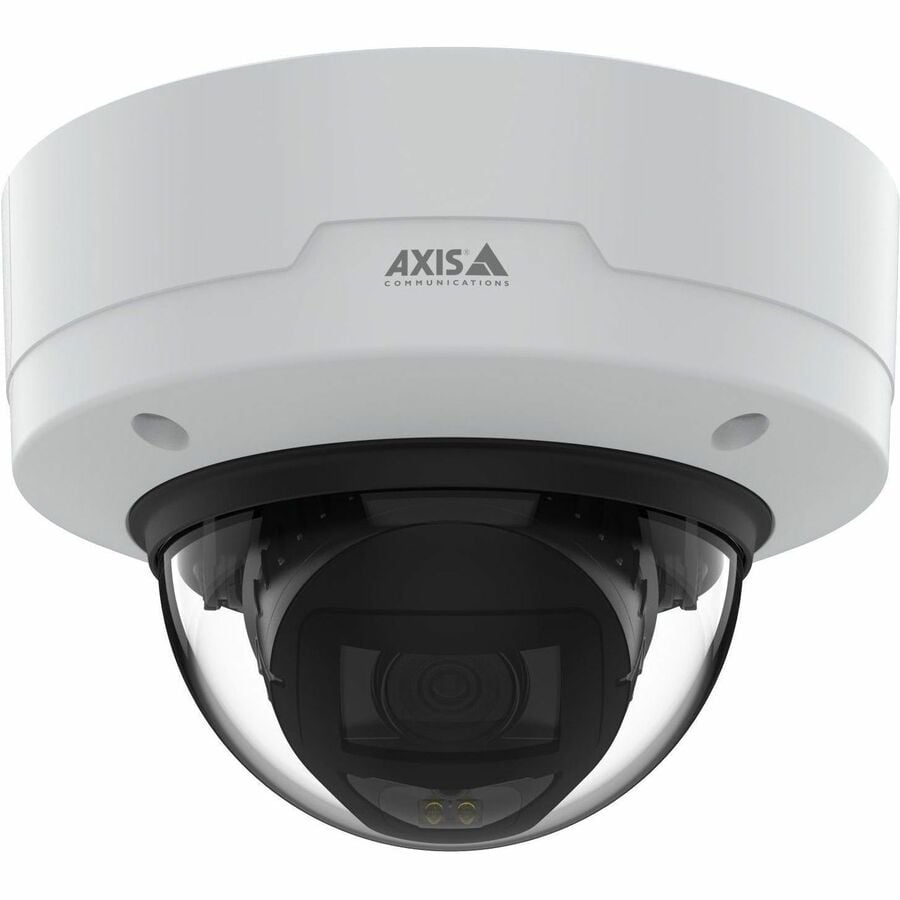

Axis 02330-001 Security Camera Overview

Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P3267-LVE delivers excellent image quality under any light conditions. Built on an Axis system-on-chip (SoC), it includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. For instance, AXIS Object Analytics, can detect and classify humans, vehicles, and types of vehicles, and enables fast VMS search. This robust, IK10-rated outdoor-ready camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the devices and protects sensitive information from unauthorized access. Plus, AXIS P3267-LVE Mic features a built-in microphone, so it's out-ofthe-box-ready for AXIS Audio Analytics.

  • Excellent image quality in 5 MP
  • Lightfinder 2.0, and OptimizedIR
  • Analytics with deep learning
  • Variant with built-in microphone
  • Axis Edge Vault safeguards the device


Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Type:
Infrared
Camera Iris:
P-iris
AI-powered:
Yes
Infrared (IR) Cut-off Filter:
Yes
Languages Support:
  • English
  • German
  • French
  • Spanish
  • Italian
  • Russian
  • Simplified Chinese
  • Japanese
  • Korean
  • Portuguese
  • Polish
  • Traditional Chinese
  • Dutch
  • Czech
  • Swedish
  • Finnish
  • Turkish
  • Thai
  • Vietnamese
Wide Dynamic Range Detail:
120 dB
Display & Graphics
Image Sensor Type:
RGB CMOS
Image Sensor Size:
1/2.7"
Color Supported:
Color
Field of View:
Horizontal field of view: 104°-40° Vertical field of view: 74°-29°
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • H.264 (MPEG-4 Part 10/AVC)
  • Motion JPEG
  • H.265 (MPEG-H Part 2/HEVC) Main Profile
  • Zipstream
  • H.264B
  • H.264H
  • H.264M
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Audio
Audio Support:
Yes
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
8 mm
Lens Included:
Yes
Maximum Aperture:
f/1.3
Optical Zoom:
2.7x
Exposure
Shortest Shutter Speed:
1/33500 Second
Longest Shutter Speed:
1/5 Second
PTZ Modes:
Digital PTZ
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv4
  • IPv6 USGv6
  • ICMPv4/ICMPv6
  • HTTP
  • HTTPS
  • TLS
  • FTP
  • SFTP
  • CIFS/SMB
  • mDNS (Bonjour)
  • UPnP
  • SNMPv1/v2c/v3 (MIB2)
  • TCP
  • UDP
  • IGMPv1/v2/v3
  • DHCPv4/v6
  • ARP
  • SSH
  • UDP/TCP/TLS
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Internal Memory:
2 GB
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Maximum Power Consumption:
12.10 W
Power Source Type:
PoE
Physical Characteristics
Mount Type:
  • Bracket Mount
  • Junction Box Mount
  • Ceiling Mount
  • Wall Mount
Form Factor:
Dome
Color Family:
White
Product Color:
White
Product Material:
Polycarbonate
Height:
4.2"
Diameter:
5.9"
Weight (Approximate):
1.98 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Minimum Storage Temperature:
-40°F (-40°C)
Maximum Storage Temperature:
149°F (65°C)
Minimum Operating Humidity (Condensing):
10%
Maximum Operating Humidity (Condensing):
100%
Minimum Storage Humidity (Non-condensing):
5%
Maximum Storage Humidity (Non-condensing):
95%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Vehicle Detection
  • Built-in IR LED
  • Day/Night
  • Built-in Microphone
  • Built-in Speaker
  • PTZ
  • Privacy Masking
  • Defog
Indoor/Outdoor:
Outdoor
Package Contents:
  • P3267-LVE Dome Camera
  • Installation Guide
  • Windows decoder 1-user License
  • Drill Template
  • Resistorx t20 Screw bit
  • Terminal Block Connectors
  • Cable Gaskets
  • Connector Guard
  • Weathershield
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
TAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021075962
EAN: 7331021075962
UNSPSC: 46171610
