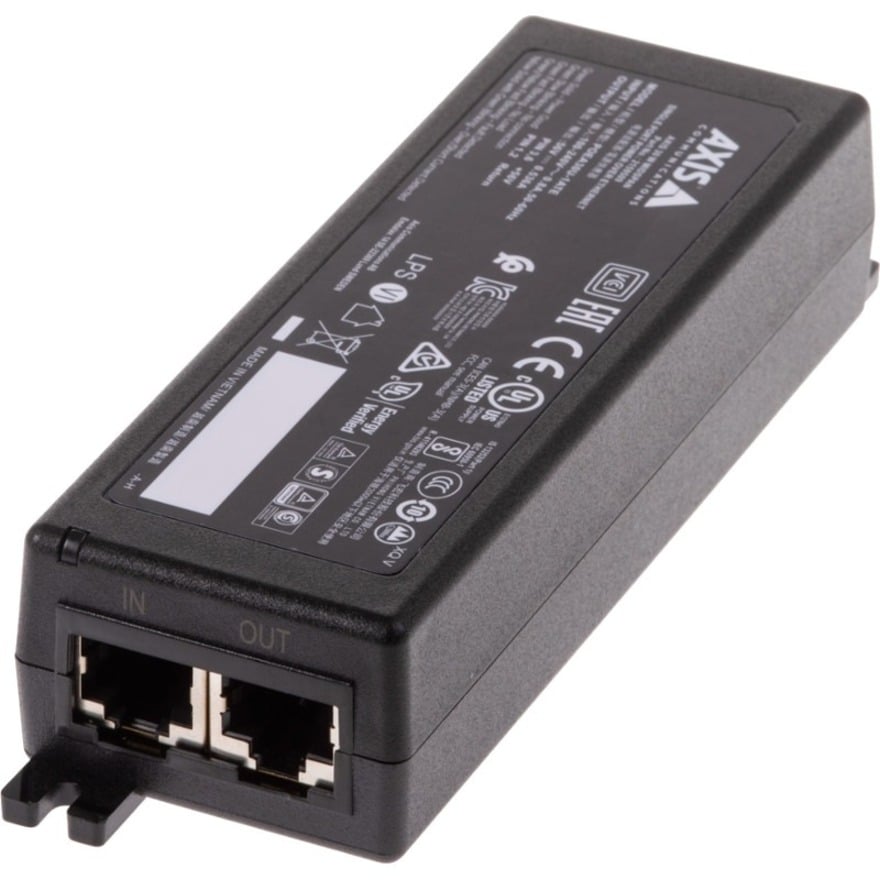

Axis 02172-004 PoE Injectors

Part Number: 02172-004
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$105.06
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Input Voltage
120 V AC230 V AC
Minimum Frequency
50 Hz
Maximum Frequency
60 Hz
Maximum Output Power
30 W

Product Description:

  Power Systems & Supplies, AXIS 30 W, A 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE.
Explore all Axis Accessories
Add to Quote
Axis 02172-004 PoE Injectors
Axis 02172-004 PoE Injectors

Axis Accessory Model Overview

Products and parts from Axis.
Axis 02172-004 PoE Injectors Overview

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE.

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. With a single network cable, a PoE midspan injects power to the network device with built-in PoE support and enables data communication between the device and the switch. No need to replace existing Ethernet switches and cabling infrastructure.

Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Minimum Frequency:
50 Hz
Maximum Frequency:
60 Hz
Maximum Output Power:
30 W
Interfaces/Ports
Input Ports:
1 x 10/100/1000Base-T
Output Ports:
1 x PoE
Physical Characteristics
Product Color:
Black
Form Factor:
Wall/Shelf/DIN Rail Mountable
Height:
1.2"
Width:
1.8"
Depth:
5.5"
Weight (Approximate):
5.11 oz
Miscellaneous
Package Contents:
  • 30 W Midspan
  • Installation Guide
  • Cable Mains IEC-C13
Compatibility:
Axis Fixed Cameras:
  • M1065-L
  • M1134
  • M1135
  • M1135-E
  • M1137
  • M1137-E
  • M1145-L
  • M2025-LE
  • M2026-LE Mk II
  • P1214
  • P1214-E
  • P1224-E
  • P1244
  • P1245
  • P1254
  • P1264
  • P1265
  • P1275
  • P1375
  • P1375-E
  • P1377
  • P1377-LE
  • P1378
  • P1378-LE
  • P1445-LE
  • P1445-LE-3
  • P1447-LE
  • P1448-LE
  • P1455-LE
  • Q1615 Mk II
  • Q1615 Mk III
  • Q1615-E Mk II
  • Q1615-LE Mk III
  • Q1645
  • Q1645-LE
  • Q1647
  • Q1647-LE
  • Q1659
  • Q1700-LE
  • Q1785-LE
  • Q1786-LE
  • Q1798-LE
Axis Fixed Dome Cameras:
  • M3015
  • M3016
  • M3037-PVE
  • M3057-PLVE
  • M3058-PLVE
  • M3064-V
  • M3065-V
  • M3066-V
  • M3067-P
  • M3068-P
  • M3075-V
  • M3115-LVE
  • M3116-LVE
  • M3205-LVE
  • M3206-LVE
  • M4206-LV
  • M4206-V
  • P3227-LV
  • P3227-LVE
  • P3228-LV
  • P3228-LVE
  • P3245-LV
  • P3245-LVE
  • P3245-V
  • P3245-VE
  • P3247-LV
  • P3247-LVE
  • P3248-LV
  • P3248-LVE
  • P3255-LVE
  • P3367-V
  • P3367-VE
  • P3374-LV
  • P3374-V
  • P3375-LV
  • P3375-LVE
  • P3375-V
  • P3375-VE
  • P3715-PLVE
  • P3717-PLE
  • P3719-PLE
  • P3904-R Mk II
  • P3905-R Mk II
  • P3915-R Mk II
  • P3925-R
  • P3935-LR
  • P9106-V
  • Q3515-LV
  • Q3515-LVE
  • Q3517-LV
  • Q3517-LVE
  • Q3517-SLVE
  • Q3518-LVE
  • Q3527-LVE
  • Q3615-VE
  • Q3617-VE
  • Q3708-PVE
  • Q3709-PVE
  • Q9216-SLV
Axis Housings:
  • T92E20 Outdoor Housing
  • T92G20 Outdoor Housing
  • T93F20 Outdoor Housing
  • Axis I/O Relay Modules:
  • A9161
  • A9188
  • A9188-VE
Axis Illuminators:
  • T90C20 Fixed Dome IR-LED
  • T90D20 PoE IR-LED
  • T90D25 PoE W-LED
Axis Intercoms:
  • A8207-VE Mk II
Axis Modular Cameras:
  • F34 Main Unit
  • F34 Surveillance system
  • F41 Main Unit
  • F44 Dual Audio Input
Axis Mounts:
  • T91G61 Wall Mount
  • T91H61 Wall Mount
  • Axis PTZ Cameras:
  • M5054
  • M5055
  • M5065
  • M5525-E
  • P5414-E
  • P5415-E
  • P5654-E
  • P5655-E
  • Q6074
  • Q6074-E
  • Q6075
  • Q6075-E
  • Q6128-E
  • Q6154-E
  • Q6155-E
Axis PoE Extenders:
  • Long Range PoE Extender Kit (01857-001)
Axis Power Over Ethernet:
  • PoE Splitter 5 V (02044-001)
Axis Security Radars:
  • D2050-VE
  • D2110-VE
Axis Speakers:
  • C1310-E
  • C1410
Axis Thermal Cameras:
  • P1280-E
  • P1290-E
  • Q1941-E
  • Q1941-E PT Mount
  • Q1942-E
  • Q1942-E PT Mount
  • Q2901-E
  • Q2901-E PT Mount
Axis Video Encoders:
  • M7104
  • P7304
  • Q7411
  • Q7424-R Mk II
Certifications & Standards:
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-6
  • IEC 60068-2-14
  • IEC 60068-2-27
  • IEC 60068-2-78
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7331021074071
EAN: 7331021074071
UNSPSC: 39121004
