Recording Formats:
Full HD
HD Recording:
Yes
Axis 02133-001 Security Camera
Part Number:
02133-001
Model:
Parts
Axis Accessory Model Overview
Products and parts from Axis.

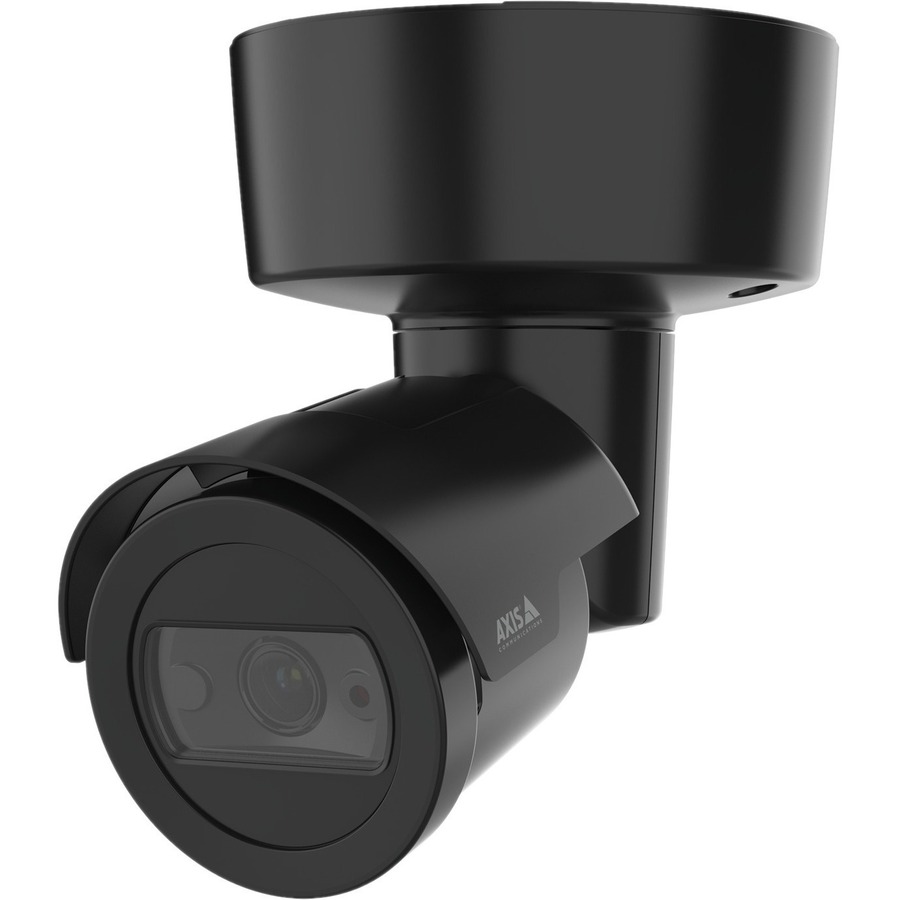

Axis 02133-001 Security Camera Overview
Ideal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it's easy to install and supports analytics with deep learning. Available in two lens alternatives.
With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles-all tailored to your specific needs. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there's both dark and light areas in the scene.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 39° Vertical field of view: 22°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- H.265
- H.264
- MJPEG
- H.264 (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- H.264H
- Zipstream
- H.264M
- H.264 HP
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
8 mm
Lens Included:
Yes
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/19000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Ceiling Mount
- Lighting Track Mount
- Pole Mount
- Pendant Mount
- Box Mount
- Conduit Mount
- Gang Plate
- Recessed Mount
- Wall Mount
Form Factor:
Bullet
Durability:
- Vandal Resistant
- Weather Resistant
- Dust Resistant
Product Color:
Black
Length:
6.7"
Diameter:
4"
Weight (Approximate):
1.08 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
- SD Card Local Storage
- Wide Dynamic Range
- PTZ
- Motion Detection
- Privacy Masking
- Password Protection
- HTTPS Encryption
- Tampering Alarm
Indoor/Outdoor:
Indoor/Outdoor
Impact Protection Rating:
IK08
Ingress Protection Rating:
- IP66
- IP67
Item Numbers
GTIN:
7331021073067
EAN:
7331021073067
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 02133-001 Security Camera is also known as
AXC-02133001
