HD Recording:
Yes
Axis 02112-001 Security Camera
Part Number:
02112-001
Model:
Parts
Axis Accessory Model Overview
Products and parts from Axis.

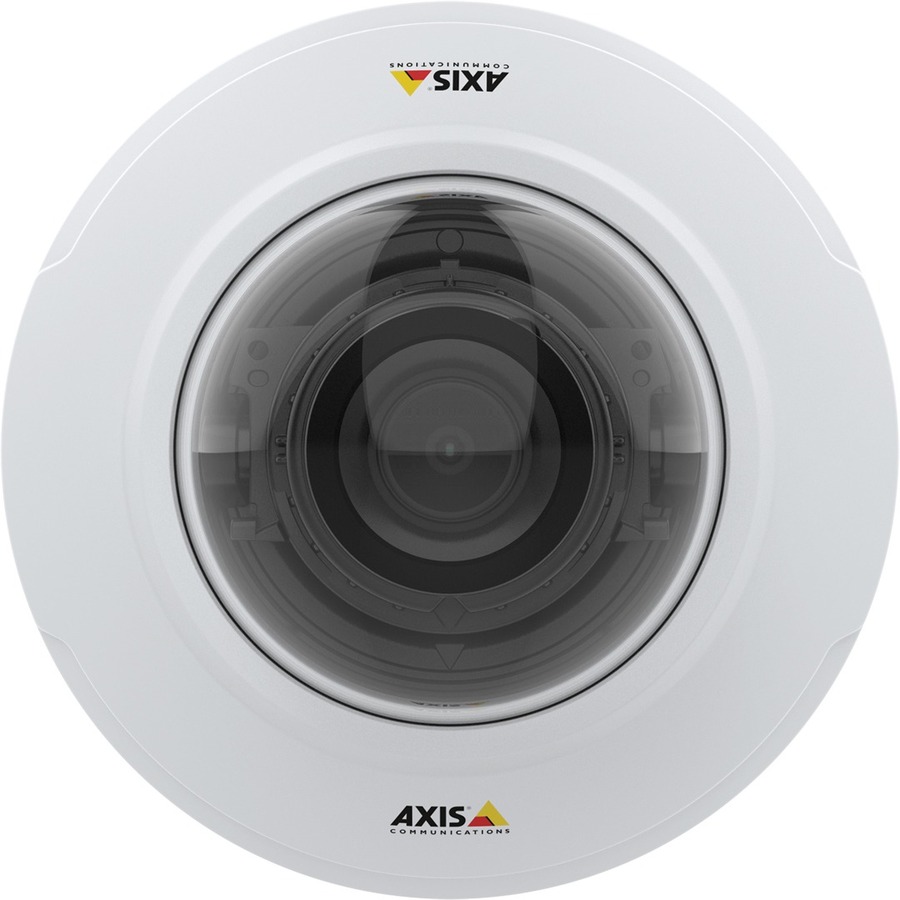

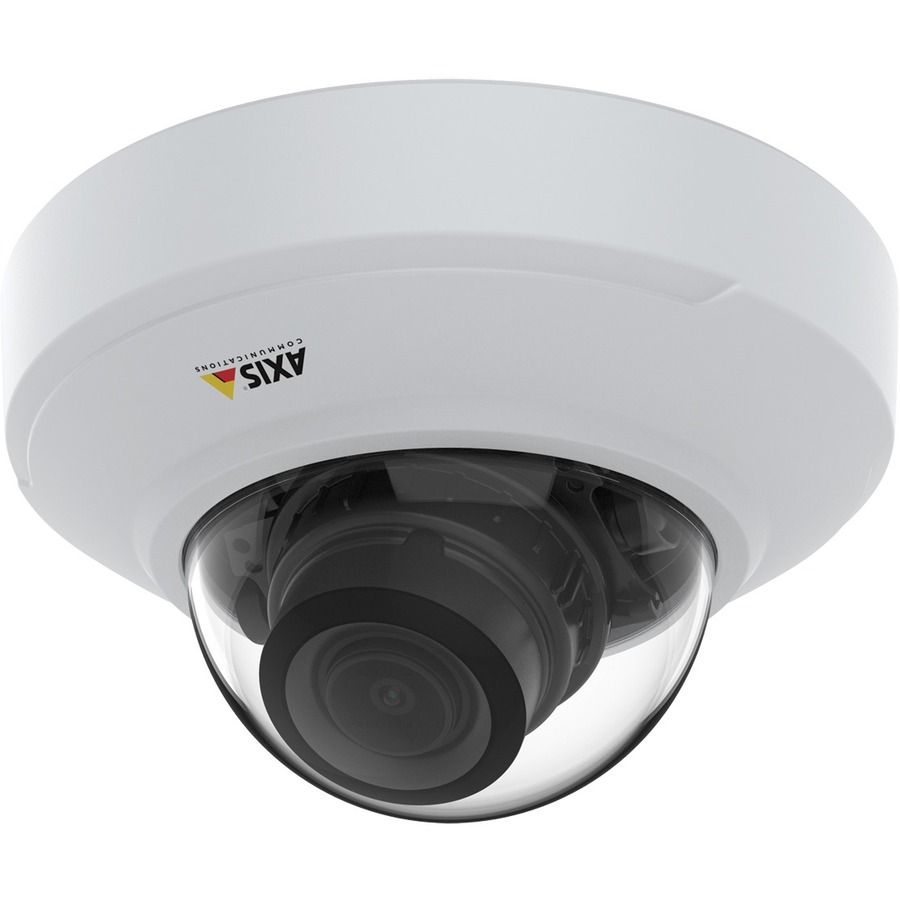

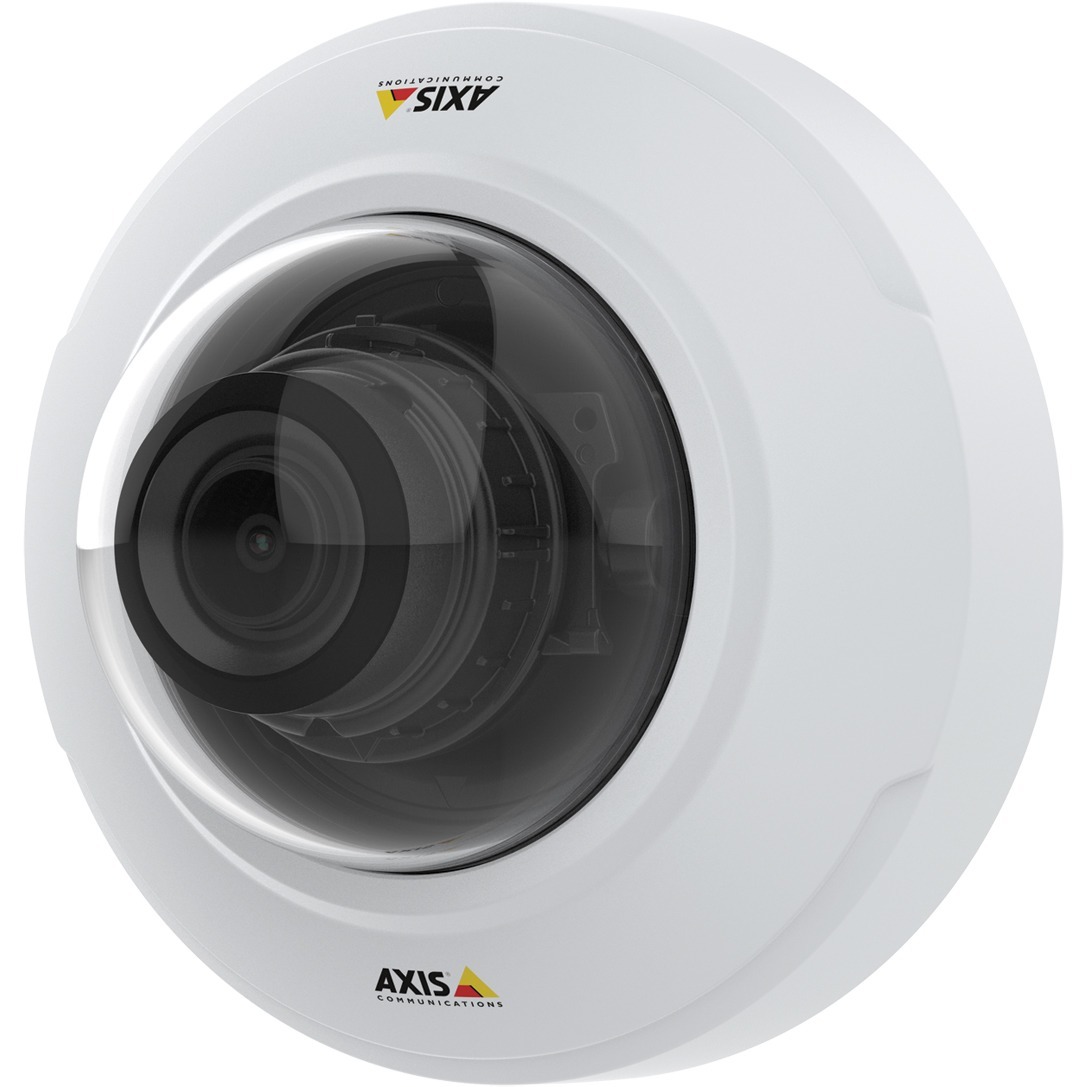

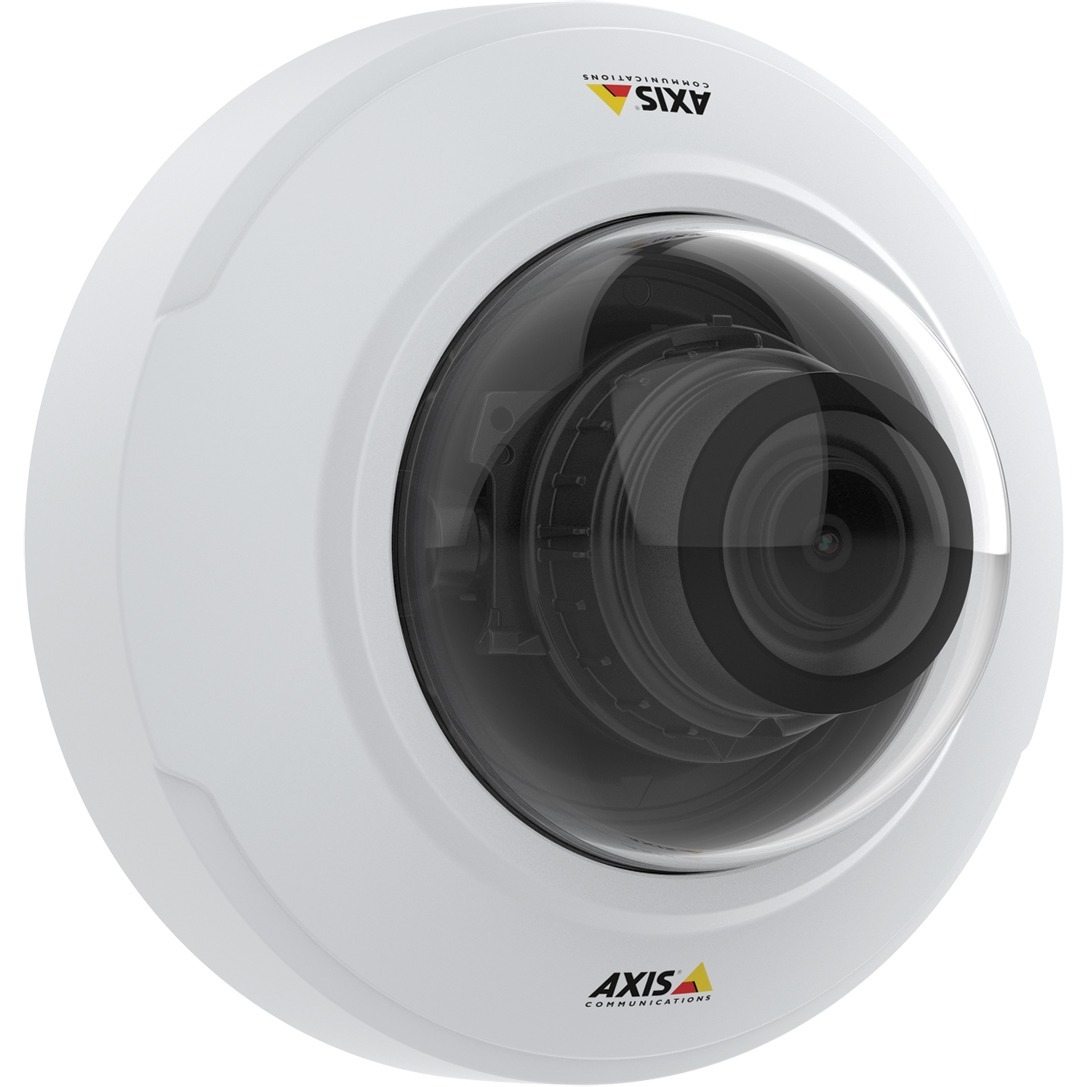

Axis 02112-001 Security Camera Overview
Compact, varifocal, D/N mini dome with dust- and vandal-resistant casing for easy indoor mounting. 3-6 mm lens with remote zoom and focus simplifying the installation. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 4MP in 4:3, 3MP in 16:9, max 30 fps with WDR. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced analytics. Axis Object Analytics, video motion detection and active tampering alarm. HDMI output (micro). MicroSD memory card slot for optional local video storage. AXIS Edge Vault for increased Cyber Security
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 100°-45° Vertical field of view: 72°-34°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
- H.265 (MPEG-H Part 2/HEVC)
- H.264 (MPEG-4 Part 10/AVC)
- H.264M
- H.264H
- H.265M
- H.265H
- MJPEG
Maximum Video Resolution:
2304 x 1728
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
6 mm
Lens Included:
Yes
Maximum Aperture:
f/1.9
Optical Zoom:
2x
Exposure
Shortest Shutter Speed:
1/37500 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
HDMI:
Yes
Network (RJ-45):
Yes
Power Description
Power Source Type:
PoE
Physical Characteristics
Mount Type:
- Wall Mount
- Ceiling Mount
- Recessed Mount
- Gang Plate
- Lighting Track Mount
- Pendant Mount
Form Factor:
Dome
Durability:
- Water Resistant
- Dust Resistant
- Impact Resistant
Height:
2.8"
Diameter:
4.8"
Weight (Approximate):
12.35 oz
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
113°F (45°C)
Operating Humidity:
85%
Miscellaneous
Features:
- SD Card Local Storage
- Day/Night
- Wide Dynamic Range
- Privacy Masking
- Motion Detection
- Shock Detection
- Human Detection
- Password Protection
- Mirror
- PTZ
- Vehicle Detection
Package Contents:
- M4216-V Dome Camera
- Installation Guide
- Windows decoder 1-User License
Impact Protection Rating:
IK08
Ingress Protection Rating:
IP42
TAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
7331021072800
EAN:
7331021072800
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 02112-001 Security Camera is also known as
AXC-02112001
