Axis 02109-001 Security Camera

Part Number: 02109-001
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Night Vision Distance
65.62 ft
Image Sensor Type
RGB CMOS

Product Description:

  Security Cameras, AXIS M3057-PLVE Mk II, M30 Series 6MP Outdoor-Ready Fixed Dome Network Camera, 360 Panoramic View
Explore all Axis Accessories
Add to Quote
Axis 02109-001 Security Camera
Axis 02109-001 Security Camera
Axis 02109-001 Security Camera
Axis 02109-001 Security Camera
Axis 02109-001 Security Camera Axis 02109-001 Security Camera Axis 02109-001 Security Camera Axis 02109-001 Security Camera

Axis Accessory Model Overview

Products and parts from Axis.

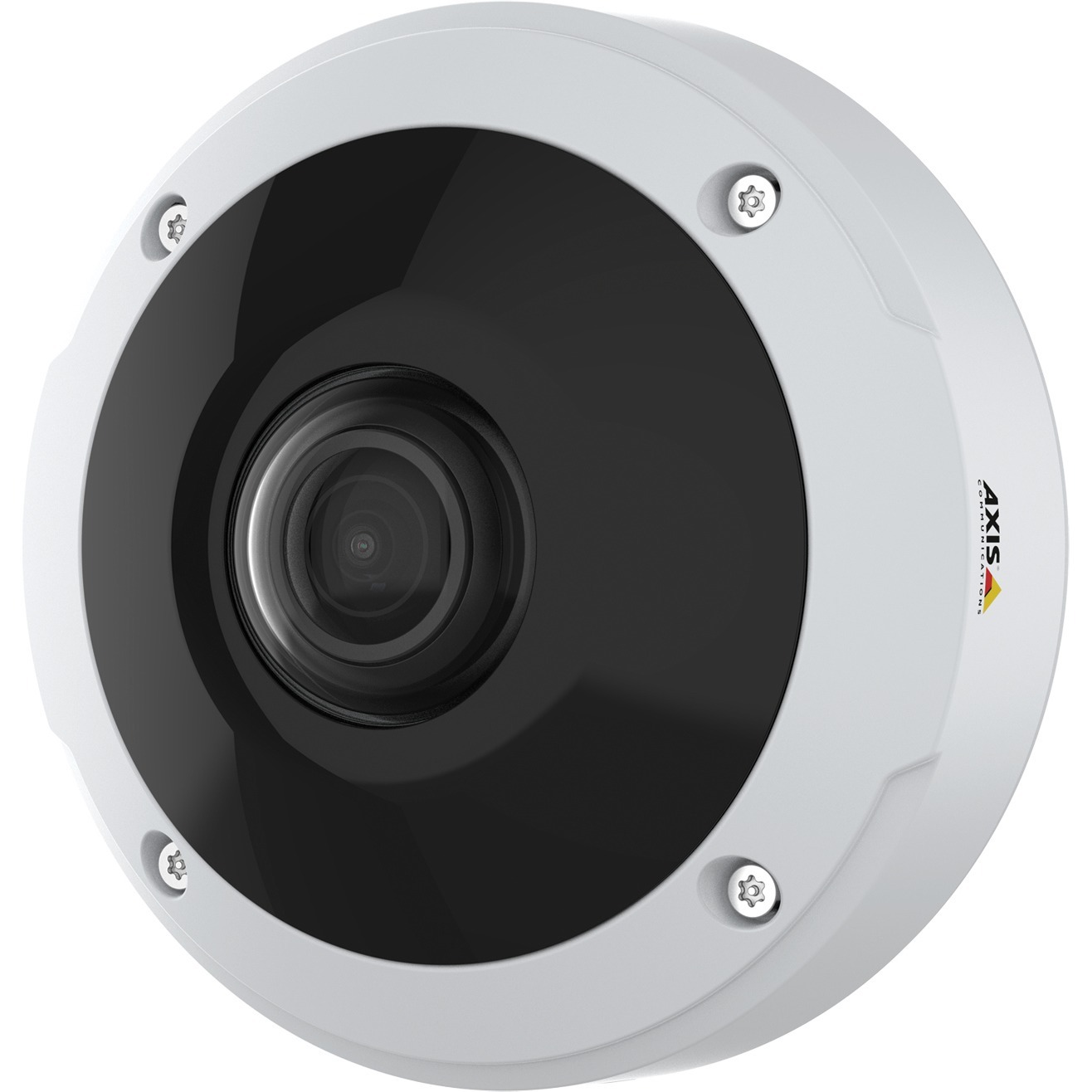

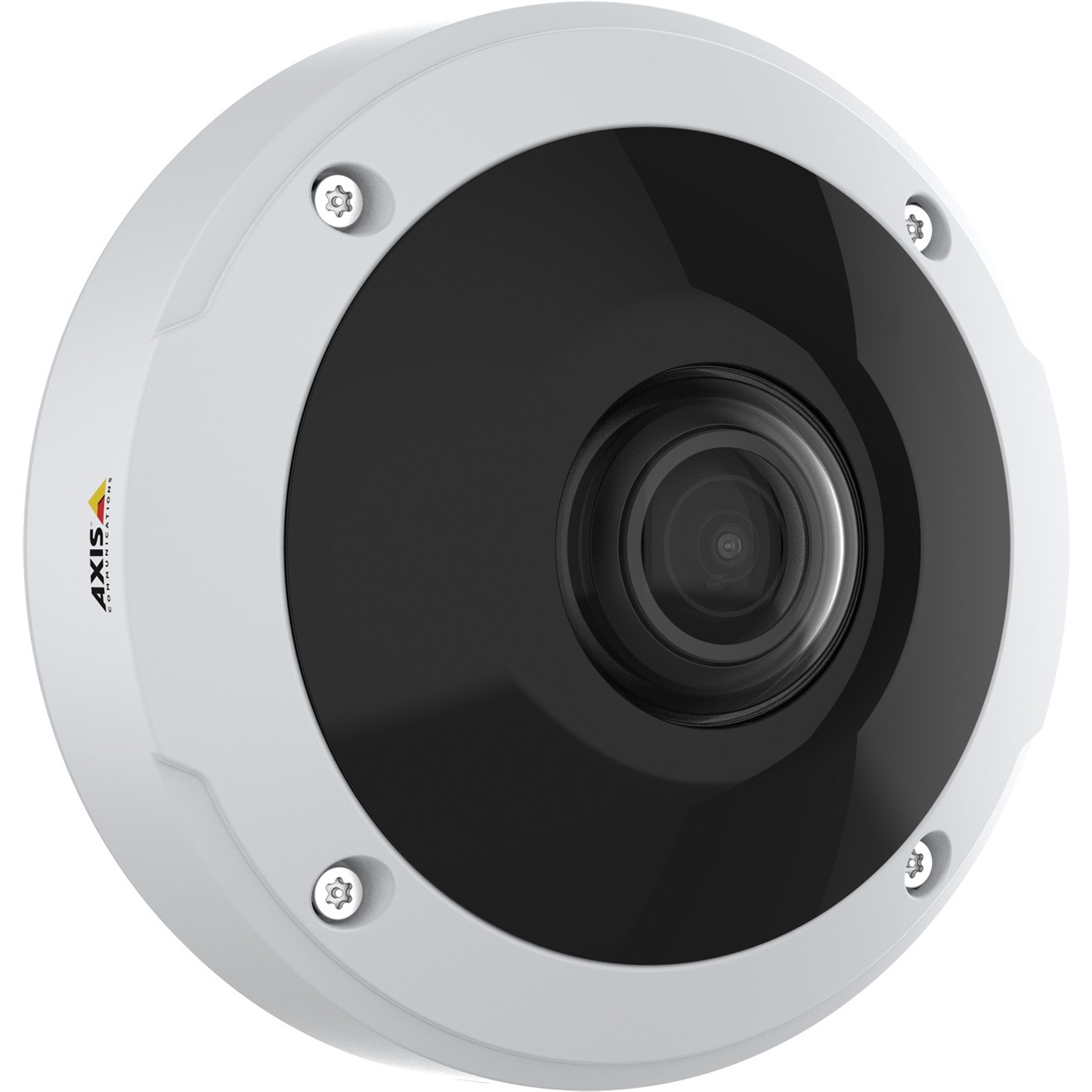

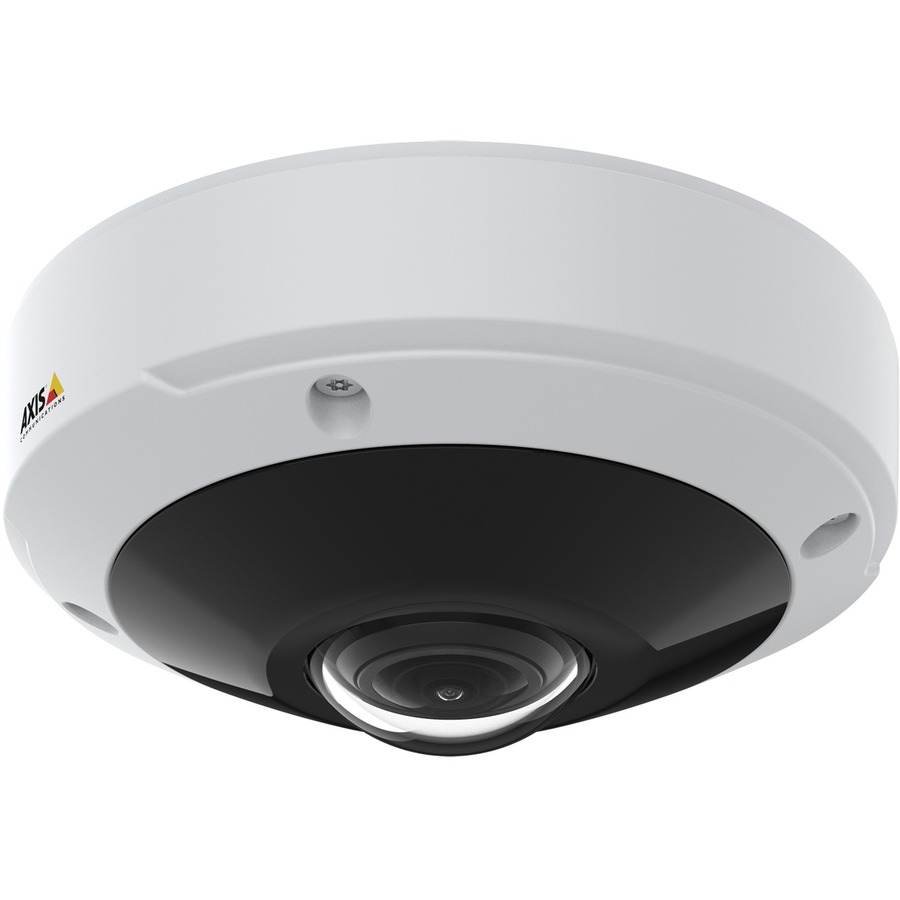

Axis 02109-001 Security Camera Overview
With its 6 MP sensor, AXIS M3057-PLVE Mk II offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. Perfect for video analytics, this compact mini dome also offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR allows for surveillance in pitch darkness. Furthermore, enhanced security functionality prevents unauthorized access and safeguards your system.
  • Complete 180° and 360° overview
  • Lightfinder, Forensic WDR, and OptimizedIR
  • Digital PTZ and dewarped views
  • Factory-focused with digital roll
  • Enhanced security features
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
65.62 ft
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 183° Vertical field of view: 183°
Effective Camera Resolution:
6 Megapixel
Video
Video Formats:
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
2560 x 1440
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.56 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/16000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Pendant Mount
  • Ceiling Mount
  • Pole Mount
  • Recessed Mount
  • Corner Mount
  • Wall Mount
  • Bracket Mount
  • Conduit Mount
  • Lighting Track Mount
  • Parapet Mount
Form Factor:
Dome
Durability:
  • Vandal Resistant
  • Dust Resistant
  • Water Resistant
Color:
White
Height:
2.6"
Diameter:
5.9"
Weight (Approximate):
1.54 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
165.2°F (74°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • PTZ
  • Day/Night
  • Auto Gain Control
  • Privacy Masking
  • Password Protection
  • HTTPS Encryption
  • SD Card Local Storage
  • Motion Detection
  • Tampering Alarm
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • M3057-PLVE Mk II Network Camera
  • Installation Guide
  • Windows Decoder 1-User License
  • Drill Hole Template
  • Cable Gaskets
  • Connector Guard
  • I/O Connector
  • RESISTORX TR20 Bit
  • Mounting Bracket
  • Cable Hole Lid
  • View Protector
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
Thailand
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021072770
EAN: 7331021072770
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 02109-001 Security Camera is also known as AXC-02109001 or 02109001.
