Full specifications (PDF)
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
65.62 ft
Night Vision Type:
Infrared
Axis M30 Series Security Camera Model Overview
The Axis M30 Series Network Camera has an innovative and unique design, specifically developed for recessed mounting in drop ceilings. The cameras offer discreet video surveillance solutions ideal for retail stores, banks and other office buildings.
Axis 02018-001 Security Camera Overview
6 MP outdoor-ready with 360° panoramic view and audio capture:

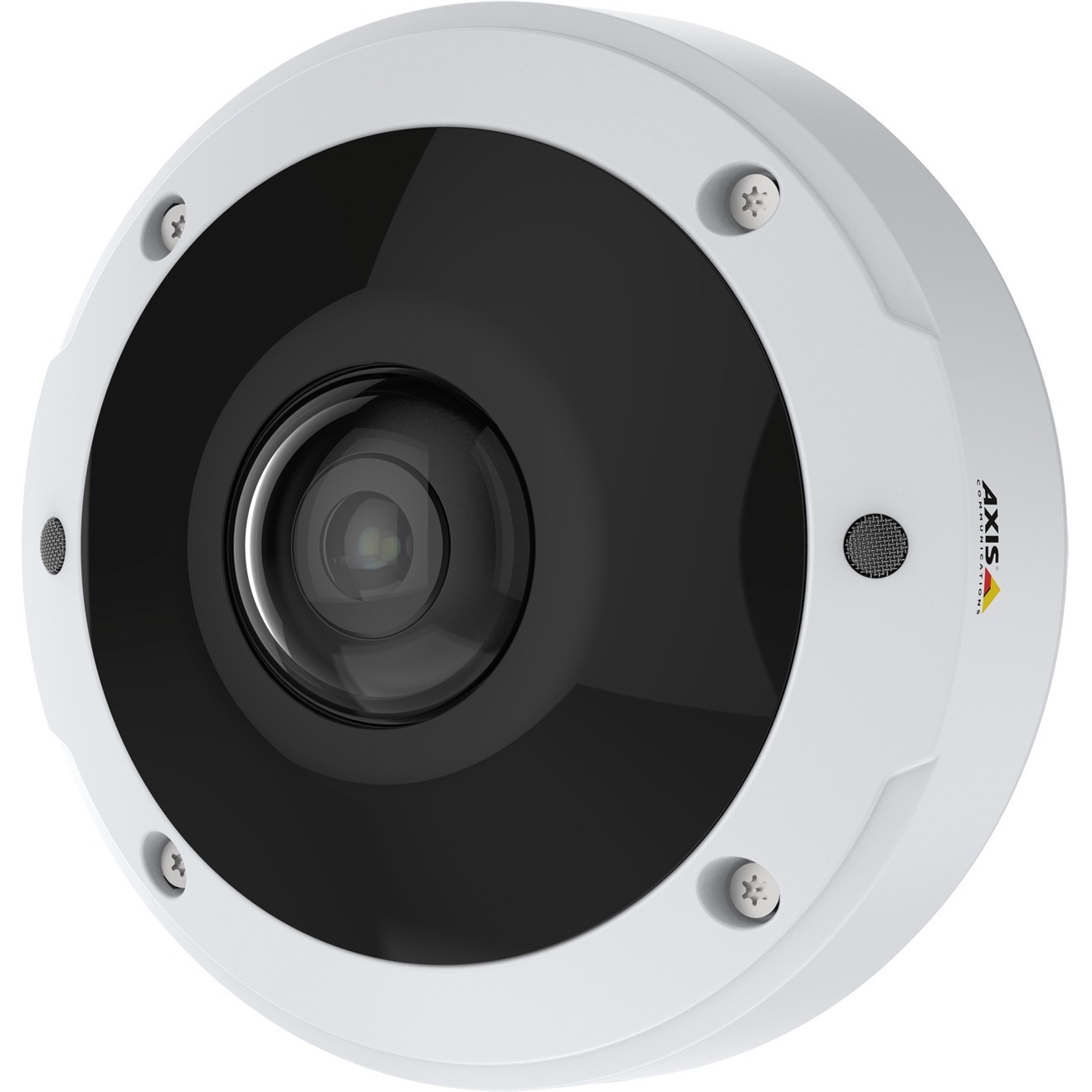

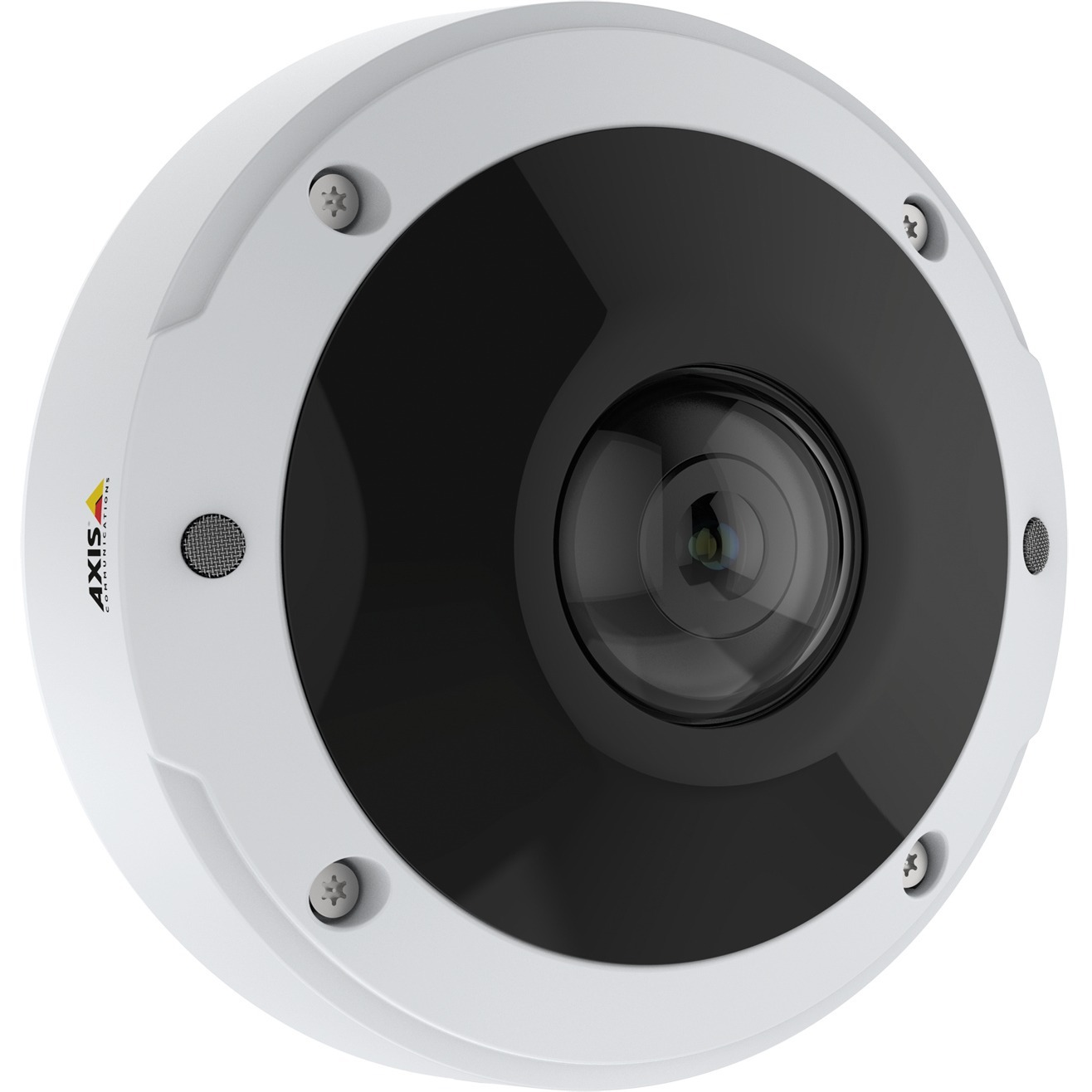

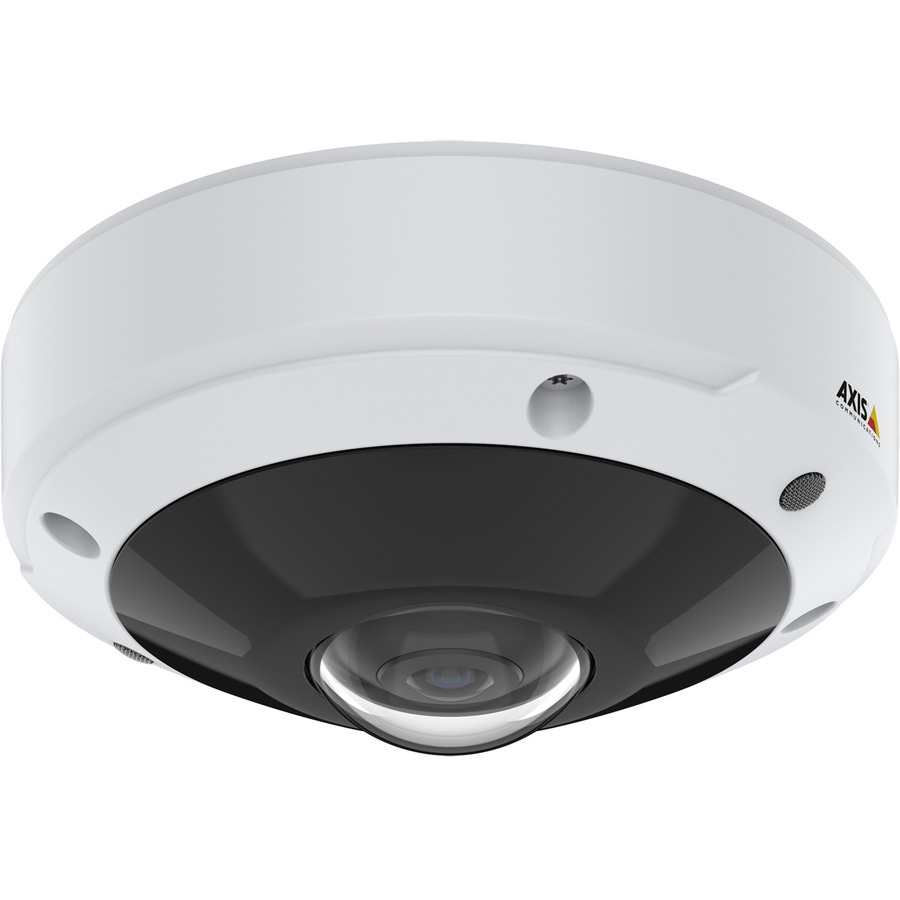

With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 183° Vertical field of view: 183°
Effective Camera Resolution:
6 Megapixel
Video
Video Formats:
- H.264 (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- H.264
- H.265
- MJPEG
Maximum Video Resolution:
2560 x 1920
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.56 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/16000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Power Source Type:
PoE
Physical Characteristics
Mount Type:
- Pendant Mount
- Conduit Mount
- Ceiling Mount
- Pole Mount
- Wall Mount
- Corner Mount
- Lighting Track Mount
- Parapet Mount
Form Factor:
Dome
Product Color:
White
Height:
2.6"
Diameter:
5.9"
Weight (Approximate):
1.54 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
- Built-in IR LED
- Removable IR Cut-off Filter
- Day/Night
- Motion Detection
- Tampering Alarm
- SD Card Local Storage
- Multi-view Stream
- Automatic White Balance
- Auto Gain Control
- Privacy Masking
- Video Management System
- PTZ
- Wide Dynamic Range
- Built-in Microphone
- Audio Detection
- Noise Reduction
Indoor/Outdoor:
Outdoor
Package Contents:
- M3077-PLVE Network Camera
- Installation Guide
- Windows Decoder 1-user license
- Drill Hole Template
- Cable Gaskets
- Connector Guard
- I/O Connector
- RESISTORX TR20 bit
- Mounting Bracket
- Cable Hole Lid
- View Protector
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
Thailand
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
7331021070813
EAN:
7331021070813
UNSPSC:
46171610
