Recording Formats:
HD
HD Recording:
Yes
Axis 01920-001 Security Camera
Part Number:
01920-001
Model:
Parts
Axis Accessory Model Overview
Products and parts from Axis.

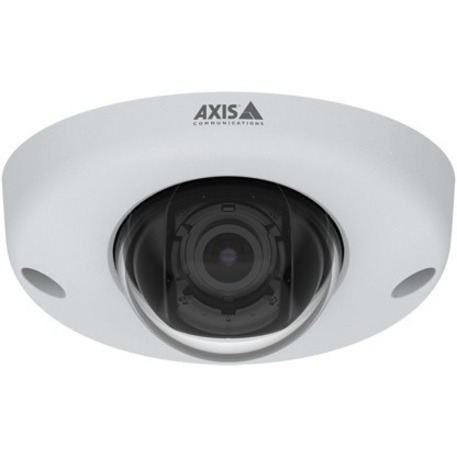

Axis 01920-001 Security Camera Overview
Specifically designed for onboard surveillance, AXIS P3925-R complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera offers extended capabilities for analytics. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.
- Vandal-resistant, metal casing
- Complies with EN50155, and NFPA 130
- Lightfinder and Forensic WDR
- Electronic image stabilization
- Enhanced security features
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 110° Vertical field of view: 62°
Video
Video Formats:
- H.264 (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- MJPEG
- H.264
- H.265
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
45 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/33500 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Pendant Mount
- Wall Mount
Form Factor:
Dome
Durability:
- Vandal Resistant
- Water Proof
- Dust Proof
Height:
1.9"
Diameter:
4.3"
Weight (Approximate):
14.11 oz
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
95%
Miscellaneous
Features:
- Electronic Image Stabilization
- Privacy Masking
- Defog
- PTZ
- Password Protection
- HTTPS Encryption
- Shock Detection
- SD Card Local Storage
- Motion Detection
- Tampering Alarm
- Day/Night
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
- P3925-R Network Camera
- Installation Guide
- Windows Decoder 1-User License,
- Drill Hole Template
- Lens Tool
- Resistorx L-Key
Impact Protection Rating:
IK10
Ingress Protection Rating:
- IP66
- IP67
Country of Origin:
Japan
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
7331021069022
EAN:
7331021069022
UNSPSC:
46171610
