Axis 01772-001 Security Camera

The Axis 01772-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Axis - AXIS M1135-E 2 Megapixel Network Camera - Box - H.265/MPEG-H HEVC, H.264/MPEG-4 AVC, MJPEG, H.265, H.264 - 1920 x 1080 - 3.5x Optical - RGB CMOS - Column Mount, Ceiling Mount, Wall Mount, Corner Mount, Bracket Mount, Pole Mount, Conduit Mount
  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 resolution for surveillance in real-time
  • Features RGB CMOS sensor
  • 10.50 mm maximum focal length provides incredible detail and how effective is your network camera
  • 3.5x optical zoom for desired image clarity and maximum capturing convenience
  • HD recording format for stunning, vivid video results with maximum efficiency
  • Zoom lens type provides enhanced visual resolution and effectively maintains focus when its focal length changes
  • Column Mount mount type is reliable and allows trouble-free and easy usage
  • Wired connectivity technology delivers exceptional performance to offer maximum usability
Read More
Discontinued Need Assistance?
Add to Quote
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 01772-001 Security Camera Overview
  • Compact and flexible design
  • Lightfinder and Forensic WDR
  • Audio input
  • Exchangeable CS mount lens
  • Zipstream supporting H.264 and H.265

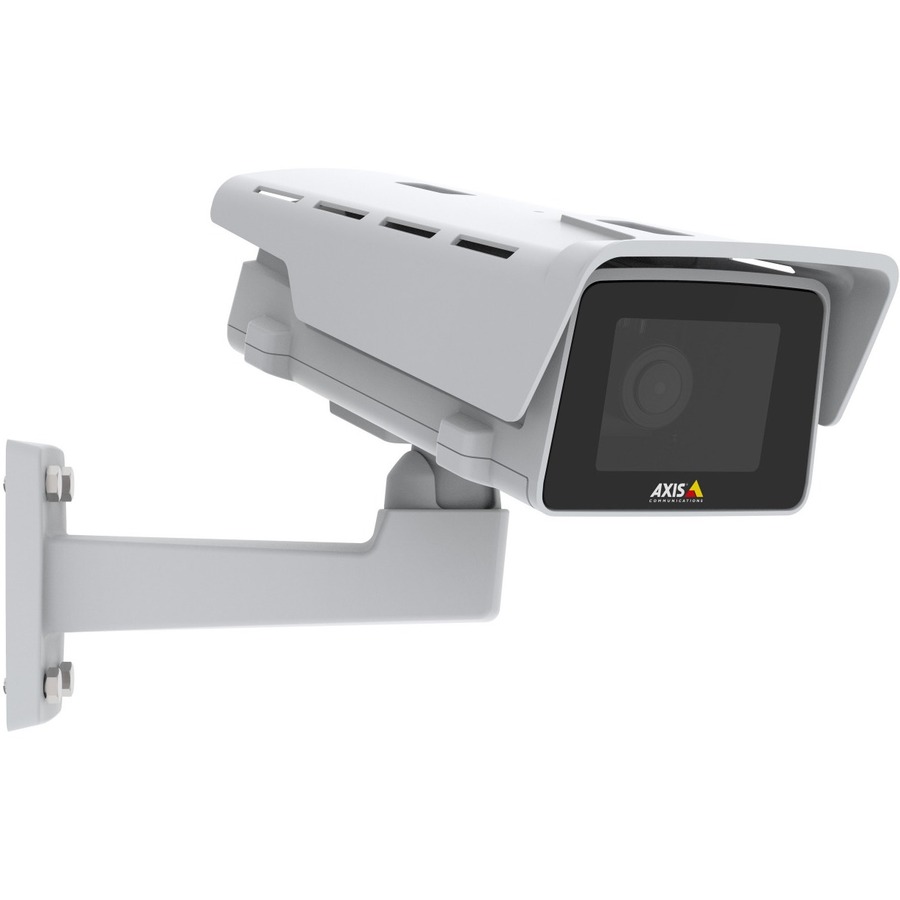

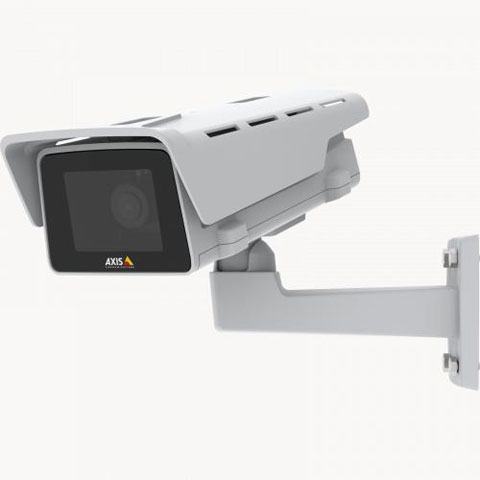

AXIS M1135-E is a compact, outdoor-ready network camera that delivers excellent image quality in 2 MP resolution. Designed as a visible deterrent, it helps discourage trespassing, antisocial or criminal behavior. It offers flexible, low-cost installation making it ideal for various industrial or commercial surveillance situations, such as warehouses, storage or delivery areas.

More bang for your buck

This affordable Axis M-line camera offers one-way audio allowing you to record video with sound. And, with a video streaming indicator, it's easy to check that the video is up and running. Featuring Axis Zipstream with support for both H.264 and H.265 video compression it significantly reduces bandwidth and storage requirements without compromising image quality. Thanks to support for PoE and redundant DC power, you get flexible installation and your data is safeguarded in the event of a power outage.

Furthermore, it offers enhanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot ensures only authorized firmware is installed and that the firmware hasn't been compromised.

Sharp images even in low light

AXIS M1135-E offers 2 MP resolution at up to 30 fps and delivers excellent video quality even in low light conditions. It features Axis Lightfinder for images in true colors even in low light and with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Furthermore, it offers a CS-mount with interchangeable lenses, so you can easily change lens and ensure you capture the exact images you need. Use our lens calculator to select a lens that meets your specific requirements.

Designed for deterrence

This robust, outdoor-ready camera has you covered both day and night - outside in the cold, heat, rain or sun, or inside your office or store. It comes enclosed in an IP66-, IK10- and NEMA 4X-rated casing to protect against water, corrosion, dust and impacts. AXIS M1135-E sends a powerful message of deterrence to potential offenders to let them know you're watching. It provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • H.265/MPEG-H HEVC
  • H.264/MPEG-4 AVC
  • MJPEG
  • H.265
  • H.264
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
3 mm
Maximum Focal Length:
10.50 mm
Optical Zoom:
3.5x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Column Mount
  • Ceiling Mount
  • Wall Mount
  • Corner Mount
  • Bracket Mount
  • Pole Mount
  • Conduit Mount
Form Factor:
Box
Product Color:
White
Height:
14.6"
Width:
5.6"
Weight (Approximate):
4 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
  • M1135-E Network Camera
  • T94Q01A Wall Mount
  • Torx T20 Screw Driver
  • Torx T30 Screw Bit
  • Connector Kit
  • Installation Guide
  • 1 x Windows Decoder User License
Country of Origin:
Poland
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7331021067554
EAN: 7331021067554
UNSPSC: 46171610
