Axis 01767-001 Security Camera

Axis Q9216-SLV  -  Security Cameras, Axis Q9216-SLV, 4 Megapixel HD Network Camera, Dome, TAA Compliant, 49.21 ft Night Vision, H.264, H.265, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG, 2304 x 1728 Fixed Lens, RGB CMOS, Conduit Mount, Corner Mount, Impact Resistant

  • Anti-ligature, robust (IK10+)
  • Corner camera- no blind spots
  • WDR and invisible IR (940 nm)
  • Compact design - easy to install
  • Zipstream supporting H.264 and H.265
Read More
Need a different version? See all Axis Parts Accessories

Price Match Guarantee

Found a better price? We'll match it within 30 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$1,637.34
Axis 01767-001 Security Camera
Axis 01767-001 Security Camera

Axis Parts Accessory Model Overview

Products and parts from Axis.
Axis 01767-001 Security Camera Overview

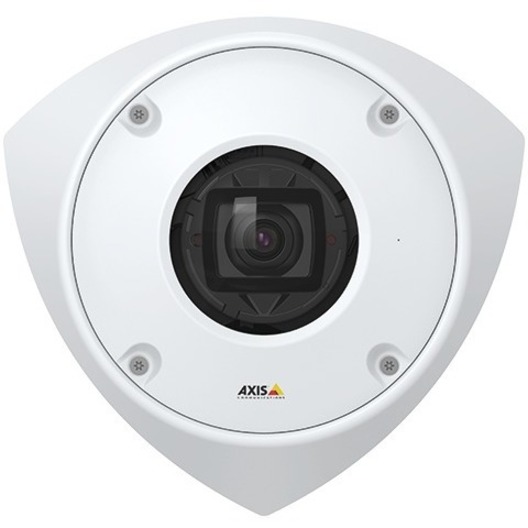

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it's ideal for covert video surveillance in complete darkness. With an IK10+/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.
  • Anti-ligature, robust (IK10+)
  • Corner camera - no blind spots
  • WDR and invisible IR (940 nm)
  • Compact design - easy to install
  • Zipstream supporting H.264 and H.265
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
49.21 ft
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 125° Vertical field of view: 95°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.264
  • H.265
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • MJPEG
Maximum Video Resolution:
2304 x 1728
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.40 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/32500 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Conduit Mount
  • Corner Mount
Form Factor:
Dome
Durability:
Impact Resistant
Product Color:
White
Height:
5.2"
Width:
8.2"
Depth:
6.9"
Weight (Approximate):
3.53 lb
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
85%
Miscellaneous
Features:
  • Built-in Microphone
  • Privacy Masking
  • Password Protection
  • HTTPS Encryption
  • Shock Detection
  • SD Card Local Storage
  • Motion Detection
  • Tampering Alarm
  • Day/Night
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • Q9216-SLV Network Camera
  • Installation Guide
  • Windows Decoder 1-User License
  • AVHS Authentication Key
  • AXIS Device Microphone A
  • AXIS Connector A 4-Pin 2.5 Straight
  • Cable Gaskets
  • RESISTORX 20 bit
Impact Protection Rating:
IK10+
Ingress Protection Rating:
  • IP66
  • IP69
  • IP6K9K
Country of Origin:
Poland
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021067509
EAN: 7331021067509
UNSPSC: 46171610
