Axis 01759-001 Security Camera

Part Number: 01759-001
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Image Sensor Type
RGB CMOS
Color Supported
ColorMonochrome

Product Description:

  Security Cameras, Axis P5654-E, 900 Kilopixel Indoor/Outdoor HD Network Camera, Color, Monochrome, Dome, TAA Compliant, H.264, H.265, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG, 1280 x 720, 4 mm- 84.60 mm Varifocal Lens, 21x Optical, RGB CMOS, Ceiling Mount, Wall Mount, Pendant Mount, Pole Mount, Parapet Mount, Recessed Mount, Corner Mount, IK10, IP66

Axis Accessory Model Overview

Products and parts from Axis.
Axis 01759-001 Security Camera Overview

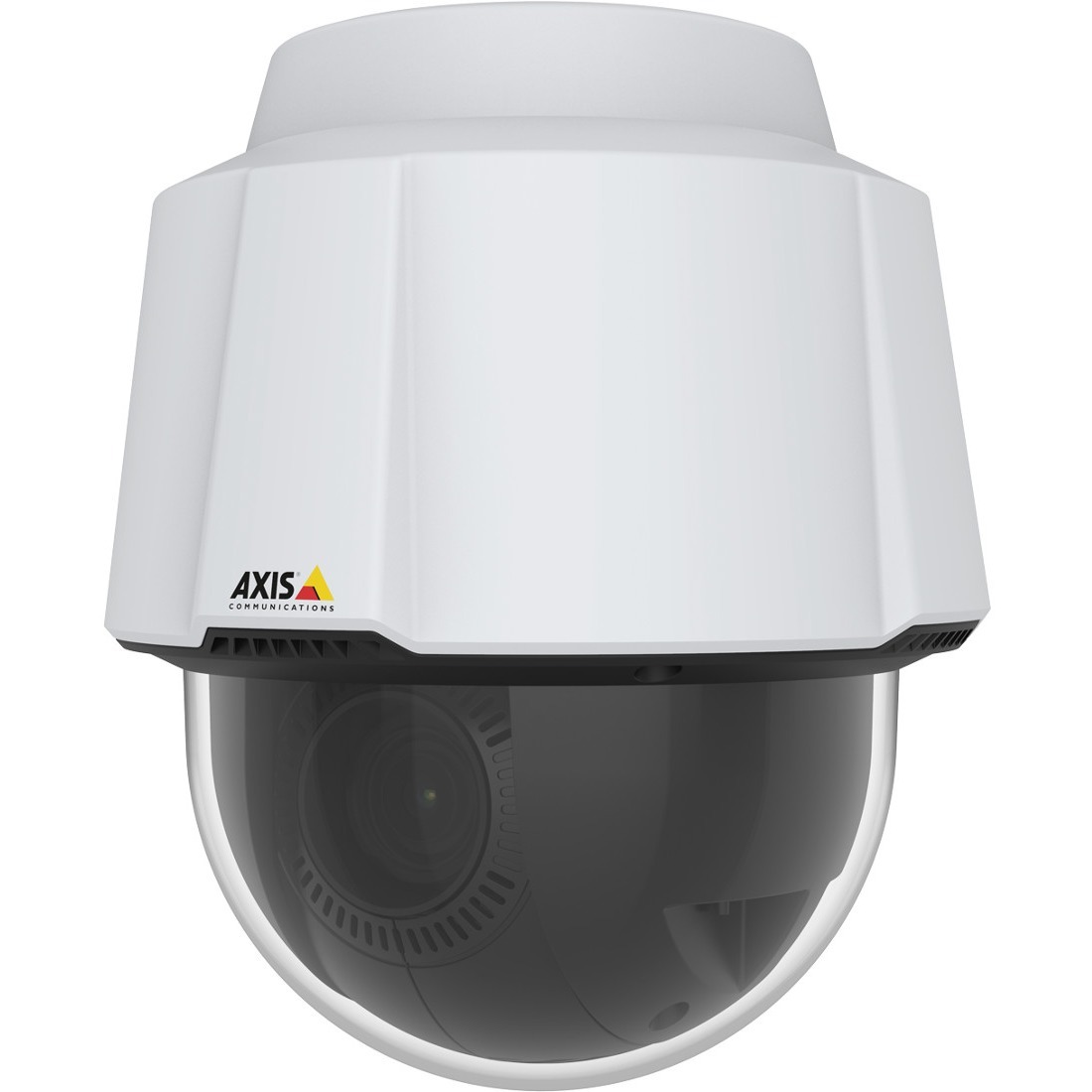

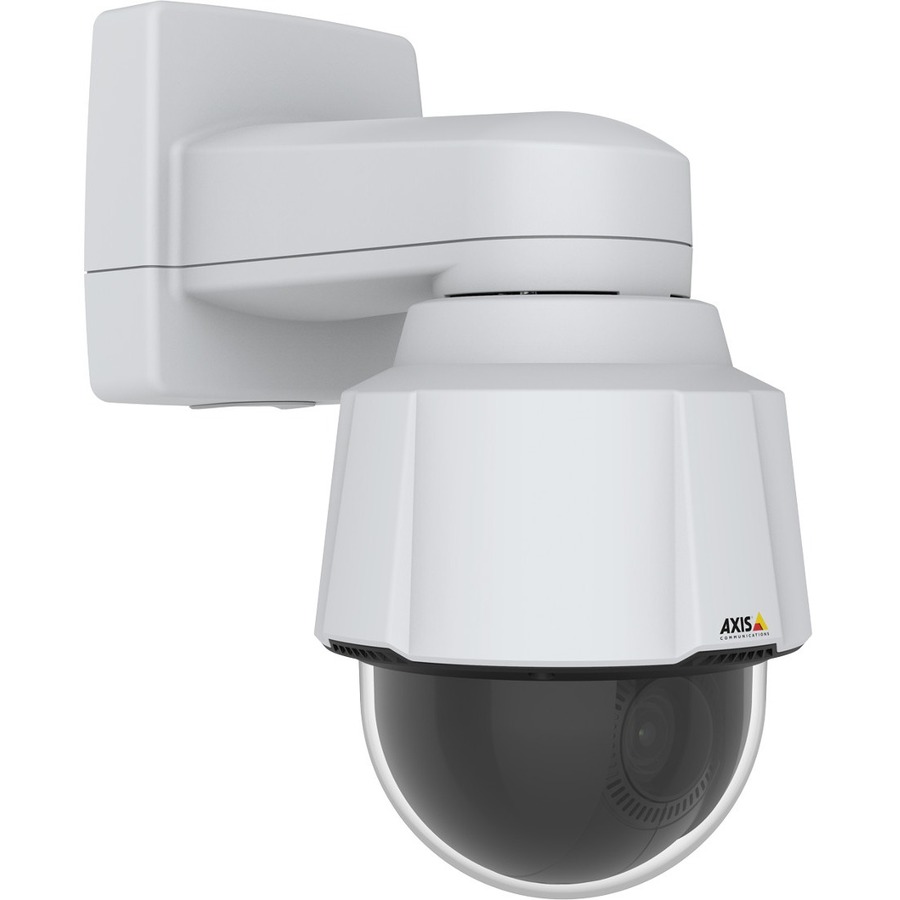

AXIS P5654-E PTZ Network Camera is a cost-effective PTZ camera that offers wide area coverage with 77° field of view. Thanks to the newest generation of Axis chip, it offers excellent video quality, even in the most challenging light conditions, and a high level of defense to protect your system. It's ideal for deterrent surveillance of large indoor and outdoor areas and provides great details when zooming in.

Great images - anytime

AXIS P5654-E offers superb image quality in HDTV 720p with 21x optical zoom. It's got Forensic WDR for clarity even when there's both dark and light areas in the scene. And Lightfinder 2.0 for low-light images with more saturated colors and sharper images of moving objects. Additionally, it has electronic image stabilization (EIS) for stable images despite vibration. And focus recall gives you instant focus in challenging light conditions. Plus, it comes with four scene profiles (indoor, outdoor, forensic and traffic) with different image settings optimized to suit specific scenarios.

Keeping you secure

This PTZ camera is packed with enhanced security functionality to safeguard your system and prevent unauthorized access. Signed firmware and secure boot guarantees that the firmware hasn't been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.

And there's more...

This versatile camera with IP66, NEMA 4X and IK10 ratings can handle temperatures ranging from -30°C to 50°C (-22°F to 122°F). Based on new generation chip, it offers extended processing power for handling of advanced analytics. And thanks to Axis Zipstream technology with H.264 and H.265 it preserves all the important details while significantly lowering bandwidth and storage requirements.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
  • Color
  • Monochrome
Field of View:
Horizontal field of view: 77.0°- 3.6°, Vertical field of view: 43.1°- 2.0°
Effective Camera Resolution:
900 Kilopixel
Video
Video Formats:
  • H.264
  • H.265
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • MJPEG
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4 mm
Maximum Focal Length:
84.60 mm
Lens Included:
Yes
Minimum Aperture:
f/1.6
Maximum Aperture:
f/4.5
Optical Zoom:
21x
Exposure
Shortest Shutter Speed:
1/66500 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source Type:
  • AC
  • PoE
Physical Characteristics
Mount Type:
  • Ceiling Mount
  • Wall Mount
  • Pendant Mount
  • Pole Mount
  • Parapet Mount
  • Recessed Mount
  • Corner Mount
Form Factor:
Dome
Product Color:
White
Height:
8.5"
Diameter:
7.4"
Weight (Approximate):
5.51 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • PTZ
  • Electronic Image Stabilization
  • Day/Night
  • Built-in Card Reader
  • Cross Line Detection
  • Motion Detection
  • White Balance
  • SD Card Local Storage
  • Password Protection
  • HTTPS Encryption
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • P5654-E PTZ Network Camera
  • RJ45 Push-pull Connector (IP66)
  • Hard Ceiling Mount
  • Spring Pipe Adapter
  • U-profile Pipe Adapter
  • Installation Guide
  • Windows Decoder 1-user License
  • AVHS Authentication Key
  • Smoked Dome
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
Mexico
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021067424
EAN: 7331021067424
UNSPSC: 46171610
