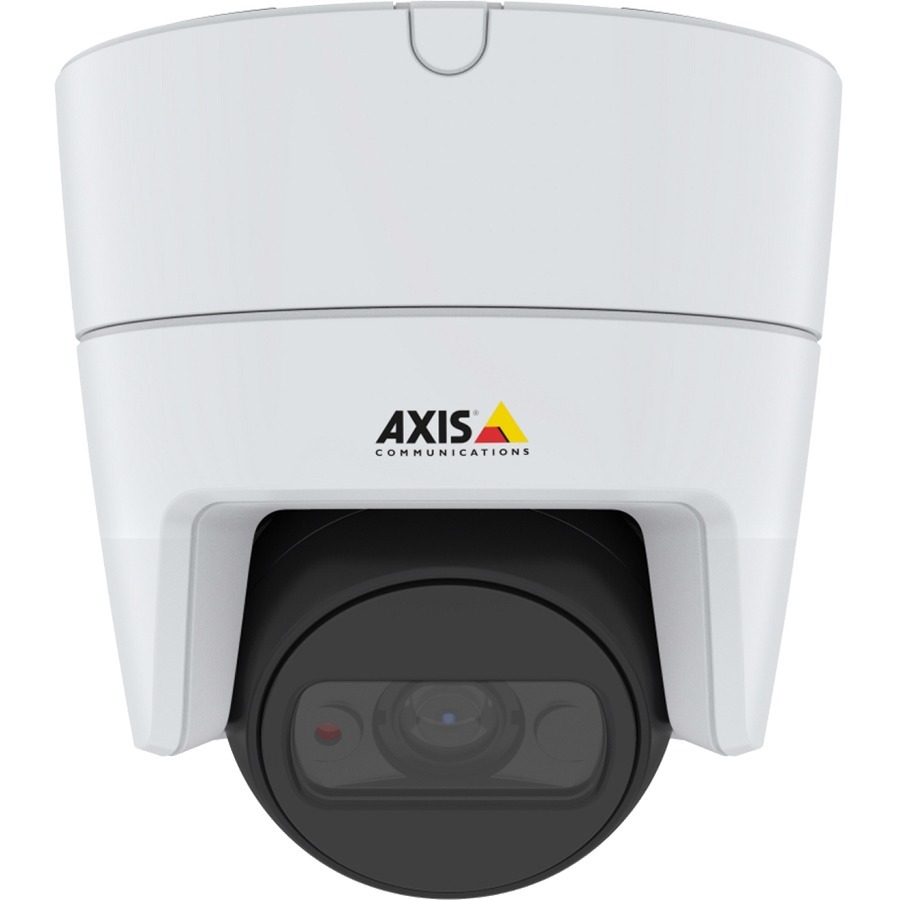

Axis 01605-001 Security Camera

Axis - AXIS M3116-LVE Network Camera
  • 4 MP video quality
  • Forensic WDR, Lightfinder and IR illumination
  • Zipstream supporting H.264 and H.265
  • Signed firmware and secure boot
  • Flat-faced design suppressing light reflections
Read More
$490.23
In Stock
Add to Quote
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 01605-001 Security Camera Overview

AXIS M3116-LVE is an affordable, flat-faced dome that offers 4 MP video and an excellent wide-angle view. This compact and discreet camera includes IR illumination for sharp video even in challenging light or complete darkness. It's ideal for surveillance in a wide range of locations, including hotels, restaurants, retail stores, and offices.

Smooth, sharp video


AXIS M3116-LVE offers excellent 4 MP resolution at up to 30 fps to deliver clear, sharp video of moving objects. It features Axis Forensic WDR which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for increased light sensitivity and clear colors in low light. It's perfect for monitoring inside and outside of various premises where there's often poor light conditions.

Light up the night


This flat-faced dome is designed to suppress light reflections and deliver excellent image quality and usability. It offers a wide-angle view of 130°, and with built-in IR illumination you'll enjoy clear, reflection-free footage in low light or complete darkness and vibrant colors during the day. So, there's no need for extra lighting- you get unobtrusive surveillance both day and night.

Fits in anywhere


AXIS M3116-LVE offers flexible and reliable installation. It's suitable for both indoor and outdoor surveillance and can be mounted on walls or ceilings. Kits are also available for mounting on pendants or on junction boxes. And, with a 3-axis camera angle adjustment, this compact and discreet flat-faced dome can be easily leveled and directed. Furthermore, the impact-resistant, IK08-rated casing can be re-painted in any color to blend in with specific surroundings.

It offers enhanced security features to prevent unauthorized access and safeguard your system. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements. Furthermore, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.

Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
65.62 ft
Night Vision Type:
Infrared
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view : 130 ° ;Vertical field of view : 72 °
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.264
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264 BP
  • H.264 (MP)
  • H.264 HP
  • H.265
  • H.265 (MPEG-H Part 2/HEVC)
  • H.265 (MP)
  • Motion JPEG
Maximum Video Resolution:
2688 x 1512
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.40 mm
Lens Included:
Yes
Maximum Aperture:
f/2.1
Exposure
Shortest Shutter Speed:
1/33500 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Pole Mount
  • Ceiling Mount
  • Conduit Mount
  • Pendant Mount
  • Wall Mount
  • Gang Box Mount
  • Junction Box Mount
  • Lighting Track Mount
  • Corner Mount
  • Bracket Mount
Form Factor:
Dome
Durability:
  • Impact Resistant
  • Vandal Resistant
Product Color:
White
Height:
3.7"
Diameter:
4"
Weight (Approximate):
13.76 oz
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Wide Dynamic Range
  • SD Card Local Storage
  • Day/Night
  • Removable IR Cut-off Filter
  • White Balance
  • Auto Gain Control
  • Defog
  • Privacy Masking
  • PTZ
  • HTTPS Encryption
  • Password Protection
  • Motion Detection
  • Active Tampering Alarm
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • M3116-LVE Network Camera
  • Installation Guide
  • Windows Decoder 1-user License
  • Torx L-Key
  • Connector Guard
  • Cable Gasket
Impact Protection Rating:
IK08
Ingress Protection Rating:
  • IP66
  • IP67
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021065772
EAN: 7331021065772
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 01605-001 Security Camera is also known as AXC-01605001
