HD Recording:
Yes
Axis 01553-001 Security Camera
Part Number:
01553-001
Model:
Parts
Axis Accessory Model Overview
Products and parts from Axis.
Axis 01553-001 Security Camera Overview

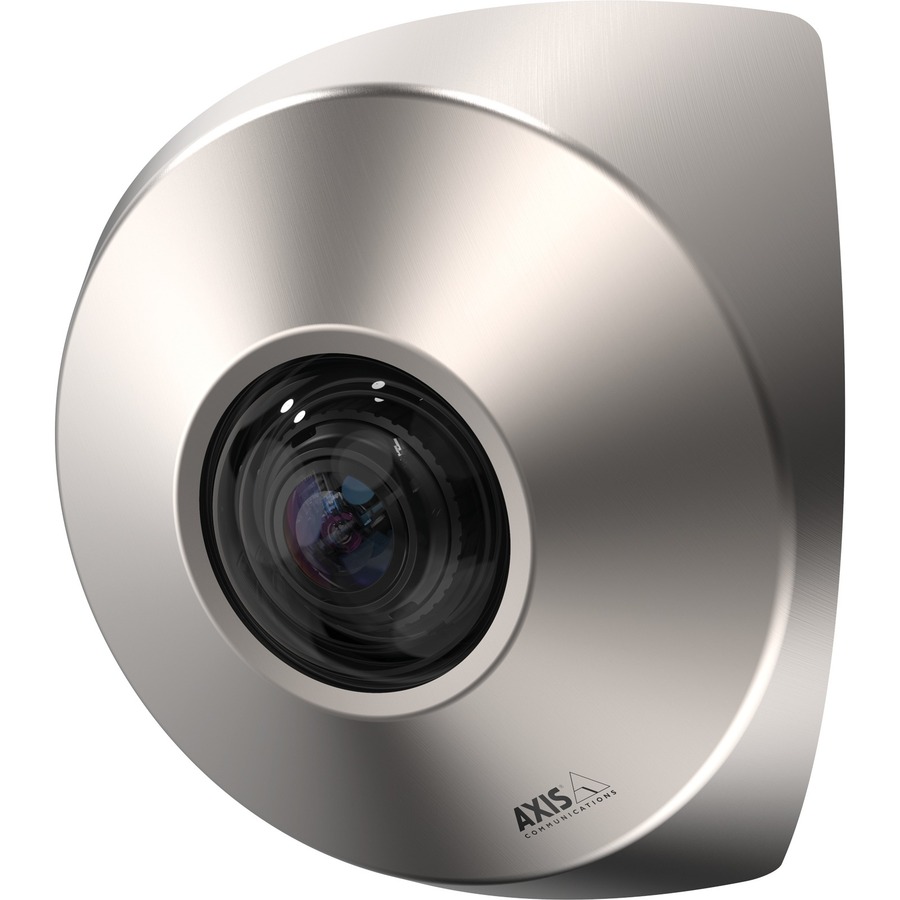

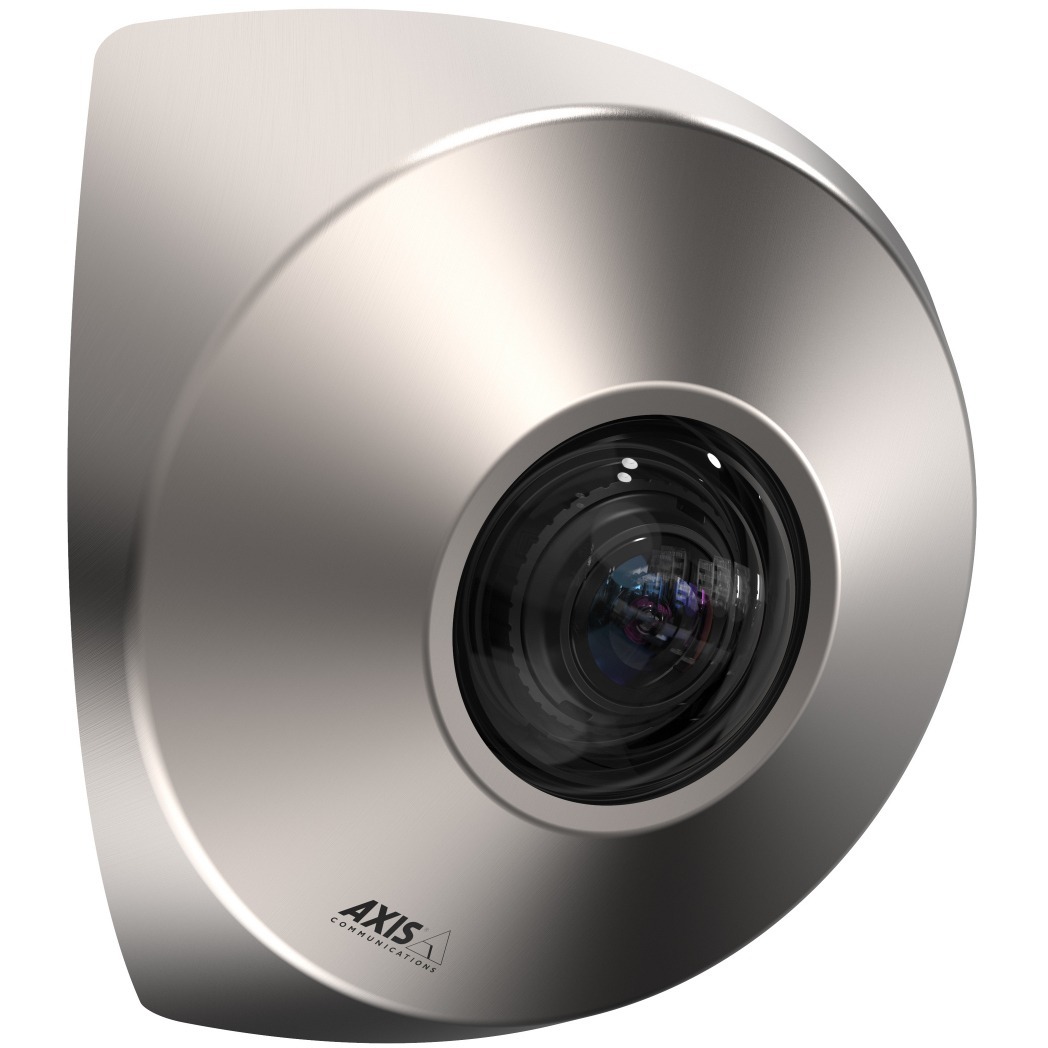

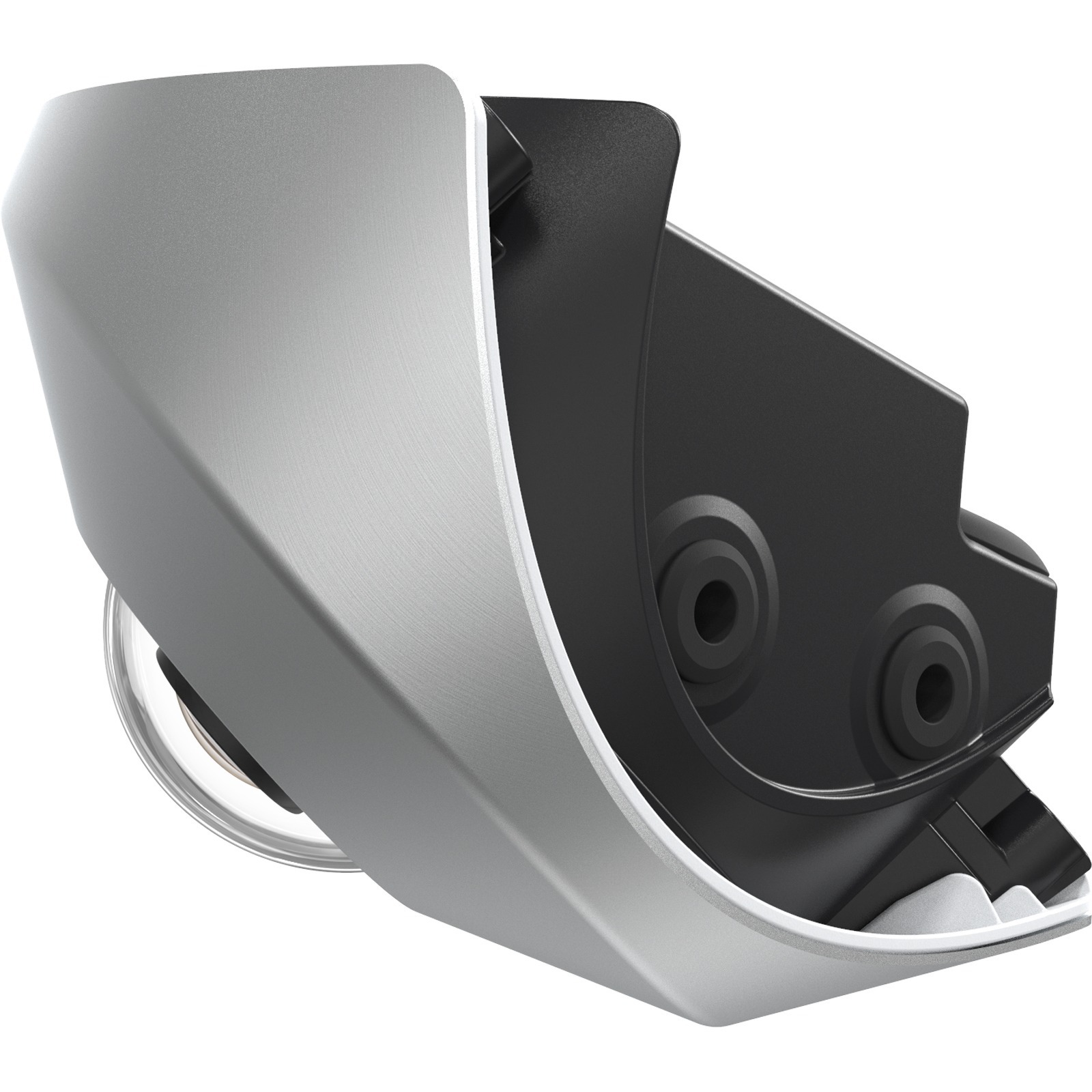

The 3 MP AXIS P9106-V Network Camera is specially designed for out-of-the-box optimized corner-to-corner coverage, at up to 130º horizontally and 95º vertically, without blind spots. It is enclosed in a vandal-resistant (IK10) and dust-and waterproof (IP66) casing. The abrasion- and chemical-resistant front window is easy to clean or replace, for efficient maintenance. AXIS P9106-V Brushed Steel blends in with elegant spaces, such as elevators and commercial interiors. It is compatible with multiple connectivity options, such as PoE, PoE over Coax, or PoE over 2-wire (separate media converters required), to allow installation in environments where infrastructure requirements are unique.
- Corner-mounted camera in elegant brushed steel finish - no visible screws
- Out-of-the-box optimized field of view at 3 MP resolution - no blind spots
- Vandal- and waterproof casing reduces impact of vandalism
- Compatible with PoE over 2-wire devices for elevator installations
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 130° Vertical field of view: 95°
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
- H.264 (MPEG-4 Part 10/AVC)
- MJPEG
- H.264
Maximum Video Resolution:
2016 x 1512
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.80 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/2.4
Exposure
Shortest Shutter Speed:
1/32500 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Corner Mount
- Wall Mount
- Ceiling Mount
- Surface Mount
Form Factor:
Dome
Durability:
- Vandal Resistant
- Dust Proof
- Water Proof
Product Color:
Brushed Steel
Height:
3.7"
Width:
5.8"
Depth:
4.9"
Weight (Approximate):
1.74 lb
Environmental Conditions
Minimum Operating Temperature:
5°F (-15°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
85%
Miscellaneous
Features:
- PTZ
- Password Protection
- HTTPS Encryption
- Motion Detection
- Tampering Alarm
- Auto Tracking
- SD Card Local Storage
- Privacy Masking
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
- P9106-V Network Camera Brushed Steel
- Connector Guard
- Installation Guide
- Drill Template
- Windows Decoder 1-User License
- Extra Screw Gaskets
- Extra Cable Gaskets
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
Thailand
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
7331021064928
EAN:
7331021064928
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 01553-001 Security Camera is also known as
AXC-01553001
