Axis 01046-001 Security Camera

Part Number: 01046-001

Model: Parts

$1,394.12

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recording Formats

Full HD

HD Recording

Yes

Night Vision

Yes

Night Vision Distance

196.85 ft

Product Description:

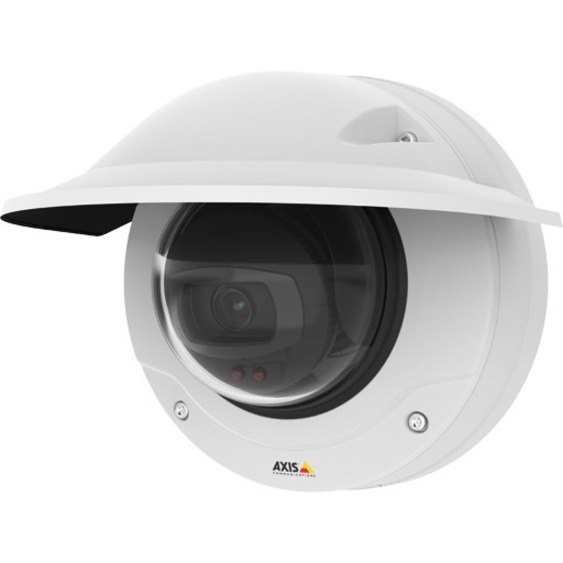

Security Camera, Axis Q3515-LVE, 22mm Network Camera, Day And Night Fixed Dome With Support For Forensic WDR, Light finder And Optimizedir Illumination. Discreet, Dust And IK10 Vandal-Resistant Indoor Casing. Varifocal 9-22 mm P-Iris Lens With Remote Zoom And Focus For Installation Or Monitoring. Multiple, Individually Configurable H.264 And Motion Jpeg Streams. 1080P At 30 Fps With WDR And Light finder And Up To 120 Fps Without. Zip stream For Reduced Bandwidth And Storage. Fence Guard, Motion Guard, Video Motion Detection, Shock Detection And Active Tampering Alarm. Two-Way Audio And Audio Detection. Supervised Inputs, Digital Outputs For Alarm, Event Handling. Electronic Image Stabilization. Memory Card Slot For Optional Local Video Storage. Power Over Ethernet Or 8-28V DC Power With Redundancy. Midspan And Power Supply Not Included. Includes Mounting Bracket For Wall Or Junction Boxes.

Explore all Axis Accessories

Add to Quote

Detailed Specs

Technical Information

Recording Formats:

Full HD

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

196.85 ft

Night Vision Type:

Infrared

Display & Graphics

Image Sensor Type:

RGB CMOS

Color Supported:

Color

Field of View:

Horizontal field of view: 36°-15° - Vertical field of view: 19°-9°

Video

Video Formats:

H.264
H.264 (MP)
H.264 BP
H.264 HP
Motion JPEG

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

120 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

9 mm

Maximum Focal Length:

22 mm

Lens Included:

Yes

Maximum Aperture:

f/1.6

Optical Zoom:

2.4x

Exposure

Shortest Shutter Speed:

1/66500 Second

Longest Shutter Speed:

2 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

28 V DC

Physical Characteristics

Mount Type:

Conduit Mount
Ceiling Mount
Pole Mount
Wall Mount
Pendant Mount
Bracket Mount
Corner Mount
Backbox Mount
Recessed Mount

Form Factor:

Dome

Durability:

Vandal Resistant
Water Resistant
Dust Resistant
Impact Resistant

Color Family:

White

Product Color:

White

Height:

4.9"

Diameter:

6.4"

Weight (Approximate):

3.09 lb

Environmental Conditions

Minimum Operating Temperature:

14°F (-10°C)

Maximum Operating Temperature:

122°F (50°C)

Maximum Operating Humidity:

85%

Miscellaneous

Features:

Wide Dynamic Range
Electronic Image Stabilization
Built-in Infrared Illuminator
Built-in IR LED
Removable IR Cut-off Filter
White Balance
Auto Gain Control
Privacy Masking
Password Protection
HTTPS Encryption
SD Card Local Storage

Package Contents:

Q3515-LV Network Camera
Installation Guide
Windows® Decoder 1-user License
Drill Hole Template
Cable Gaskets
I/O and DC Connectors
Connector Guard
Resistorx® T20 L-Key
Mounting Bracket

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP52

NDAA Compliant:

Yes

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 7331021058439

EAN: 7331021058439

UNSPSC: 46171610
