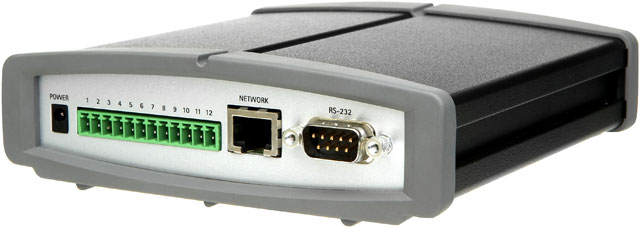

Axis 241Q Network Video Server

The AXIS 241 Video Servers are your ultimate solution for converting analog surveillance systems into high-performance IP-based solutions. Designed for effective surveillance and remote monitoring, these video servers support one or four analog streams, depending on the model. With built-in motion detection and advanced functions like simultaneous streaming of Motion JPEG and MPEG-4, the AXIS 241 ensures seamless integration and optimized network utilization. Security features such as HTTPS encryption and user access levels provide peace of mind, while two-way audio capabilities enhance communication for those critical moments.

Key features:

• High-quality video: De-interlaced video at 30/25 fps.
• Multiple streaming options: Simultaneous Motion JPEG and MPEG-4.
• Integrated audio: Two-way audio support (AXIS 241QA/SA).
• Advanced security: HTTPS encryption, IP address filtering, and user access control.
• Robust event management: Image upload, alarm notifications, and pre/post-alarm buffering.

Specifications:

• Video Compression: Motion JPEG, MPEG-4 Part 2 (ISO/IEC 14496-2).
• Resolutions: Up to 768x576 (PAL); minimum of 160x120 (NTSC).
• Frame Rate: Up to 30/25 fps at various resolutions.
• Video Outputs: Analog composite video (NTSC/PAL).
• Audio: G.711 PCM, G.726 ADPCM.
• Networking: Ethernet 10BaseT/100BaseTX, RJ-45.
• Operating Conditions: 5 - 50 °C, 20-80% RH.
• Power: 9 V DC, maximum 8 W.
• Dimensions: 42 x 140 x 155 mm (1.7" x 5.5" x 6.1").
• Weight: 540 g (1.2 lbs) excluding power supply.
