Axicon V17100S Barcode Verifier
Part Number:
V17100S
Model:
7000 Series
Full specifications (PDF)

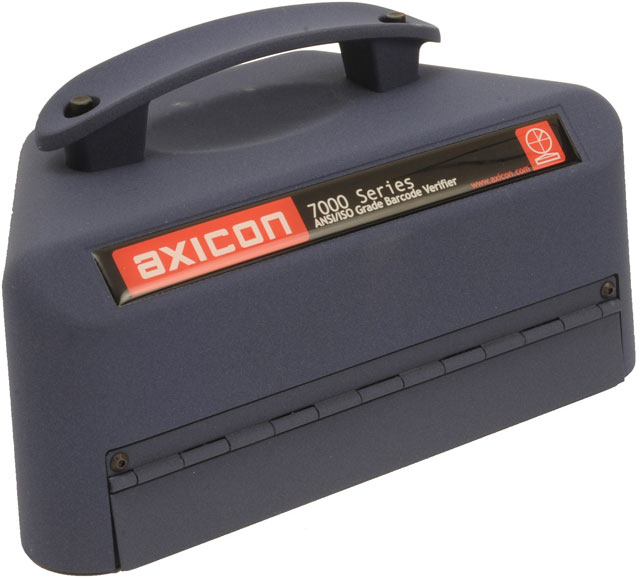

Axicon 7000 Series Barcode Verifier Model Overview
The Axicon 7000 series Barcode Verifier is an essential tool for ensuring barcode quality and compliance with ISO/ANSI standards. Perfect for users working with UCC/EAN-128 and ITF-14 barcodes, this CCD-based verifier easily connects to your computer via USB, making it simple to operate. With an intuitive design that minimizes user error, it guarantees exceptional accuracy while contributing to your ISO 9000 quality control methods. Receive free lifetime software updates to keep your verification process at its best.
Key Features
Specifications
Key Features
- ISO/ANSI Verification Standards: Complies with ANSI x3.182 and ISO/IEC 15416-1.
- Easy Setup: Plug-and-play USB connection with straightforward software installation.
- Multi-Symbology Support: Verifies various barcodes including EAN-8, EAN-13, ITF-14, and more.
- Automatic Variable Aperture: Adjustable sizes (8, 10, & 20 mil) to fit different symbologies.
- Comprehensive Analysis: Provides detailed results including grade, check digit validation, and structure checking.
Specifications
- Dimensions: 215 x 120 x 95 mm (125 mm including handle)
- Weight: 1 kg
- Construction: Cast aluminum and black ABS plastic
- Power: Current Draw - 180mA
- Nominal Measuring Aperture: 8mil, 10mil, and 20mil
- Wavelength of Light: 660 nanometers
- Interface: USB
- Software Compatibility: Apple Macintosh OS X 10.2 or later
Brand
Axicon
Model
7100-S
