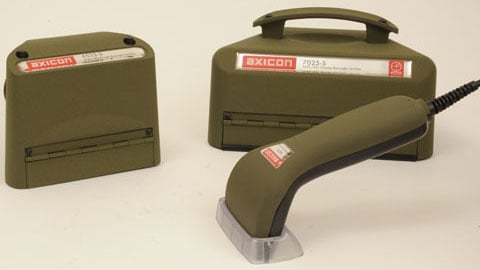

Axicon 6525-S Barcode Verifier
Axicon 6525-S -
The Axicon 6525-S is designed for all barcodes where a 5, 6, 10 or 20mil aperture is mandatory (such as EAN8, EAN13, UPC-A, UPC-E, GS1-128 and ITF-14), up to 125mm width including quiet zones. For the user who needs to verify barcodes on both consumer unit (point of sale) products and also the smaller sized traded pack barcodes, typically those printed Thermal or thermal transfer to labels).
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$10.00
Get help from a Barcoding Expert!
Accessories For Axicon 6525-S Barcode Verifier
Axicon 6525-S Barcode Verifier Options
-
Axicon 6525-S Barcode Verifier
Continuous scanning verifier for 1D linear barcodes up to 4.9" (USB2)$4,550.00 -
Axicon V6525S-IP50 Barcode Verifier
IP50 Rated 1D linear verifier for continuous scanning$5,495.00 -
Axicon V6525Sc Barcode Verifier
Axicon 6025-S/6525-S combination kit for continuous scanning -
Axicon V6525S-IP65 Barcode Verifier
IP65 Rated1D linear verifier for continuous scanning
Axicon 6525-S Barcode Verifier Model Overview
The Axicon 6525-S Barcode Verifier is an essential tool for ensuring the accuracy and reliability of various barcode formats including EAN8, EAN13, UPC-A, UPC-E, and more. Designed for ease of use, this verifier minimizes user errors and potential product damage while providing precise verification results. With its innovative "Continuous Scan" feature, users can achieve up to 100 scans per second, obtaining averaged results in less than a second for enhanced productivity. Ideal for both consumer unit products and smaller traded pack barcodes, the Axicon 6525-S meets international verification standards, making it a top choice for professionals in retail and logistics.
Key Features
- ISO/ANSI Verification Standards
- Up to 100 Scans per Second
- Ideal for GS1 Databar Stacked Codes
- Multi-Language User Interface
- USB2 Connectivity
- Perfect for Barcodes with Small Height
Specifications
- Symbologies Verified: EAN-8, EAN-13 (with/addons), ITF-14, GS1-DataBar, GS1-128, and more
- Dimensions: 145 x 113 x 128mm (5.7" x 4.4" x 5")
- Weight: 675g (23.8oz)
- Construction: Cast Aluminium and ABS plastic
- Power Consumption: 150mA from USB host
- Nominal Measuring Aperture: 5mil, 6mil, 10mil, 20mil
- Wavelength of Light: 660 nanometers
- Operating Temperature: 10° to 40°C
- Storage Temperature: -20° to 70°C
- Warranty: 2 years parts and labour return to bench
