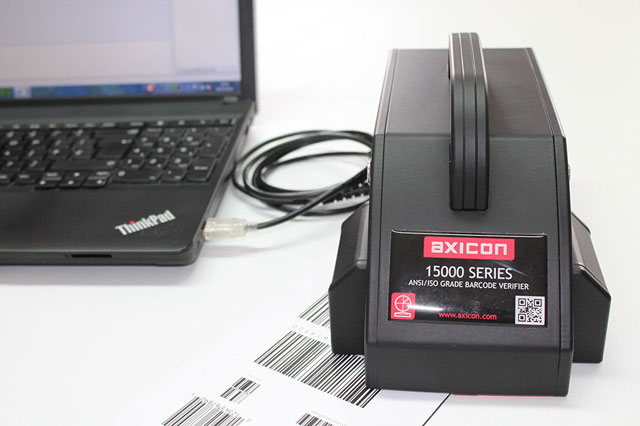

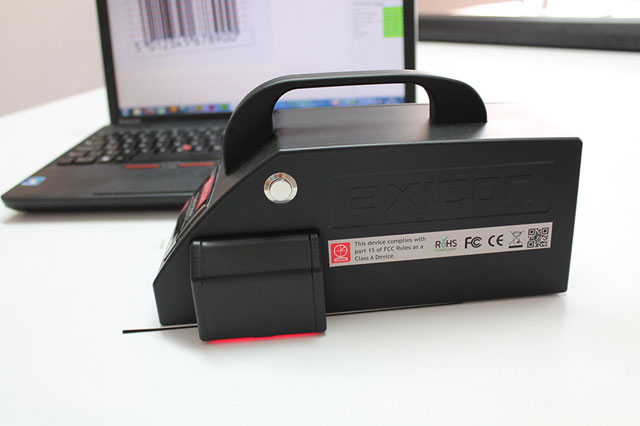

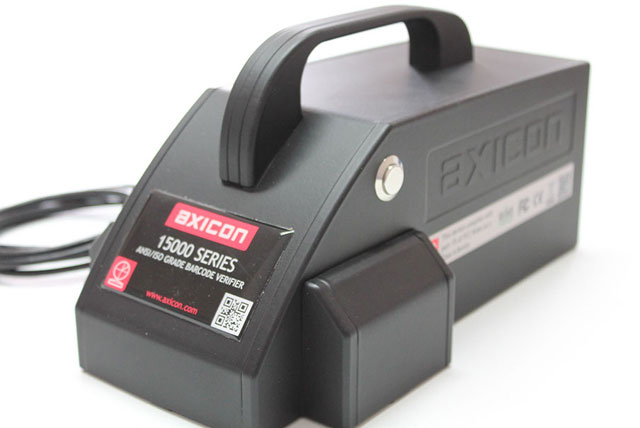

Axicon 15000 Barcode Verifier
Axicon 15000 -
The Axicon 15000 barcode Verifier has been specifically designed to read both linear and 2D barcodes (whether matrix or stacked). The 15000 can verify linear barcodes up to a maximum length of 52mm (2.0\) including Quiet Zones, and 2D barcodes should have a maximum size of 52mm x 31mm (2.0\" x 1.25\") including quiet zones. The system consists of a state of the art array imaging camera and application software."
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$5,995.00
Get help from a Barcoding Expert!
Axicon 15000 Barcode Verifier Options
-
Axicon 15010 Barcode Verifier
1D/2D Barcode Verifier 2" wide x 1.25" high FOV, special can lighting, 5mil min X$5,995.00 -
Axicon 15000 Barcode Verifier
15000 Linear & 2D Verifier
Axicon 15000 Barcode Verifier Model Overview
The Axicon 15000 Barcode Verifier is a premier solution designed for the accurate reading and verification of both linear and 2D barcodes, ensuring adherence to ISO/ANSI standards. With the ability to verify linear barcodes up to 52mm (2.0") and 2D barcodes up to 52mm x 31mm (2.0" x 1.25"), this verifier utilizes advanced imaging technology and comprehensive reporting tools. Its user-friendly installation ensures that businesses can efficiently maintain the highest quality control standards for their products, significantly enhancing traceability and operational efficiency.
Key Features
- ISO/ANSI Verification Standards
- Automatic Variable Aperture
- USB 2 Connectivity - powered through USB
- AI Data Content Checker for various GS1 barcodes
- Multi-Language User Interface
- Lifetime Free Software Updates
Specifications
- Dimensions: 250 x 140 x 130 mm (9.8" x 5.5" x 5.1")
- Weight: 1.36 Kg (48 oz)
- Construction: Aluminum and ABS plastic
- Interface: USB 2.0 or higher
- Power Consumption: 360mA via USB
- Nominal Measuring Aperture: 5mil to 20mil
- Wavelength of Light: 660 nanometers
- Environmental:
- Operating Temperature: 10° to 40°C
- Storage Temperature: -20° to 70°C
- Relative Humidity: 25% to 80% @ 40°C non-condensing
- Warranty: 2 years parts and labor return to bench
