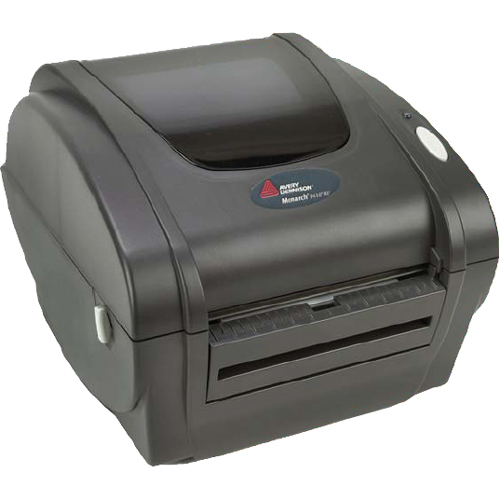

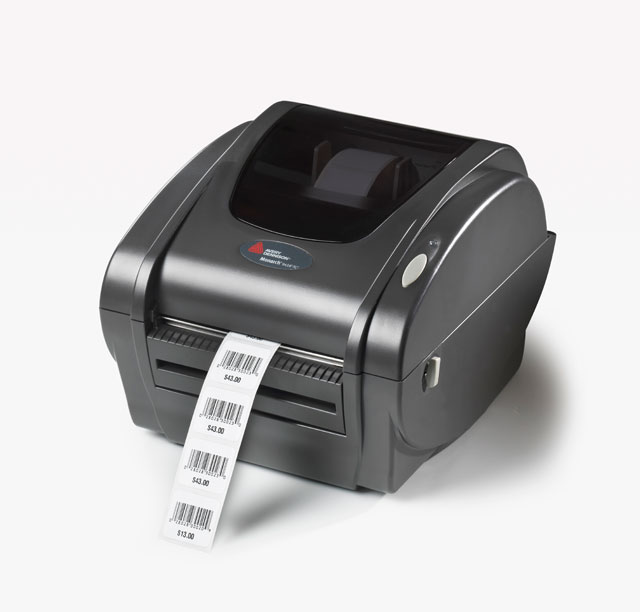

Avery-Dennison 9416 XL – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: M09416XL
Model: 9416 XL
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$724.41

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printing Technology
Direct Thermal
Print Resolution
203 dpi

Product Description:

  Monarch Monarch 9416 XL Direct Thermal Printer - Monochrome - Desktop - Label Print - USB - Serial - Peel Facility - 4.09" Print Width - 5 in/s Mono - 203 dpi - Label, Tag, Receipt, Continuous Label, Die-cut Label, Black Mark, Roll Fed, Fanfold, Linerless
Explore all Avery-Dennison 9416 XL Barcode Label Printers
Add to Quote
Avery-Dennison M09416XL Barcode Label Printer
Avery-Dennison M09416XL Barcode Label Printer
Avery-Dennison M09416XL Barcode Label Printer
Avery-Dennison M09416XL Barcode Label Printer Avery-Dennison M09416XL Barcode Label Printer Avery-Dennison M09416XL Barcode Label Printer
Full specifications (PDF)

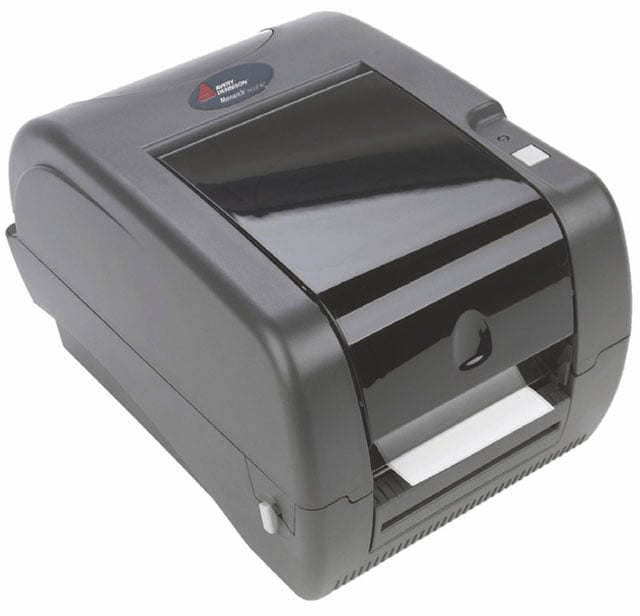

Avery-Dennison 9416 XL Barcode Label Printer Model Overview

The Avery Dennison® Monarch® 9416XL Printer is your go-to solution for efficient label printing in space-constrained environments like retail back rooms and shipping docks. Its compact design enables it to fit seamlessly into tight spaces while delivering high-speed printing, making it perfect for shipping labels, small signs, and receipts. With options for both thermal direct and thermal transfer supplies, and the ability to handle various media types, the 9416XL enhances productivity and simplifies your labeling tasks.
Key features:
  • High-speed printing: Prints at speeds up to 4 ips (3 ips at 300 dpi).
  • Flexible supply choice: Supports non-indexed, continuous, die-cut, black mark, roll, and fanfold media.
  • Versatile connectivity: Ethernet, USB, Serial, and Centronics/Parallel Port options available.
  • Memory capabilities: Equipped with 4 Mb Flash and 8 Mb SDRAM for faster print jobs.
  • Two printing resolutions: Choose between 203 dpi and 300 dpi.

Specifications:
  • Printer Types: Thermal Transfer and Thermal Direct
  • Dimensions (Thermal Transfer): Height: 7.4" (118 mm), Width: 8.38" (213 mm), Depth: 12.36" (314 mm), Weight: 6.3 lbs (2.86 kg)
  • Dimensions (Thermal Direct): Height: 6.3" (168 mm), Width: 8.25" (210 mm), Depth: 9.4" (239 mm), Weight: 4.1 lbs (1.9 kg)
  • Processor: 32-bit RISC Processor
  • Memory: 4 Mb Flash, 8 Mb SDRAM, SD card reader
  • Printer Language: MPCLII/EPL2 (auto detect)
  • Connections: Serial, Centronics/Parallel Port, USB
  • Media Width: 0.78" - 4.4" (20-112mm)
  • Media Thickness: 2.36 - 6.3 mil
  • Core Diameter: 1"-3" (25.4mm -76.2mm)
  • Printer Warranty: One (1) year parts and labor
  • Printhead Warranty: 1 million inches or six months, whichever comes first
  • Barcode Types: Supports various barcode formats, including UPC, EAN, and Code 39.
Avery-Dennison M09416XL Barcode Label Printer Overview

The Monarch 9416 XL printer is available in thermal direct or thermal transfer, is versatile, has a small footprint and fits almost anywhere.

In the store, your sales associates can print out a new label or tag instantly, speeding returned merchandise back to the floor or returning it to the distribution center or vendor.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • UPC-A+5
  • UPC-A+2
  • UPC-E+2
  • UPC-E+5
  • EAN-13+2
  • EAN 128
  • Code 39
  • Codabar
  • NW-7
  • Code 128 UCC
  • Code 93
  • Code 16K
  • Code 11
  • MSI
  • PDF-417
  • Micro PDF-417
  • POSTNET
  • Maxi Code
  • Plessey
  • EAN-13+5
Peel Facility:
Yes
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Memory Card Slot:
Yes
Memory Card Supported:
SD
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Label
  • Tag
  • Receipt
  • Continuous Label
  • Die-cut Label
  • Black Mark
  • Roll Fed
  • Fanfold
  • Linerless
Maximum Roll Diameter:
1.50"
Label Core Size:
1"
Fonts & Emulation
Language Emulation:
  • EPL2
  • MPCLII
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.3"
Width:
8.3"
Depth:
9.4"
Weight (Approximate):
4.10 lb
Miscellaneous
Platform Supported:
PC
Item Numbers
GTIN: 0088563942241
UPC: 088563942241
EAN: 0088563942241
UNSPSC: 45101512
